Amazone Pantera 4502 - 5.15.14 Covers and Compartments Outside the Cabin

Structure and function, carrier vehicle
Pantera 4502 CP1_E3A_E4
BAG0166.5 12.18
85
5.15.14 Covers and compartments outside the cabin
Left side:

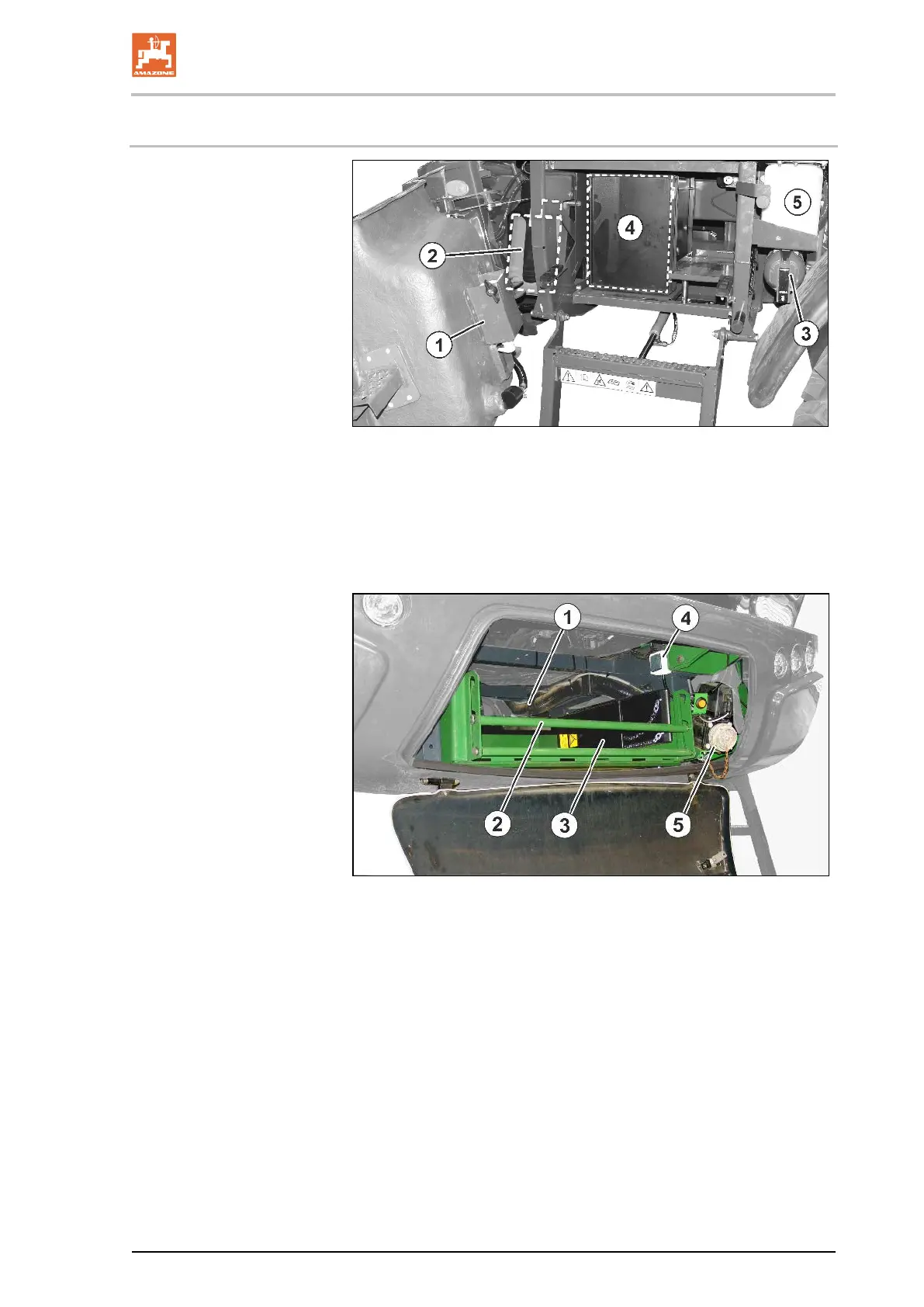

Fig. 51
(1) Soap dispenser
(2) Fresh water tank
(3) Fire extinguisher
(4) Storage box
(5) Windscreen wiper water container
Front:
Fig. 52
(1) Extraction hose storage (maximum payload 100 kg)
(2) Removable protective brace
(3) Wheel chock
(4) Switch for the lighting
(5) Pressure filling with stop button (option)
