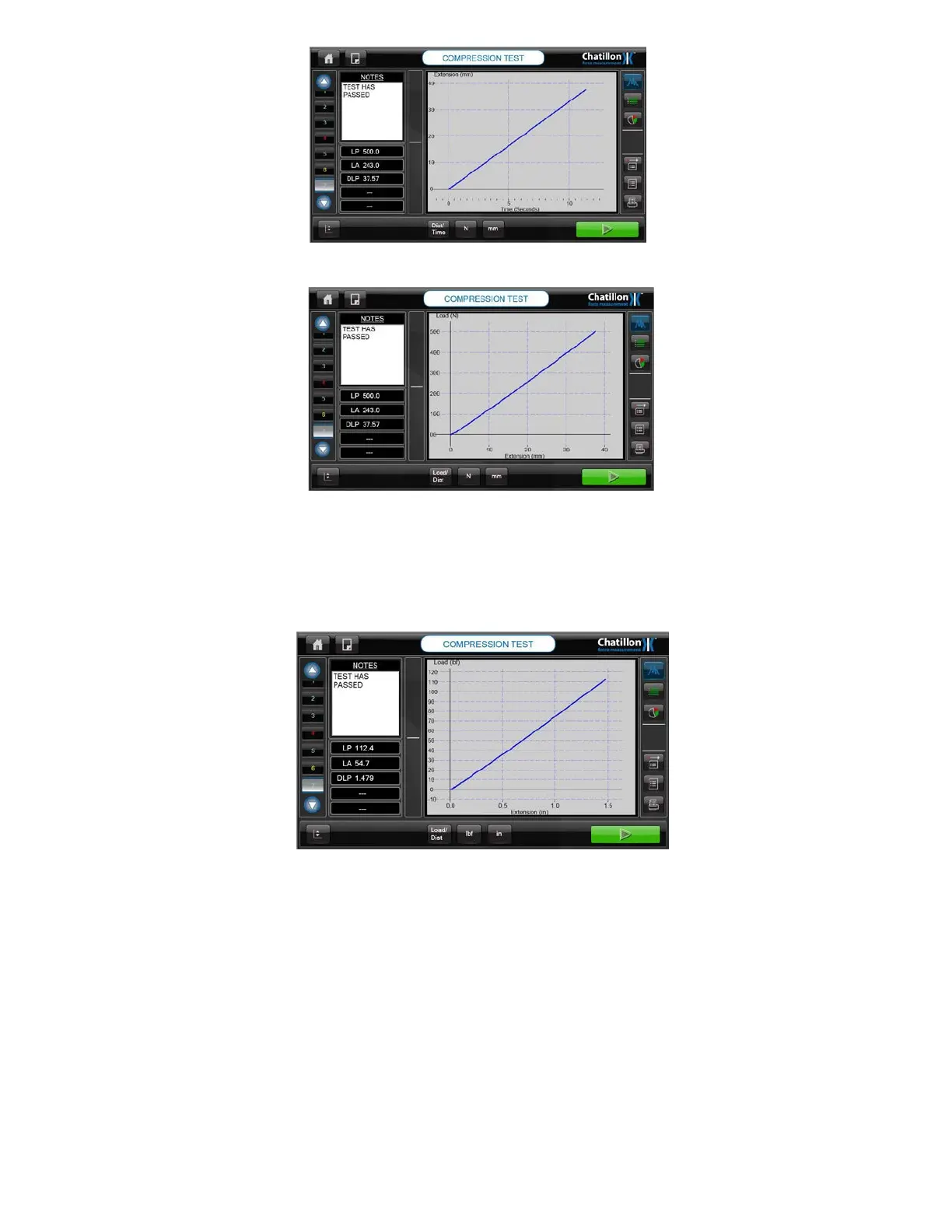

Pressing the "CHANGE AXES" button again changes the graph to show Load / Distance.
The graph and measured results shown above are displayed using the previously defined
default Load Axis Unit of "N" and the previously defined default Distance Axis Unit of "mm".
The graph load axis and load results will cycle through the available Load Axis units by
repeatedly pressing the "CHANGE FORCE UNITS" button.
The graph distance axis and distance results will cycle through the available Distance Axis
units by repeatedly pressing the “CHANGE DISTANCE UNITS" button.
CS User Manual
81
