User Manual California Instruments
124 CSW Series
8.1.1.4 Front Panel Entry
To perform a test from the keyboard, from the MENU 2 screen, select the APPLICATIONS
screen. The APPLICATIONS screen will appear as shown in Figure 8-1.

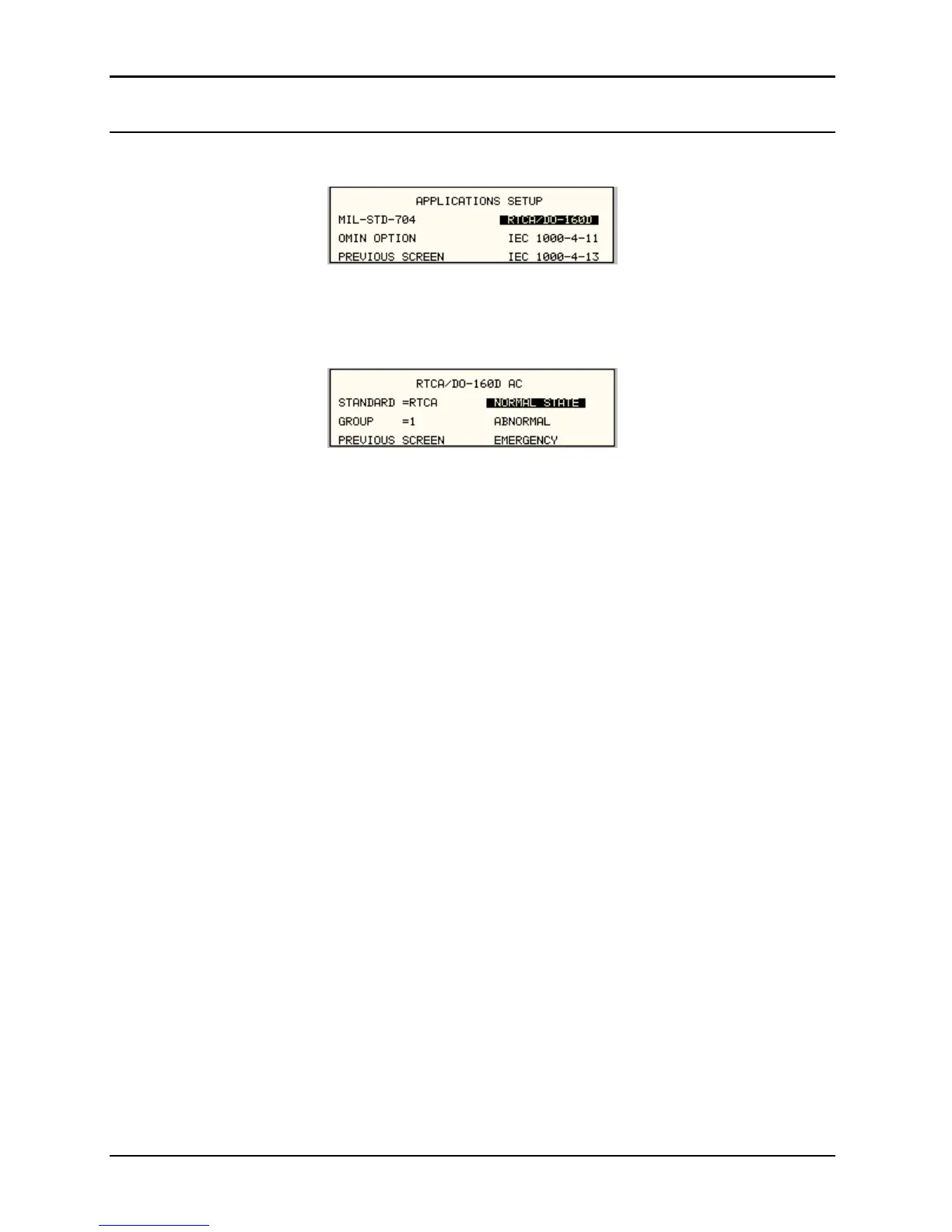

Figure 8-1: Application Menu
Scroll to the RTCA/DO-160D entry using the up and down cursor keys. Press the ENTER key to
select the RTCA/DO 160D main menu. The screen will appear as shown in Figure 8-2.
Note: The user has to turn on the Output relay before starting a test.
Figure 8-2: DO160 Main Menu
