User Manual
California Instruments
128
CSW
Series
FREQUENCY MODULAT
ION
This test requires a numeri
c value equal to the modulation rate in Hz. Thi
s value must be
between 0.01 Hz and 100 Hz. Th
e frequency modulation is calculat
ed based on the modulatio
n
rate as defined in Figure 8-5. This te
st will last for a minimum of 2 minutes.

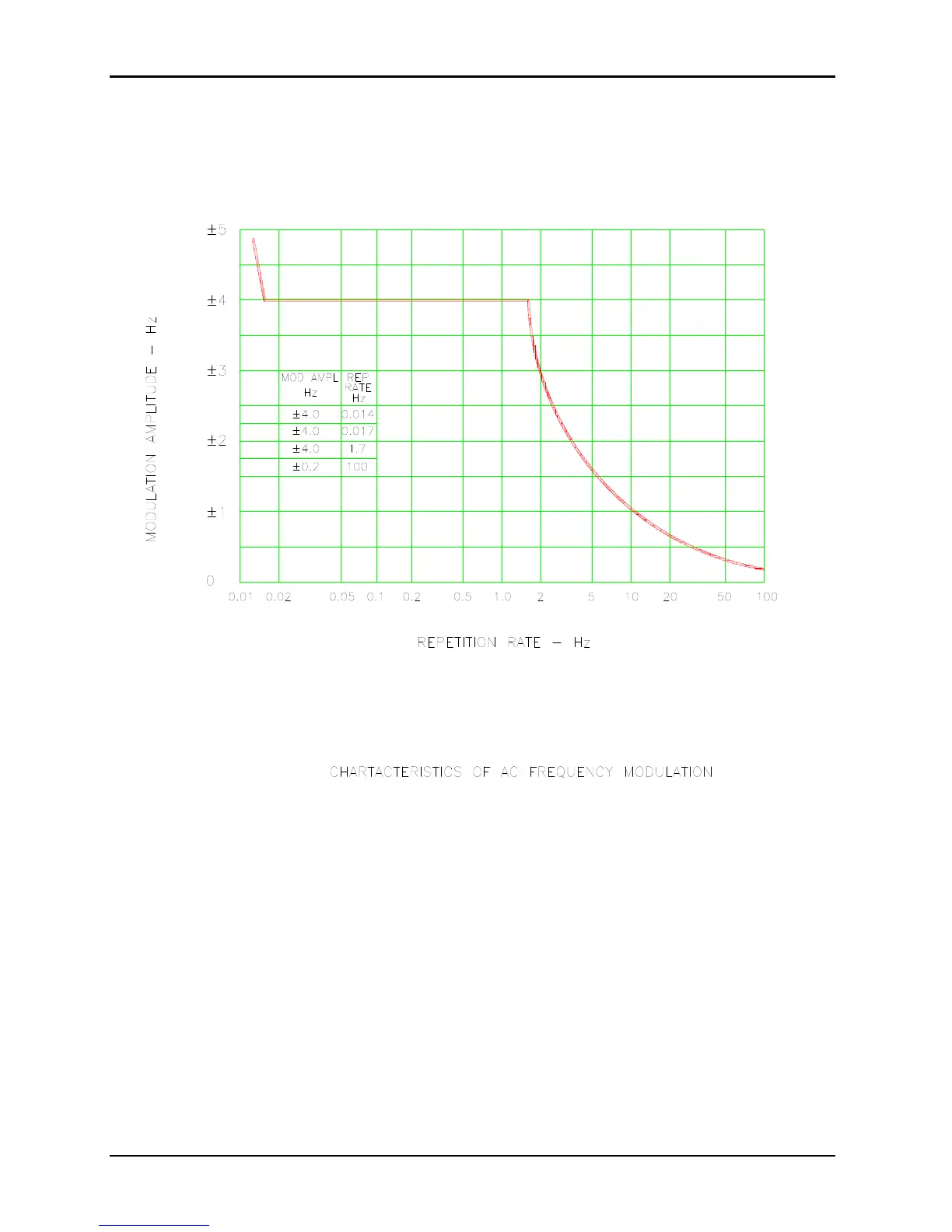

Figure 8-5: Frequency Mod
ulation
127
129
