User Manual California Instruments
172 CSW Series
8.9 WHM Option
8.9.1 General
This section describes the WHM option for the CSW Series Power Source.
8.9.2 Specification
All specifications are the same as the standard CSW Power Source specifications in addition to
the following specifications:
Watt-hour
0-6.000KW 0.01KWH + 0.1% <100Hz
0.02KWH +0.1% 100-500Hz
>6.000KW Times three of the above specification
8.9.3 Local Operation
 From the Menu screen 2, select the APPLICATIONS SETUP 2 screen. The screen will appear
as shown in Figure 8-43. Use the up and down key to position the cursor to the WH METER
field. Press the Enter Key.

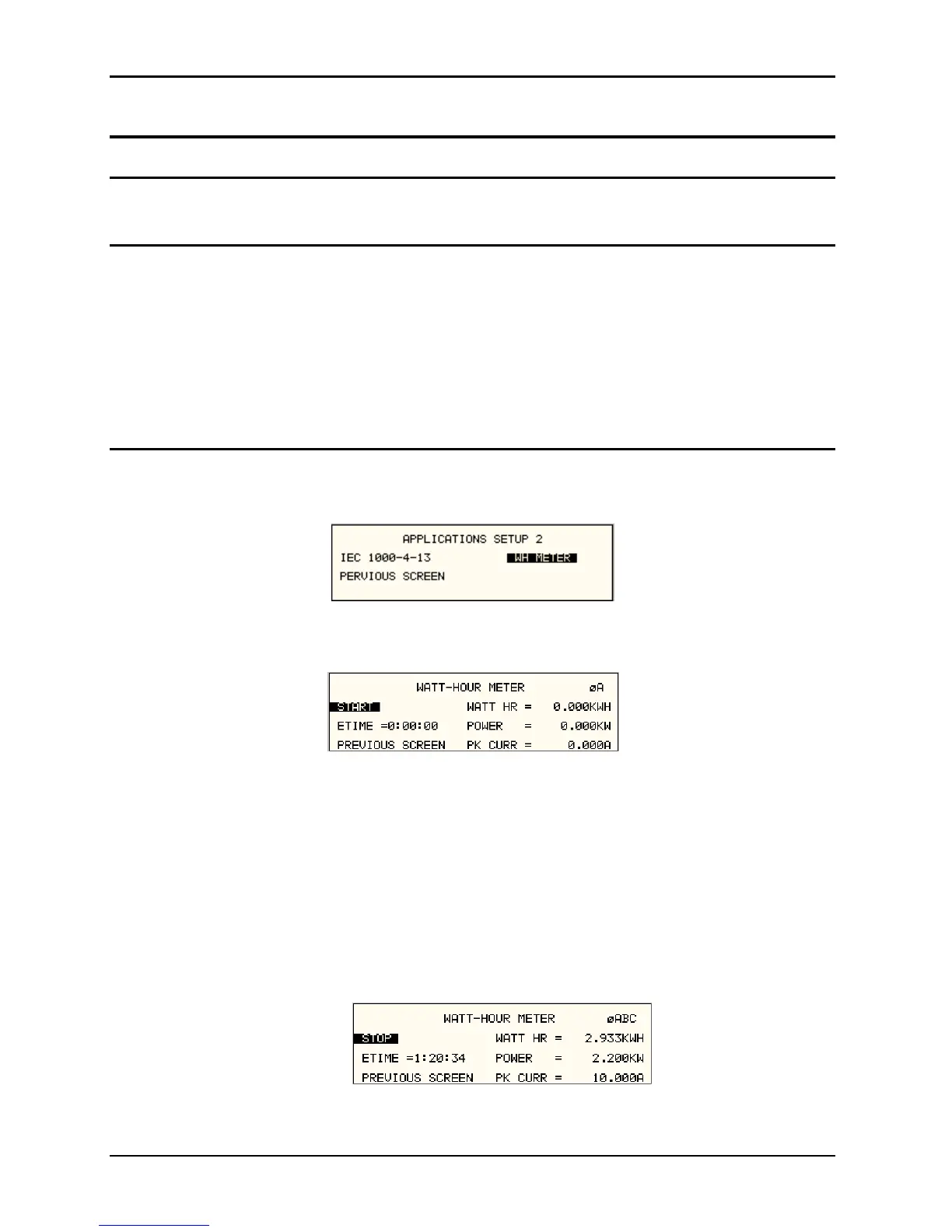

Figure 8-43: Application Screen
 The WATT-HOURS METER screen shown in Figure 8-44 has the following fields:
Figure 8-44 Watt-Hour Meter Screen
START: This field will activate the watt-hour measurements. Moving the shuttle clockwise when
the field is highlighted will activate the watt hour function and the field will change to STOP as
shown in Figure 8-45.
1. ETIME: This field will accumulate the time in hours, minutes and seconds.
2. WATT HR: This field will accumulate the watt-hour in KWH.
3. POWER: This field will report the instantaneous power in KW.
4. PK CURR: This field will report the peak current and will hold the maximum reading.
Figure 8-45: WH-Meter Screen With Function Active
