User Manual California Instruments
CSW Series 49
3.11 Menu Structure
The next few pages show a map of the available menus in the i/CSW Series. There are three
main level (level 1) menus from which all other menus can be reached. Frequently used (level 2)
menus have a short cut key that provides direct access. Examples of such menus are Program,
Measurements, and Waveform. In any case, there are never more than three levels of menus
although some menus may be spread across more than one screen.
3.11.1 MAIN Menus

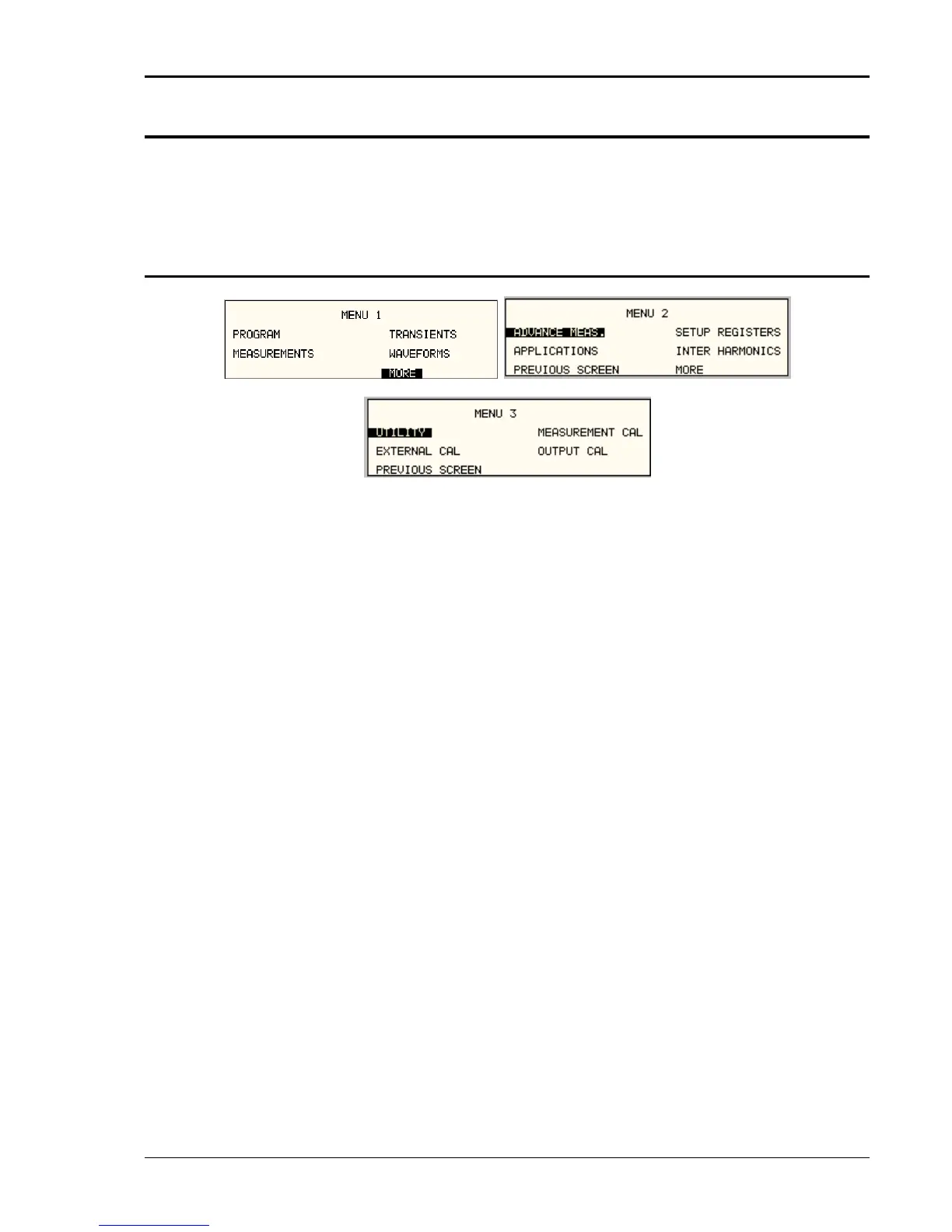

Figure 3-13: Menu 1 through 3
The top-level menu is split in three parts, MENU 1 through MENU 3 to allow spacing between
menu entries. MENU 2 and 3 can be reached from MENU 1 by selecting the MORE entry or by
pressing the MENU key repeatedly, which will toggle from MENU 1 to 2 to 3 and back to 1. The
division of menu choices between the two screens is graphically illustrated in sections 3.11.2
and 3.11.3 by the boxes in level 1. Each box represents one screen. Subsequent screens can
be reached using the MORE entry.
