User Manual California Instruments
CSW Series 35
3.6.5 LAN Interface – RJ45
An optional RJ45 Ethernet 10BaseT connector is located on the rear panel for remote control. A
standard RJ45 UTP patch cord between the AC Source and a network Hub may be used to
connect the AC source to a LAN. For direct connection to a PC LAN card, a crossover RJ45
cable is required. Consult your network administrator for directions on connecting the AC source
to any corporate LAN.
If the –LAN Ethernet interface option is present, the MAC Address (Media Access Control) of the
Ethernet port is printed on the serial tag of the power source. The serial tag is located on the
rear panel of the unit.
For information on how to set up a network connection or a direct PC connection using the LAN
interface, refer to the CSW Series Programming Manual P/N M162084-03 distributed in Adobe
PDF format on CD ROM CIC496.
LAN
Pin Ethernet TPE
10BaseT/100BastT/1000BaseT
EIA/TIA 568
EIA/TIA 568B
Crossover
1 Transmit/Receive Data 0 + White with green stripe White with orange stripe
2 Transmit/Receive Data 0 - Green with white stripe or
solid green
Orange with white stripe or
solid orange
3 Transmit/Receive Data 1 + White with orange stripe White with green stripe
4 Transmit/Receive Data 2 + Blue with white stripe or
solid blue
Blue with white stripe or
solid blue
5 Transmit/Receive Data 2 - White with blue stripe White with blue stripe
6 Transmit/Receive Data 1 - Orange with white stripe
or solid orange
Green with white stripe or
solid
7 Transmit/Receive Data 3 + White with brown stripe or
solid brown
White with brown stripe or
solid brown
8 Transmit/Receive Data 3 - Brown with white stripe or
solid brown.
Brown with white stripe or
solid brown

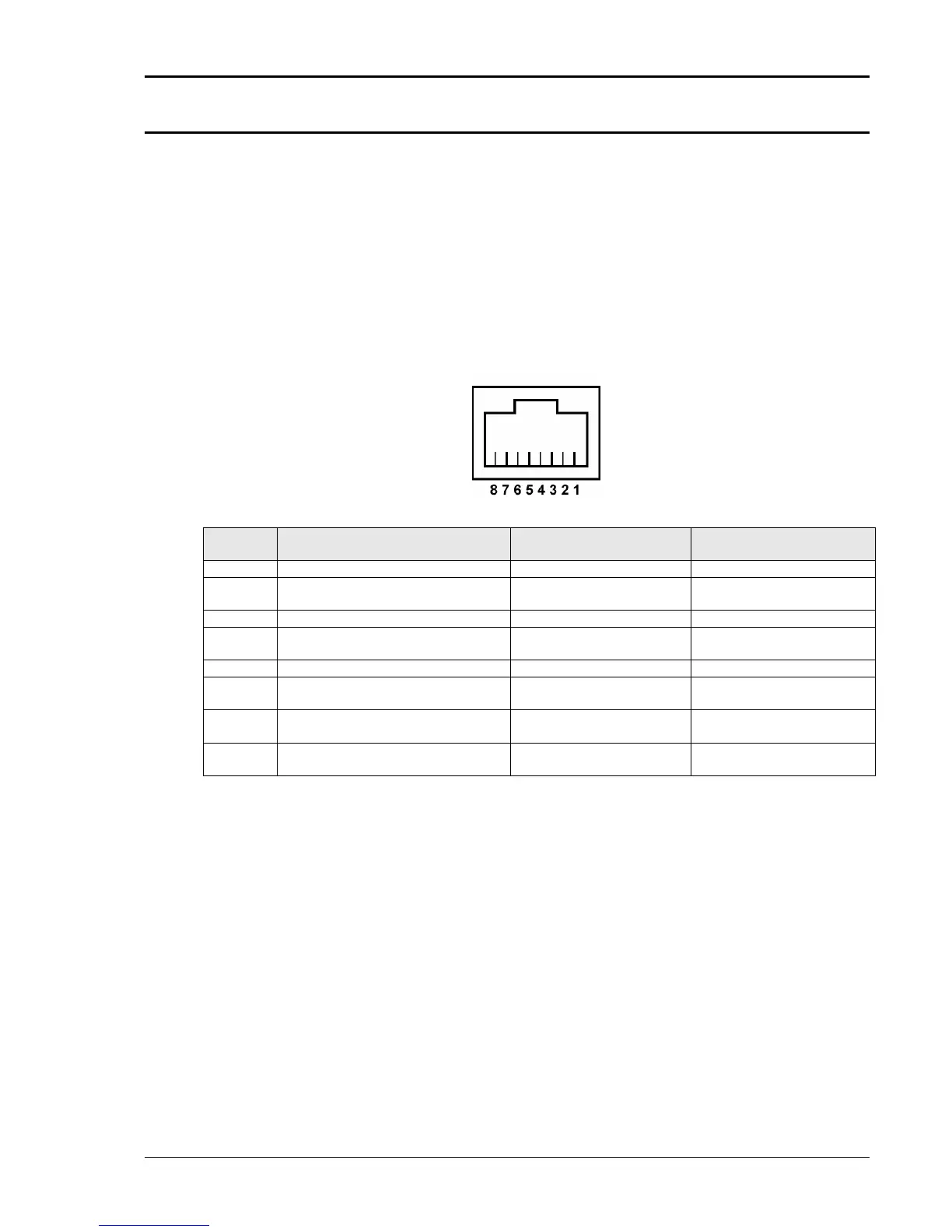

Table 3-5: RJ45 LAN Connector pin out.
