AMETEK CTS UCS 200N
Manual for Operation V 2.41 11 / 54

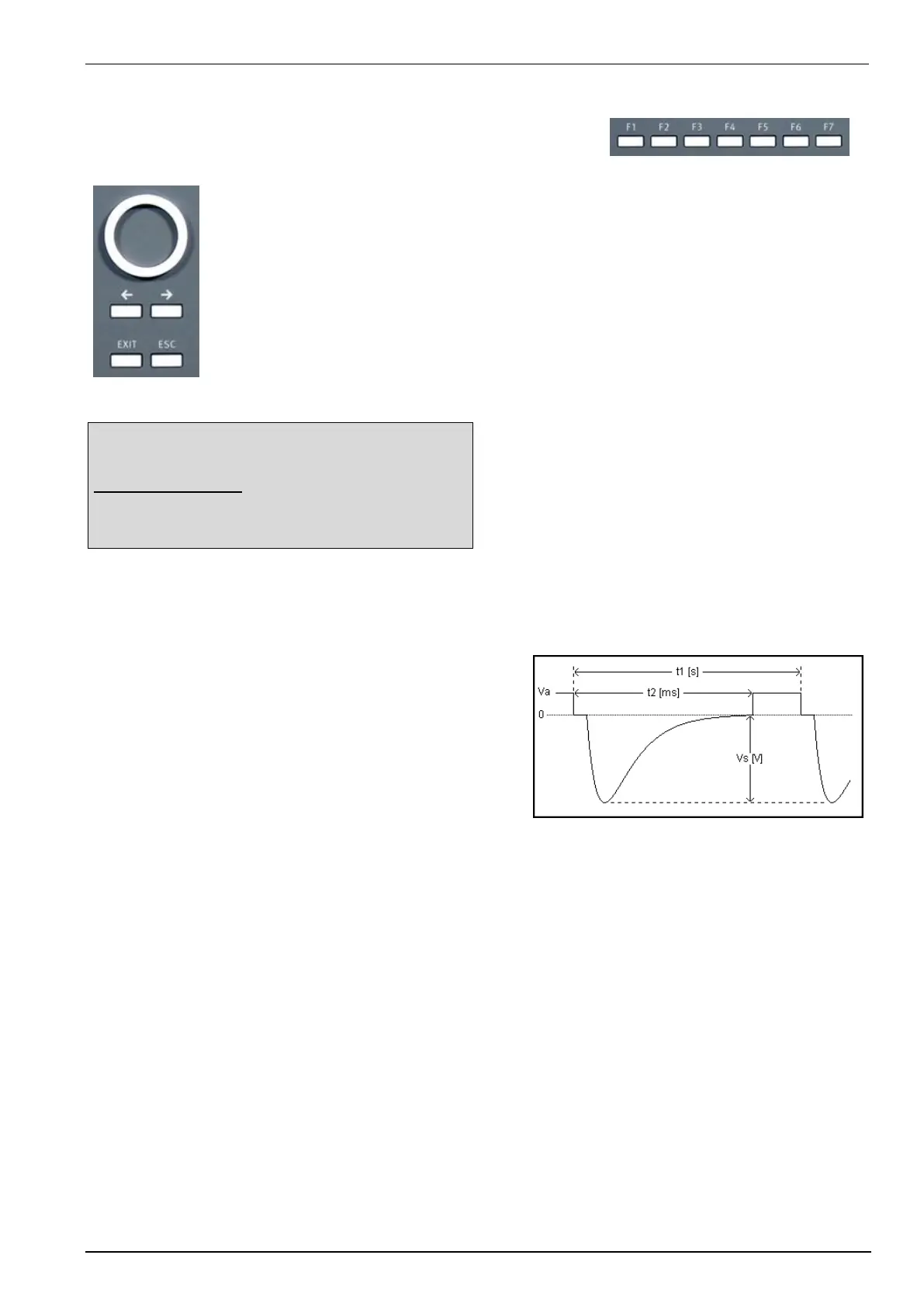

The simulator is operated by an easy menu control system. Seven
function keys are available to select parameters and functions. All
functions are indicated on the display; max. 8 lines and 40 characters.
The selected parameter is blinking and can be changed by turning the knob (incr./decr.).
➔ : The digit to be changed can be selected with the cursor (➔).
- Setted values are direct indicated on the screen.
- Status on the bottom lines shows the desired status after pressing the function key.
ESC : ESC will take you back to the previous level in the menu and set the displayed
values. The latest settings are stored automatically and will be recalled when the
menu is selected again.
EXIT : The firmware will reset to the main screen.
Micro Pulses 1, 2
Burst Pulses 3a, 3b
Freestyle
The serial number and the version number SWN are
used for traceability reasons. These numbers are
listed in the test reports and calibration certificates.
Automotive Transient Generator
V 1.04a16 SWN : 031016
These numbers also are listed within the test reports
generated by the iso.control software
The following short terms will be used within the next pages:
Type of pulse to be generated
Polarity of the generated pulse
Internal source resistance
Repetition rate of the generated pulses
Off time of the battery supply voltage
Trigger mode; AUTO, MAN or EXT
Number of pulses to be generated
General parameter restrictions:
Repetition time t1 The minimum repetition time t1 is limited by the power capability of the charging rectifier.
The pulse repetition time t1 depends on the charging voltage with the following restrictions:
20V – 150V 0.2s
155V – 400V 0.5s
405V – 600V 1.0s
Switch Off time t2 For protect the device at negative pulse, the “batteries off time” to or (t2) must be longer
than the pulse duration (td).
MAN / EXT Trigger The repetition time is limited by the setting of the repetition time t1
