AMETEK CTS UCS 200N
Manual for Operation V 2.41 38 / 54

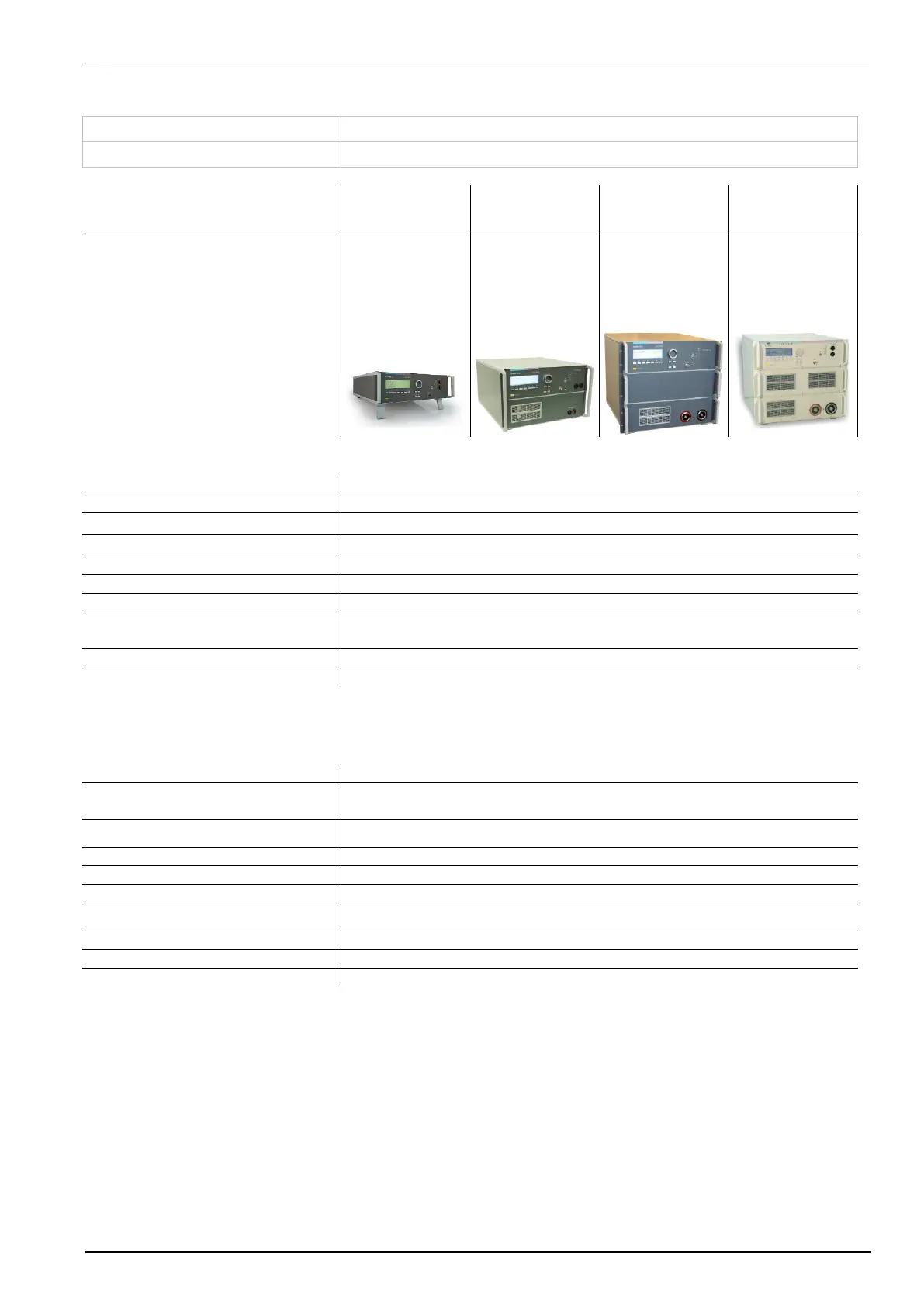

7.3.
Coupling Network
DC supply voltage
max. 80V
Options
UCS 200N50x
UCS 200N100x
UCS 200N150x
UCS 200N200x
DC current
50A
100A
150A
200A
Inrush current 500ms
100A
150A
--
--
Weight
25kg
29.2kg
35.35kg
approx. 35kg
Dimension UCS & CN
19” 3HU
19” 6HU
19” 9HU
19” 9HU
Input
DC power supply +/- and pulse
VDS 200x or external dc supply
Pulse 5, 7 (ISO, Ford, Chrysler)
LD 200N generator
Pulse A1, B1 and D1 (Jaso)
Control
Control cable from external generator (Load Dump / MPG)
Output
DUT supply
80VDC
50A, 100A, 150A, 200A (depending on model)
Coaxial output
To connect external coupling devices as capacitive coupling clamp
7.4.
General
Power mains supply
230V/115V, 50/60Hz, less than 75W
Fuse
2 A slow blow 230V
4 A slow blow 230V
Safety
Safety circuit
External interlock capability
Warning lamp
voltage free contact max. 250V 5A
Design
per IEC 1010, EN 61010
Interfaces
USB interface
Parallel IEEE
Address 1-31
=> Not relevant data for the standards can be changed by the manufacturer <=
