User Test Routines
The user can program, save and recall his own specific test routines. The next pages shows the selection of the
functions. After selection the last used test parameters will be indicated on the display.
Customized test routines
The software controls user test routines according to the specification of the user. All limitations are the same as
defined under Quick Start.

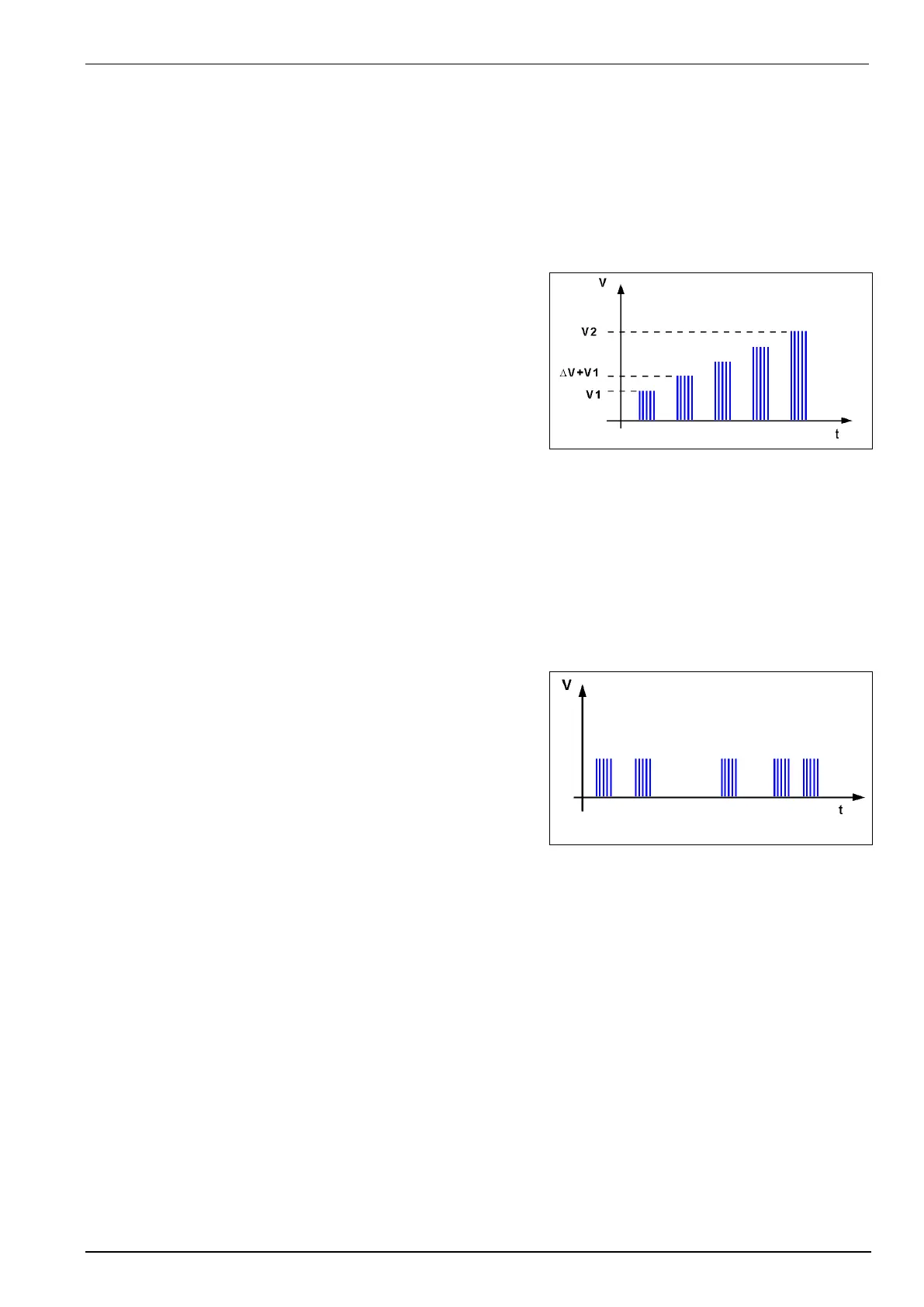

Voltage change after T by V The test voltage is increased
from V1 to V2 by steps of V after the defined test time T. All
limitations are the same as defined under Quick Start. The
limitation of the max. generated number of spikes is related
to the higher voltage of V1 or V2.
Frequency change after T by f
The spike frequency is changed from f1 to f2 by steps of f
after a defined test time. All limitations are the same as
defined under Quick Start. The limitation of the max.
generated number of spikes is related to the higher voltage
of V1 or V2.
Note: The maximum values for frequency, burst duration td and voltage are in dependence of each other and therefore limited by the
generator performance. The practical limits of the UCS200M are 20kHz for f2 and 50ms for the burst duration td. The limits of the
generator model UCS 200N4 are approx. 10 times higher.
Random burst release
No repetition rate is selected. The single burst will be
triggered by statistics in the limits of 20 to 2000ms as time
between two Bursts. All limitations are the same as defined
under Quick Start.
To Next Page
