8.
Maintenance
8.1.
General
The generator is absolutely maintenance-free by using a solid state semiconductor switch to generate transients.
8.2.
Test set-up
When setting up the test national and international regulations
regarding human safety have to be guaranteed.
It is recommended to connect the simulator to the ground reference
plane of the test set-up.
The generators of the series 200, UCS, LD, PFS and VDS can be
linked together to a fully automotive test set-up.
The set-up communicates via the IEEE/GPIB bus and is controlled by
iso.control software.
For setting up the system see the following figures:
Each generator can be operated individual as a single equipment.

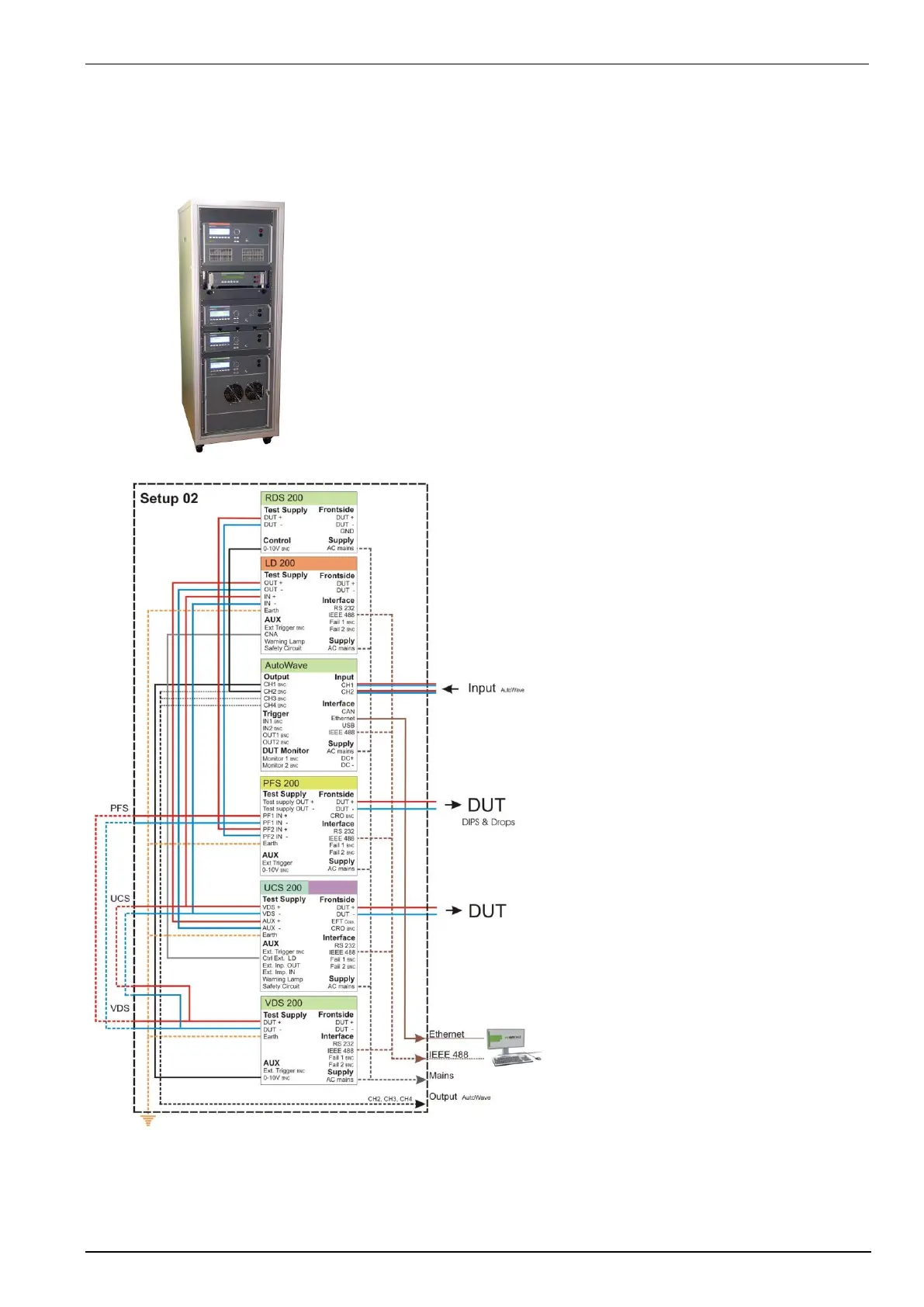

Example wiring ISO System
