4.6.3.
Tests with the capacitive coupling clamp ACC

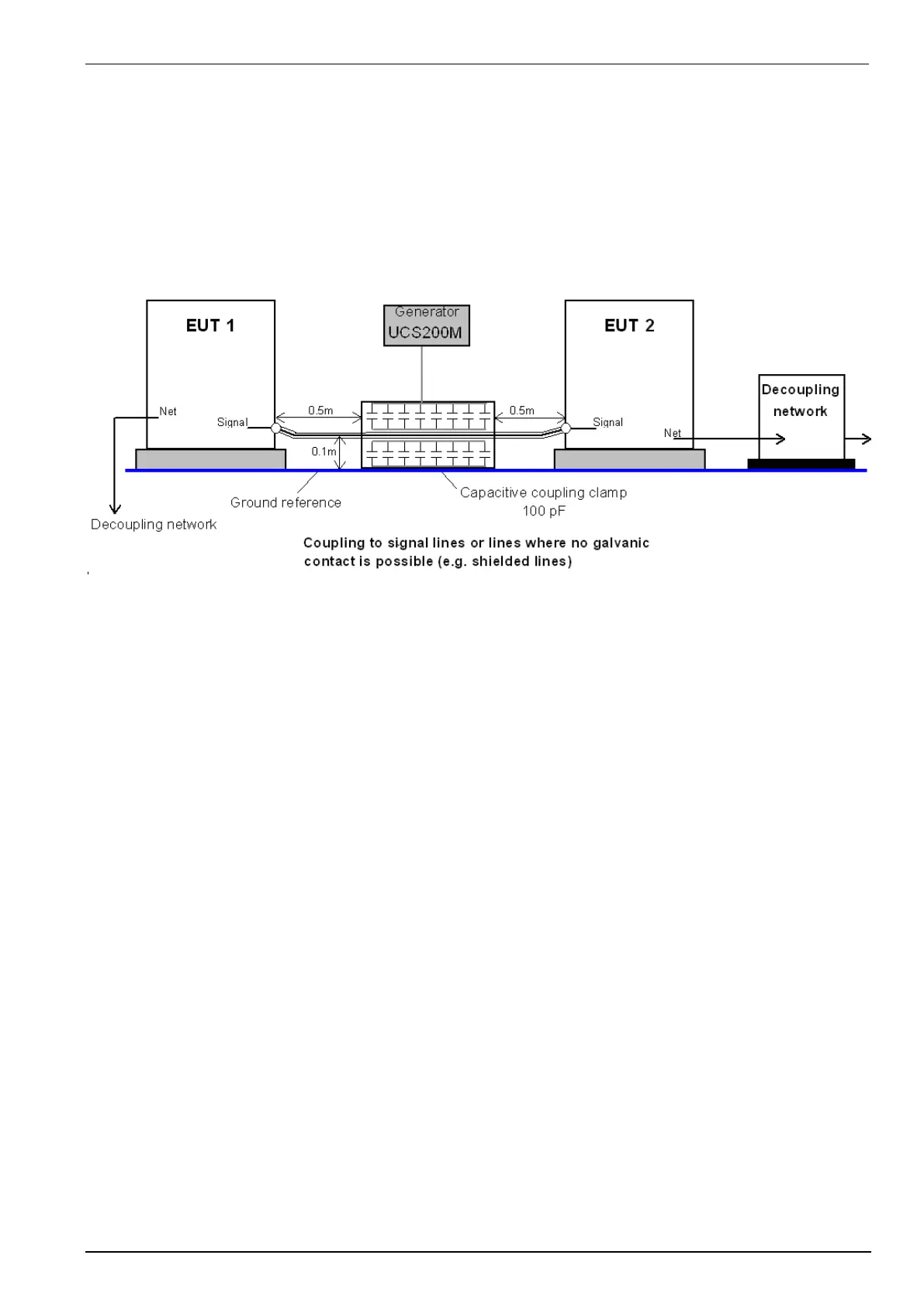

• The coupling on signal lines is realized with the capacitive coupling clamp.
• The coupling clamp has to be terminated with a 50 ohm resistor.
• The clamp should be placed in a distance of 0.5m to the equipment under test. When using shorter
distances, the DUT may be influenced by radiation.
• If the DUT is built up by two different units, the test should be conducted on each single unit with the required
distance.
