Ametek UCS 200N .2 Series User Manual

AMETEK CTS UCS 200N
Manual for Operation V 2.41 29 / 54
6.

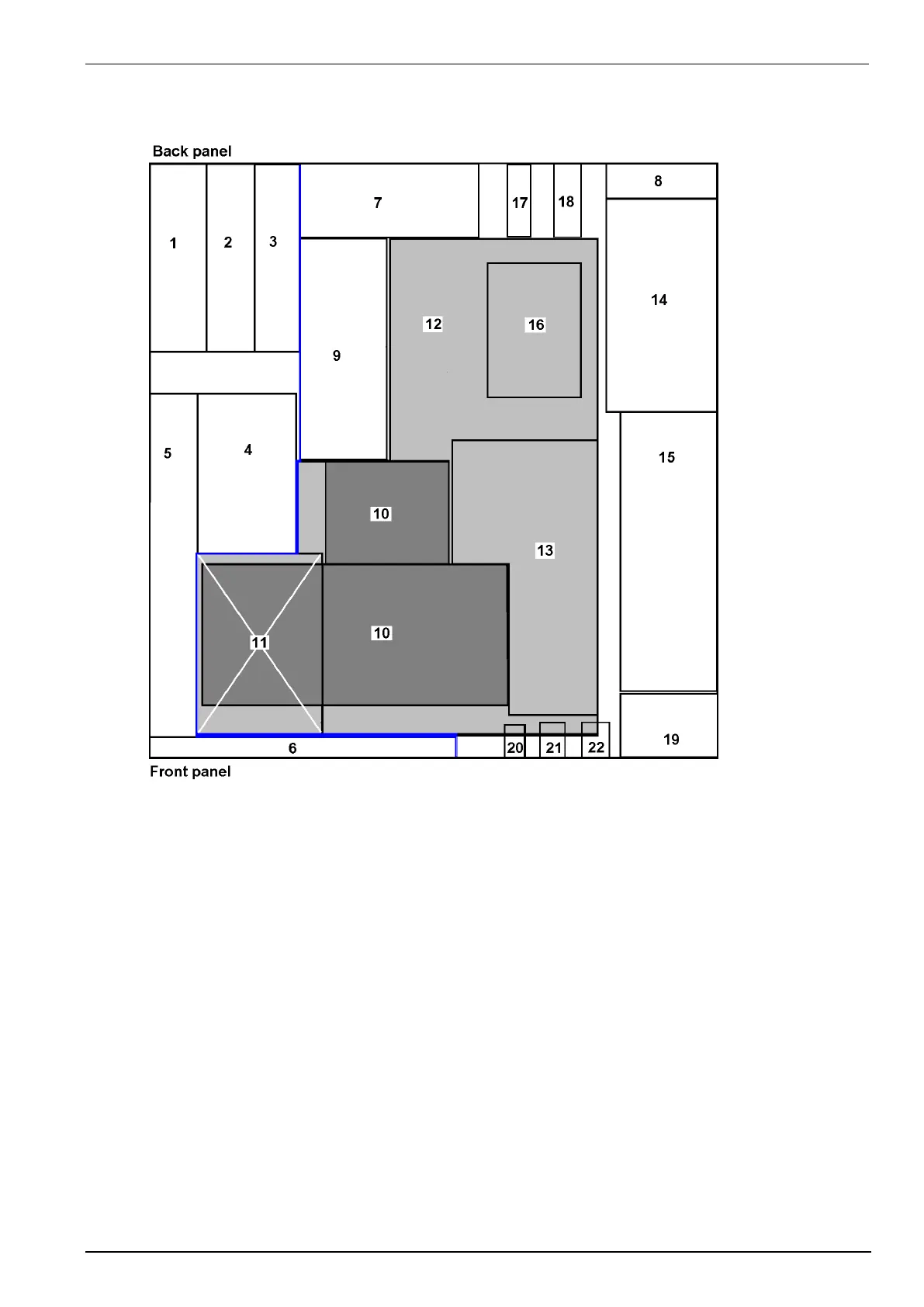

Test Equipment UCS 200N
Control unit
1 Power supply board
2 Interface board
3 Controller board
4 Power supply transformer
5 Filter board / connecting board
6 Keyboard / LCD- display
7 General power supply input, filter
8 Ventilation
High voltage unit
9 High voltage power supply
10 Storage capacitor
11 Relays driver board
12 Micropulses board
13 Coupling board
14 DC Switch
15 Burst board
Coupling/decoupling unit
16 Decoupling chokes
17 External input
18 DC Input
19 + Coupling
20 CRO Trigger
21 50 Ohm Output
22 LEDs
