AMETEK CTS UCS 200N
Manual for Operation V 2.41 49 / 54
10.2.

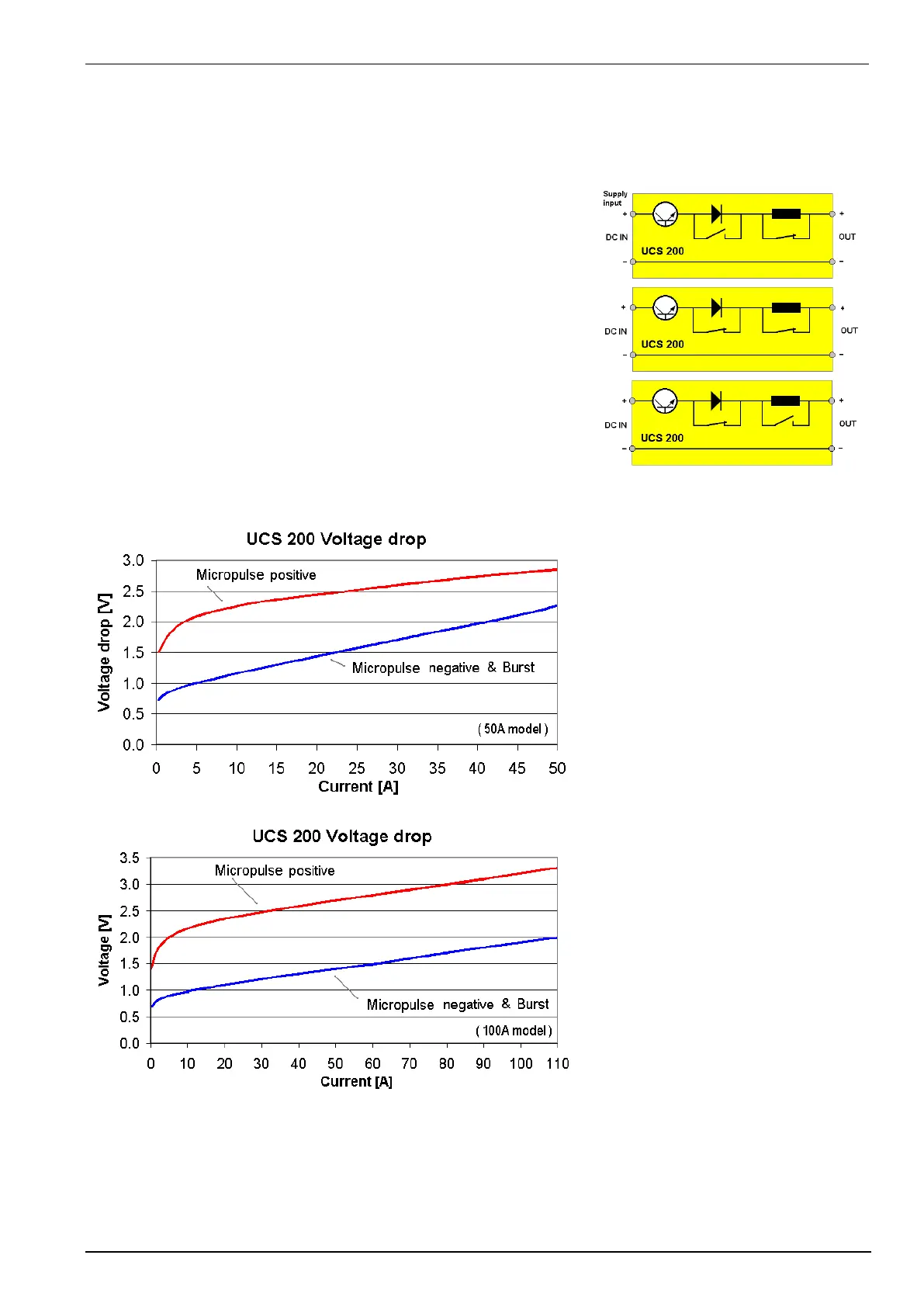

UCS 200N – internal Voltage drop
Depends on the pulse setting a different Voltage drop appears inside the UCS 200N. This voltage drop can be
compensated by the battery supply (VDS 200) setting, The iso.control software compensate the voltage drop
automatically. In the CNA setup for each case a voltage drop can be setted.
Internal UCS 200N connection diagram
Micropulses positive
Micropulses negative
Burst pulse 3a & 3b
Voltage drop UCS 200N50 model.
Voltage drop UCS 200N100 model.
