5.5.
Special pulses as per VW, Mercedes, Ford, Opel

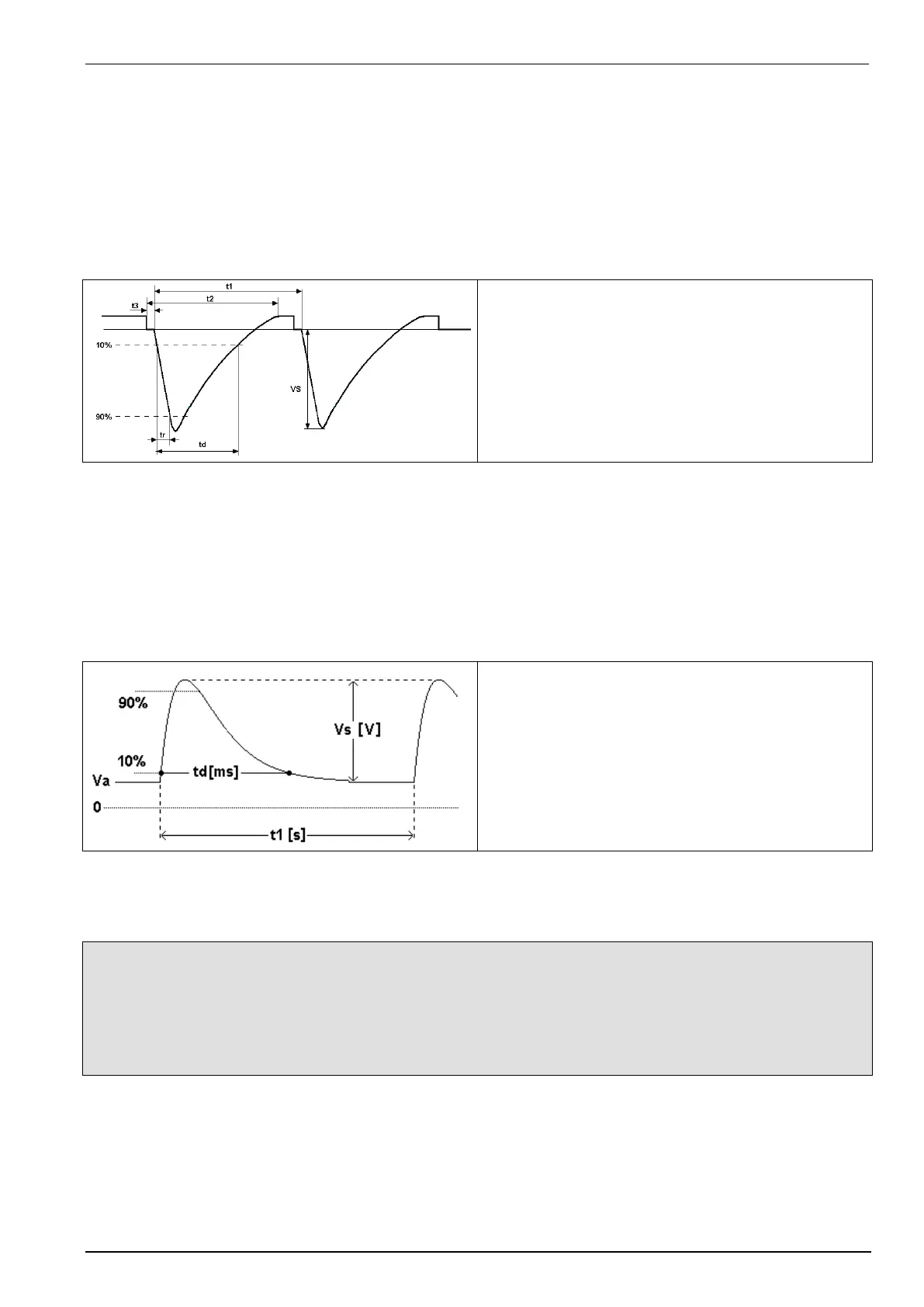

Pulse 1b as per VW
12V supply
24V supply
Test voltage
0 .. -50V
0 .. -50V
Internal resistor
10
20
Pulse width td
0.05 ms
0.05 ms
Risetime tr
1s
1s
Repetition t1 (Rep)
0,2 s
0,2 s
Switch off time t2
for approx. td
for approx. td
To generate this test pulse please select in Quick Start
pulse 2 as per ISO 7637. Additionally the following
setting are recommended:
- Polarity negative
- Battery off time to (t2) to 0.05ms
- Repetition rate rep=0.2s
- Internal resistor Ri=10 (20 for 24V battery supply)
Test pulse 2 as per VW
12V supply
Test voltage
0 - 50V
Internal resistor
10
Pulse width td
0,05 ms
Risetime tr
1s
Repetition t1 (Rep)
0,2s
To generate this test pulse please select in Quick
Start pulse 2 as per ISO 7637. Additionally the
following setting are recommended:
- Battery off time to (t2) to 0.0ms
- Repetition rate rep=0.2s
- Internal resistor Ri=10 (20 for 24V battery supply)
The following test pulses can also be covered by the MPG (examples):
- Ford ES-XW7T Pulse 1a The specification is basically the same as per ISO 7637(pulse 2) , except
Ri = 4 and a negative polarity shall be selected.
- Opel Pulse 1a The specification is basically the same (wiper pulse) as per ISO 7637(pulse 2) ,
except Ri = 2 and a negative polarity shall be selected.
