AMETEK CTS UCS 200N
Manual for Operation V 2.41 14 / 54
4.4.

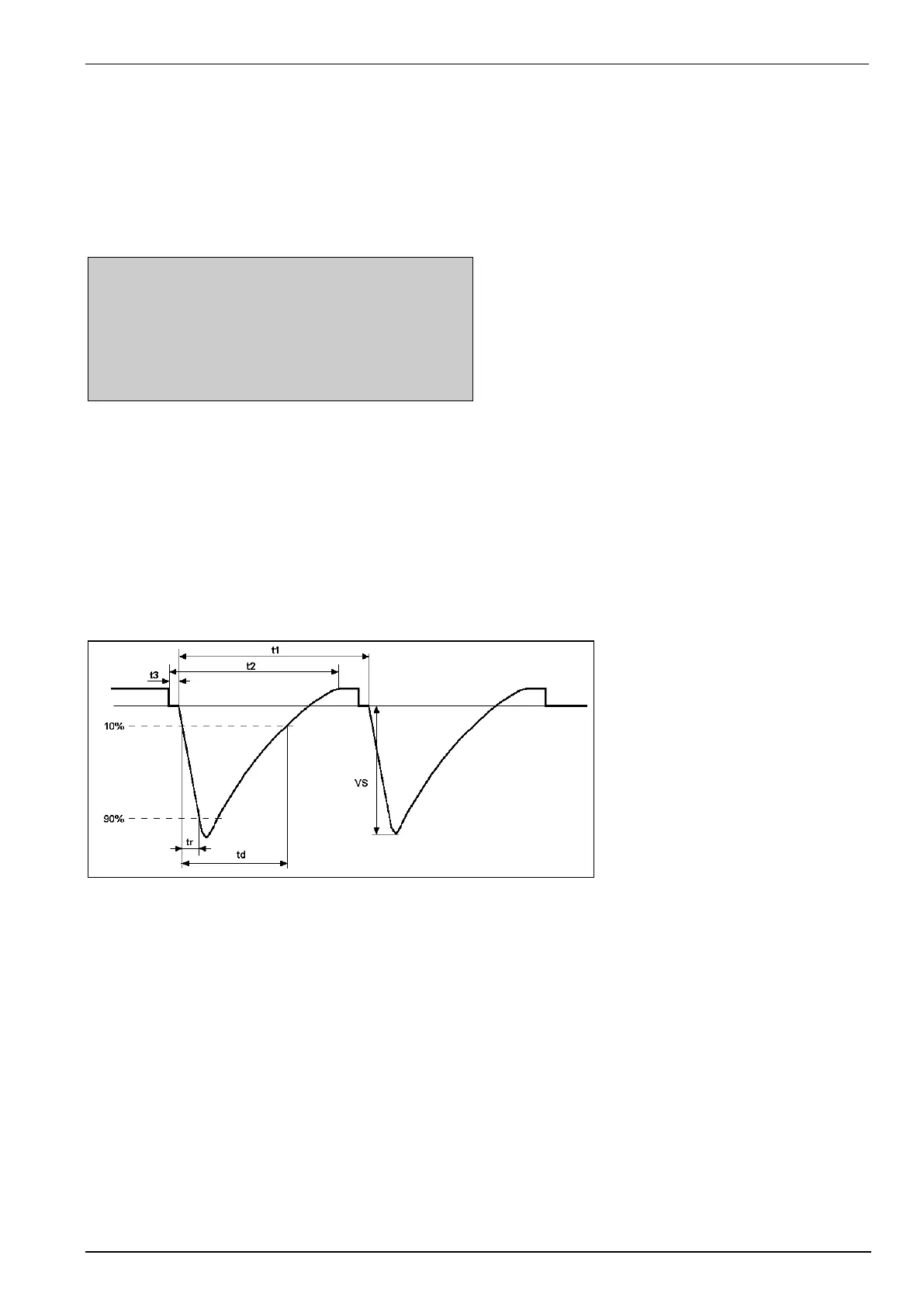

Tests pulse1, pulse 2
The pulse 1 and pulse 2, have the same menu structure. The following sections shows the common menu-items.
4.4.1.
Quickstart (pulse 1, pulse 2)
The pulses 1, 2, 3a / 3b offers a Quickstart menu. Easy and very fast operation of all standard functions of the
equipment. The latest simulator settings are stored automatically and will be recalled when Quick Start is next
selected.
QUICK START
V = 100 V pul = 2
+/- = - Ri = 10 Ohm
t1 = 1.0 s t2 = 8.0ms
tri = Auto cpl = Supply
n = 10000
START CHANGE
F1
F2
F3
F4
F5
F6
F7
Press CHANGE and the test parameters can be changed.
Select the desired parameter with the related function key and change the value by turning the front panel knob.
The cursor allows the user to define the digit to be changed (fast or slow change).
Press START and the test starts immediately with the displayed test parameters.
The operator now can navigate with the Cursor from parameter to parameter. The blinking parameter can be
changed by turning the front panel knob.
Press ESC will bring the user back to the previous menu level.
All function keys except F2 (manual trigger) can Stop the test routine.
