NXD-700i - Installation
13
NXD-700i & NXT-CA7 7” Modero Touch Panels
3. Remove the Faceplate/bezel (A in FIG. 13) from the main NXD unit (B in FIG. 13) by gripping the
faceplate and pulling with gentle outward force.
4. Thread the incoming Ethernet and USB cables through the surface opening.
Leave enough slack in the wiring to accommodate any re-positioning of the panel.
5. Connect the incoming Ethernet and USB cables to their corresponding locations along the left side of the
panel.
6. Test the incoming wiring by attaching the panel connections to their terminal locations and applying
power. Verify the panel is receiving power and functioning properly to prevent repetition of the
installation.
7. Install the three sets of drywall screws and expansion clips into the three oval notch locations along both
sides of the main unit (B in FIG. 13).
8. Carefully insert the main unit (with expansion clips) into the cutout until the Mounting Tabs on the NXD
unit lie flush against the wall.
9. Tighten all three drywall clip sets (screws and clips) until the entire Mounting Tab is securely fastened
and flush against the wall.
10. Place the Faceplate/Trim Ring assembly (A in FIG. 13) back onto the main NXD unit (B in FIG. 13).
Make sure to align the Microphone, Light, and PIR Motion sensor locations to their respective openings
on the front faceplate/bezel.

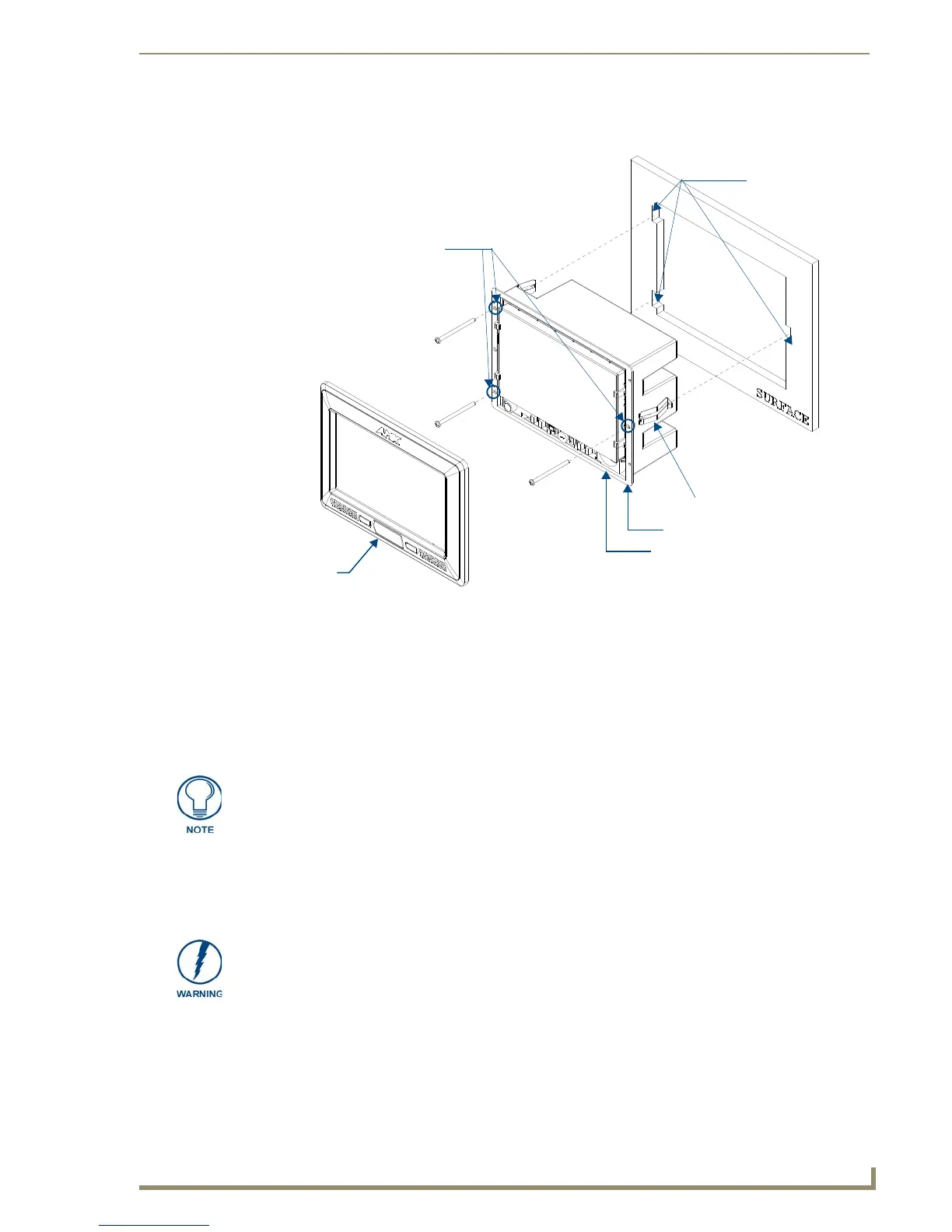

FIG. 13 Wall Mount panel (NXD) installation configuration for drywall surfaces
B - Main NXD unit consists of
Install the 3 included
drywall clip sets
into these locations
the touch panel and back box
3 notches are
required to
accommodate the
three expansion
clips (included)
A - Faceplate
/Trim Ring
Mounting Tab
Drywall Clip (3)
Don’t disconnect the connectors from the touch panel. The unit must be installed with
the attached connectors before being inserted into the drywall.
The drywall clip set must be re-ordered from AMX if the drywall clip is bent
accidentally during an installation or removed during a re-installation.
