Setup Pages and Descriptions
65
NXD-700i & NXT-CA7 7” Modero Touch Panels
Setting up your touch panel as a telephone requires that you set it up as one in the CSG SIP Communications
Gateway.
Refer to the CSG SIP Communications Gateway Operation/Reference Guide for information on setting up
your touch panel to work as a telephone.
You may need to load a Duet module to enable the touch panel to receive SIP calls. The Duet module translates
between the standard interface and the device protocol. It parses the buffer for responses from the device,
sends strings to control the device, and receives commands from the UI module or telnet sessions.
Refer to the documentation supplied with the Duet Module for more details
.
Features on this page include:

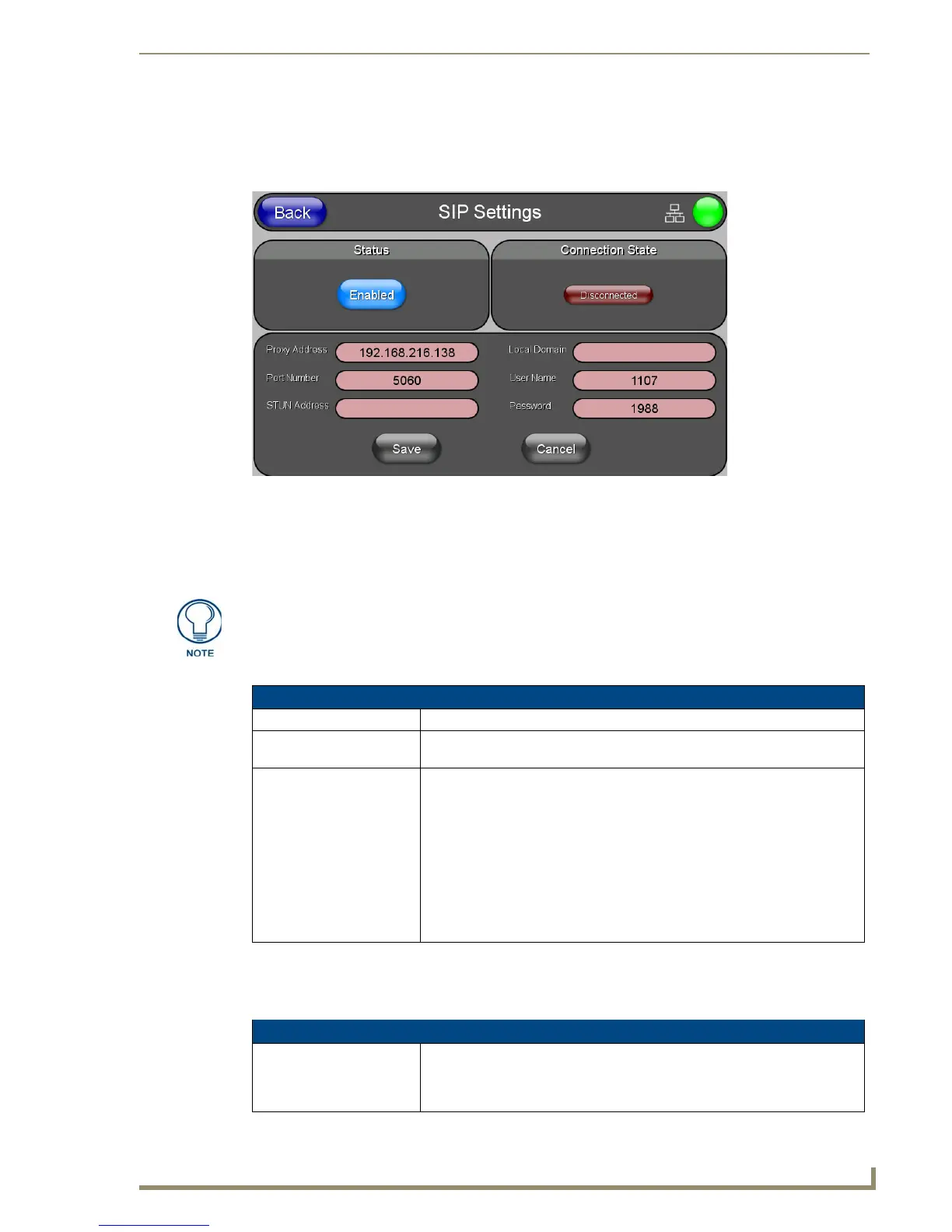

FIG. 63 SIP Settings Page
A sample UI module is provided in the module package. It is not intended to cover
every possible application, but can be expanded as needed by a dealer to meet the
requirements of a particular installation.
SIP Settings Page
Back: Saves all changes and returns to the previous page.
Wired icon: The icon to the left of the Connection Status Icon displays that the current
connection to the Master is Wired (image of three networked computers).
Connection Status icon: The icon in the upper-right corner of each Setup page shows online/offline state
of the panel to the master.
• Bright red - disconnected
• Bright green - connected. Blinks when a blink message is received to dark
green every 5 seconds for half a second then go back to bright green.
• Bright yellow - panel missed a blink message from the master. It will remain
yellow for 3 missed blink messages and then turn red. It will return to green
when a blink message is received.
Note: A lock appears on the icon if the panel is connected to a secured NetLinx
Master.
SIP Settings Page (Cont.)
Status: This option enables the SIP Stack on startup. If you disable this option, the
panel will not attempt to read the rest of the configuration and will not register
with a proxy server. However, point-to-point SIP will still be enabled allowing for
existing intercom functionality.
