PAGE 33
NOTE: When “PT1000” is selected but the element is not connected to the transmitter, a
“WARNING: CHECK STATUS” message will appear. To prevent or clear this
message, connect the element or select “MANUAL.”

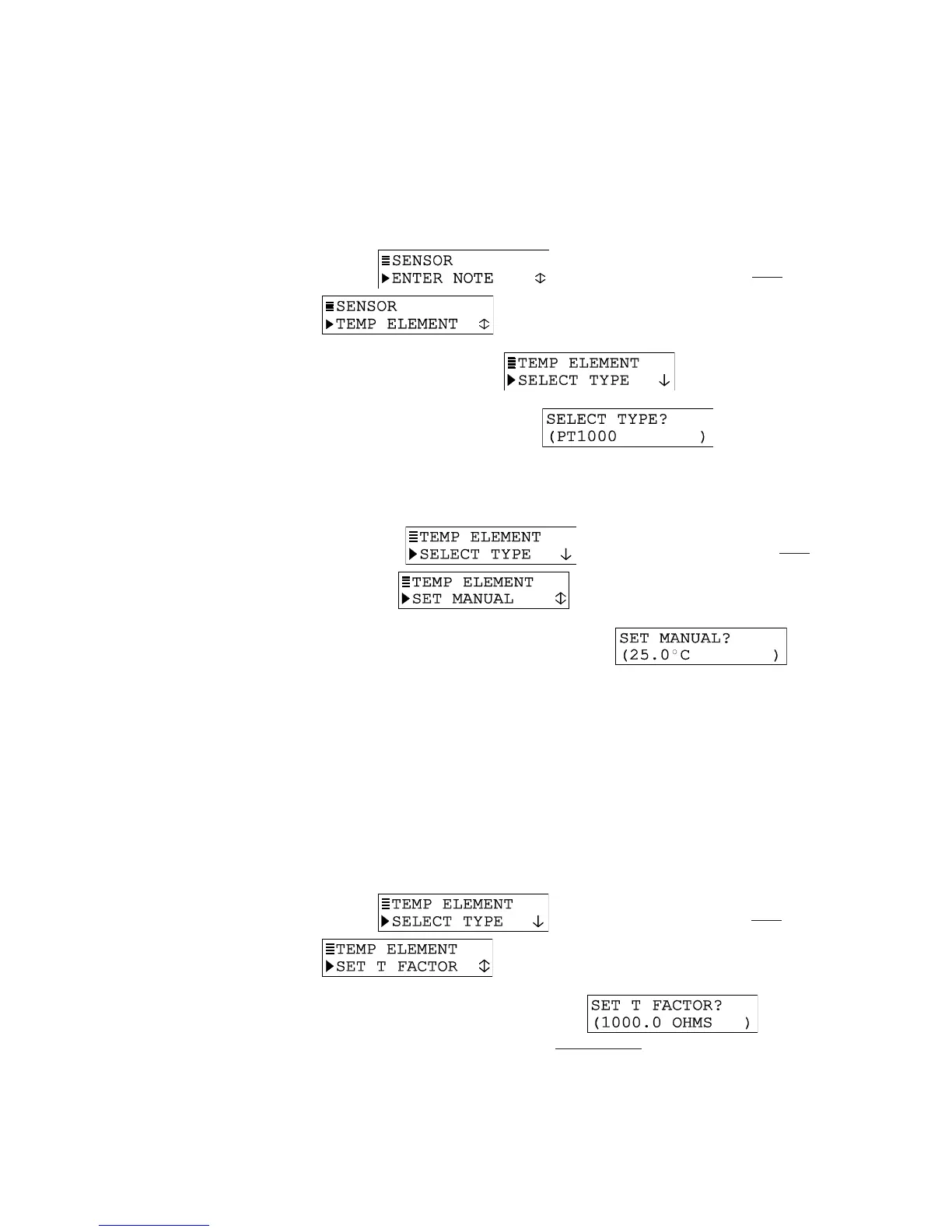

To configure the transmitter for fixed MANUAL temperature compensation you must select
“MANUAL” and enter a specific temperature:
1. With the
screen displayed, press
ØØ
ØØ
Ø key once to display
.
2. Press ENTER key to display
.
3. Press ENTER key again to display
. Use
ØØ
ØØ
Ø key to select
“MANUAL” for fixed manual temperature compensation, and press ENTER key to enter
it:
4. Now determine and enter a specific manual temperature compensation value:
A. With the
screen displayed, press
ØØ
ØØ
Ø key once to
display
.
B. Press ENTER key to display a screen like . Use arrow
keys to adjust to a desired temperature for fixed MANUAL compensation, and
press ENTER key to enter it.
SET T FACTOR (sensor’s factory-certified “T” factor)
Each sensor is tested to provide a unique, certified temperature T FACTOR because:
• Temperature greatly affects conductivity measurement accuracy.
• The inherent ohm value of the Pt 1000 RTD temperature element varies slightly from
sensor to sensor, affecting temperature measurement accuracy.
By entering the sensor’s unique T FACTOR, the transmitter will provide the highest possible
measuring accuracy for both temperature and conductivity.
1. With the
screen displayed, press
ØØ
ØØ
Ø key once to display
.
2. Press ENTER key to display a screen like
. Use arrow
keys to adjust the displayed value to exactly match the sensor’s factory-certified T
FACTOR, and press ENTER key to enter it.
