5-18 Mobile WiMAX Signal Analyzer Verification, Options 66 and 67 Option Verification
5-94 PN: 10580-00255 Rev. J MT8212E and MT8213E MM
Setup
Procedure
1. Connect the MA2482D Power Sensor to the power meter and zero the sensor.
2. Set the Power Meter Measurement MODE to True RMS, set Averaging MODE to Moving, and set
Averaging NUMBER to 256.
3. Set the calibration factor frequency of the power sensor to 2600.5 MHz.
4. Connect the equipment as shown in Figure 5-19.
Channel Power Accuracy (10 MHz Bandwidth and 10 ms Frame Length)
5. Set the MG3700A as follows:
a. Press the yellow Preset button (answer Yes to the question).
b. Press the Set key
c. Press the (F1) soft key to select Load File to Memory.
d. Press the (F1) soft key again to select Select Package.

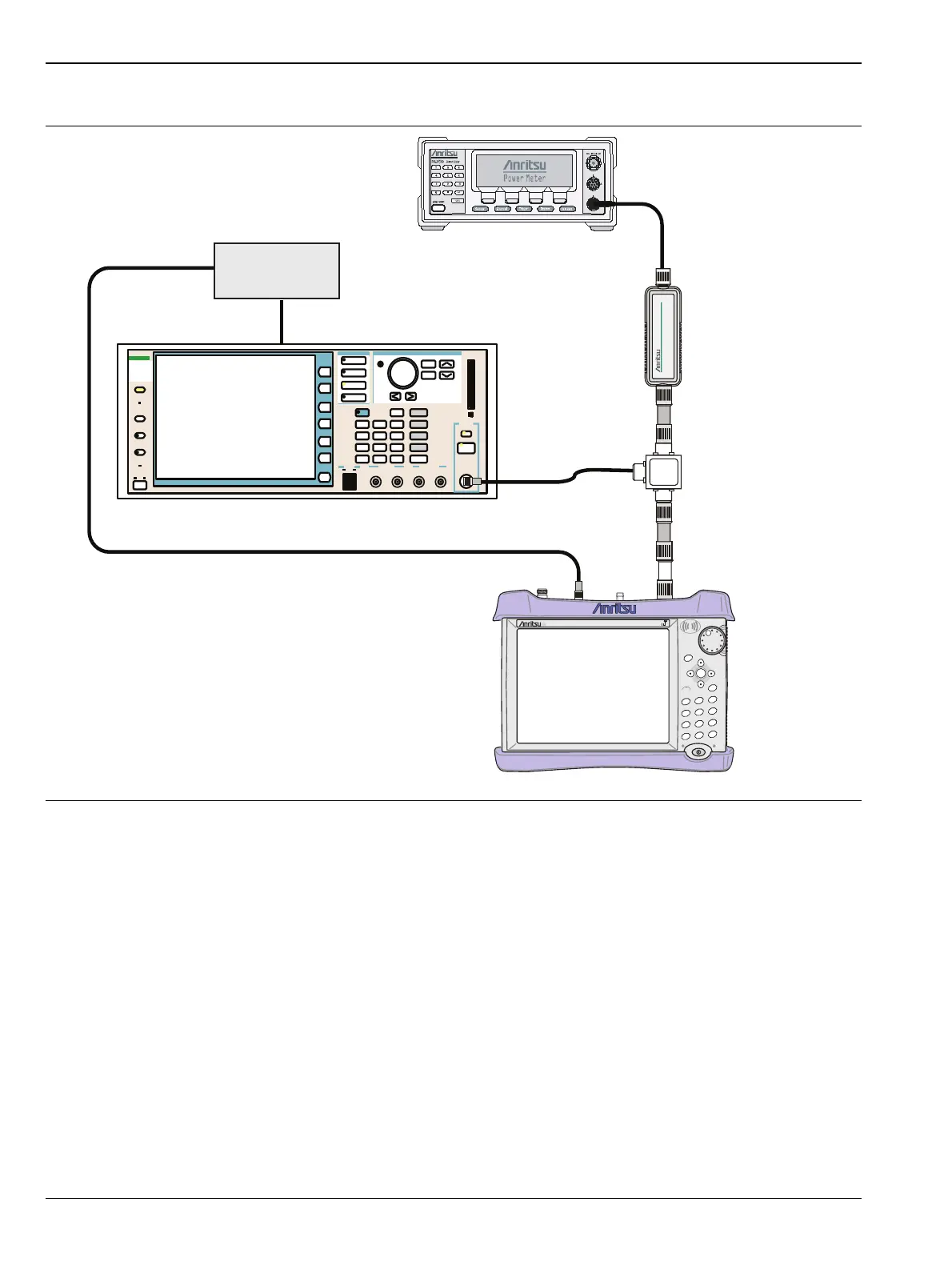

Figure 5-19. Mobile WiMAX Signal Analyzer Option Verification
MT821xE Cell Master
Power Charge
+/-
.
0
3
Sweep
2
Calibrate
1
Preset
6
Limit
5
Trace
4
Measure
9
Mode
8
System
7
File
Shift
Back
Enter
ESC
CellMaster
MT8212E
MG3700A Vector Signal Generator
Function
Ethernet Control Input Modulation Input
Cursor/Edit
RF Output
3
MG3700
Vector Signal
Generator
250kHz-6GHz
ML2438A Power Meter
MA2482D
Power Sensor
1870A
Power Splitter
34NN50A Adaptor
10 MHz
Reference
10 dB Attenuator
10 dB Attenuator
To Next Page
