3-8 Interference Mapping Interference Analyzer (Option 25)
3-8 PN: 10580-00349 Rev. H Spectrum Analyzer MG
3-8 Interference Mapping
Interference Mapping assists in quickly identifying the location of an interfering signal using
a directional antenna and a GeoEmbedded map created using Anritsu easyMap Tools
software.
The easyMap Tools program creates single panel maps (.map) for use with Anritsu
instruments. easyMap Tools also creates pan and zoom maps (.azm) compatible with
supported Anritsu instruments. The software imports maps from OpenStreetMap and
Google Maps and creates files with or without GPS information. Anritsu easyMap Tools is
available from the Anritsu website (www.anritsu.com).
With a valid GPS signal, the instrument will identify the current location on the displayed
map with a plus sign. Saved locations are displayed with an orange square. The direction of
the interfering signal can be determined and recorded. With two or more lines, you can see
where the lines intersect and estimate the location of the interferer.
Note
Interference Mapping requires GPS Option 31 or the MA2700A which contains a
GPS module.
Note For a list of supported instruments, refer to easyMap Tools Help.

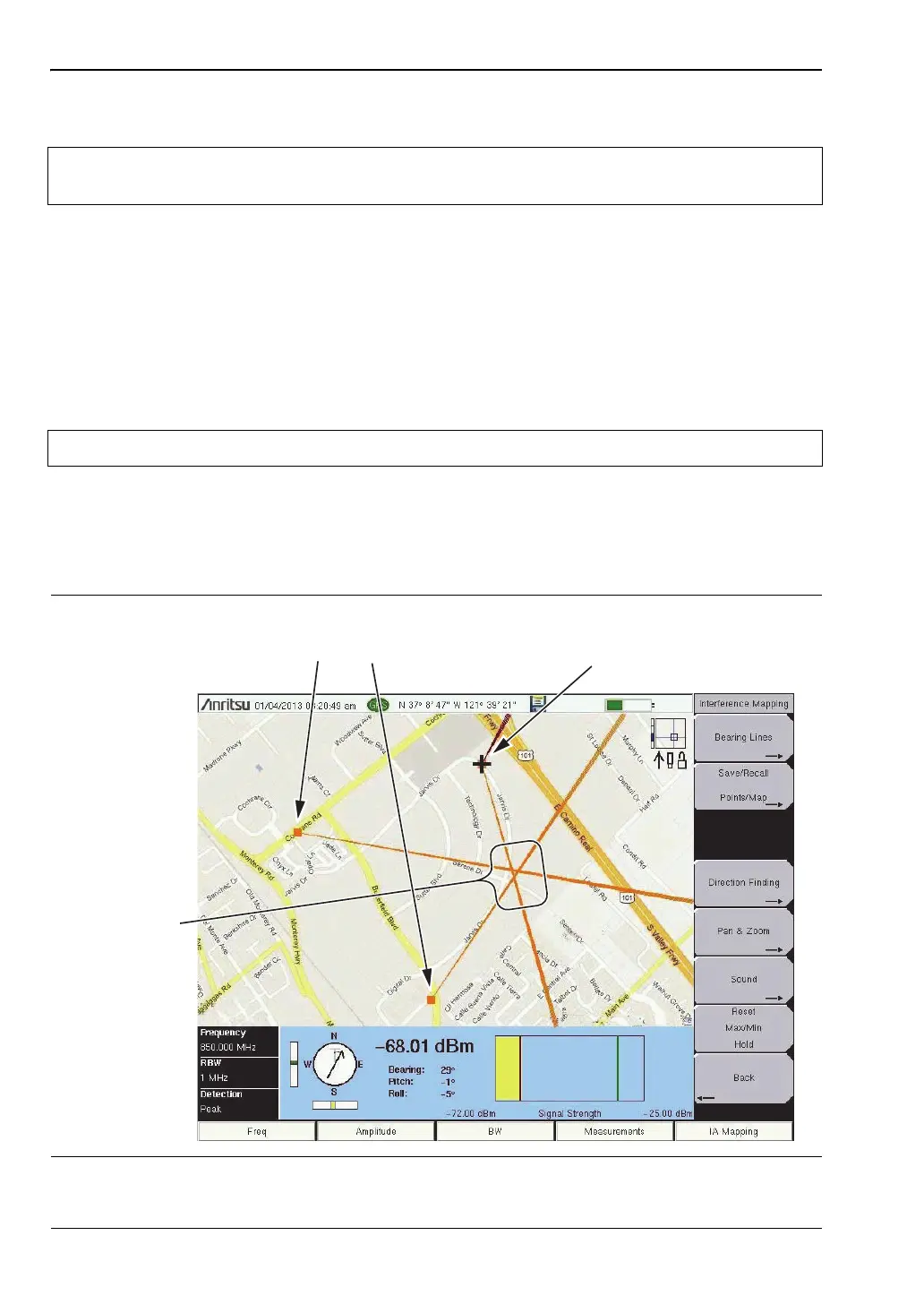

Figure 3-6. Interference Mapping with the MA2700A Handheld Direction Finding System
Current Location
and Interferer Direction
