6-6 Coverage Mapping Menu Coverage Mapping (Option 431)
6-18 PN: 10580-00349 Rev. H Spectrum Analyzer MG
1 MA2700A USB cable is connected and recognized by the Anritsu instrument.
2 USB memory stick is available for data read/write.
3 AZM map auto-centering mode (locked/unlocked). When locked, the instrument
automatically displays the map tile at the zoom level that best centers the current GPS
location. The instrument will attempt to swap map tiles as the GPS location changes to
continue displaying the current location near the center of the screen.

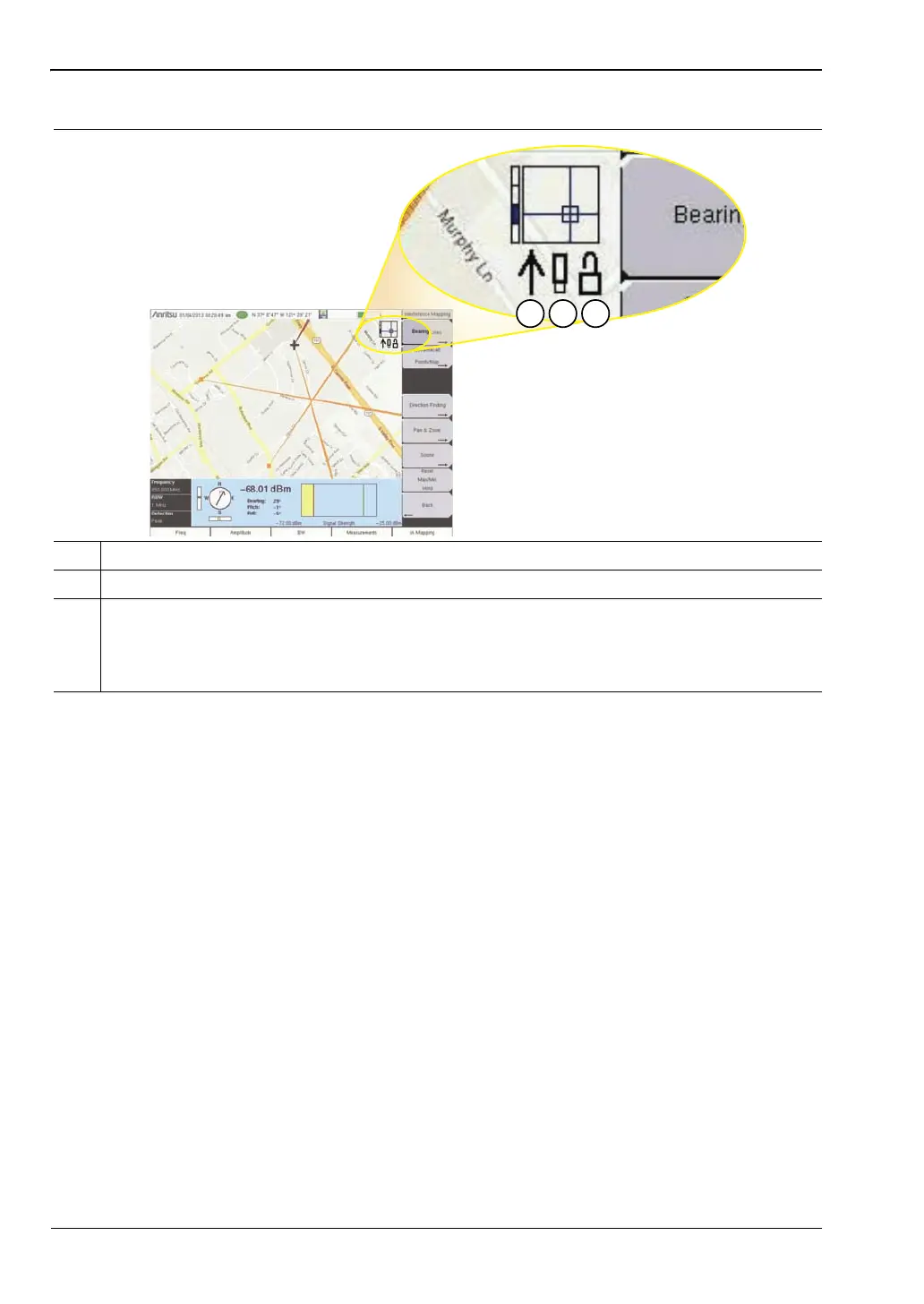

Figure 6-12. Map Legend Status Indicators
1 2 3
