Coverage Mapping (Option 431) 6-6 Coverage Mapping Menu
Spectrum Analyzer MG PN: 10580-00349 Rev. H 6-19
Measurement Setup Menu
Key Sequence: Shift > Measure (4) key > Coverage Mapping > Measurement Setup
RSSI: Press this submenu key to select Received Signal Strength Indicator
(RSSI). This is a basic measurement of the power present in the received
signal in zero span and current RBW. Press the RSSI submenu key again to
set the dBm levels for RSSI legend, the .kml push pins, and the dots and
squares on the instrument screen. Refer to “RSSI Menu” on page 6-21.
ACPR: Press this submenu key to select Adjacent Channel Power Ratio
(ACPR). ACPR is the ratio of the power of the adjacent (lower and upper)
channel to the main power channel. Press the ACPR key again to set the
main channel bandwidth, adjacent channel bandwidth, channel spacing,
adjacent channel offset and the power level qualifiers. Refer to “ACPR Menu”
on page 6-22.
Center Freq: Press the Center Freq submenu key and enter the desired
frequency using the keypad, the left or right arrow keys, or the rotary knob. If
entering a frequency using the keypad, the submenu key labels change
to GHz, MHz, kHz, and Hz. Press the appropriate units key. Pressing the
Enter key has the same effect as the MHz submenu key.
RBW: The current resolution bandwidth value is displayed in this submenu
key. The RBW can be changed using the keypad, the arrow keys, or the
rotary knob. The range begins at 1 Hz and increases in a 1 to 3 sequence
from 1 Hz to 3 Hz to 10 Hz, from 10 Hz to 30 Hz to 100 Hz, and so on. To
determine the range for your instrument, refer to your Technical Data Sheet.
Detection: Several detection methods tailor the performance of the
instrument to meet specific measurement requirements. In general, there are
more measurement points across the screen than display points. The various
detection methods are different ways of dealing with how measurement point
will be shown at each display point.
Options Include:
Peak
RMS/Avg
Negative
Sample
Quasi-peak
Refer to “Units & Detection Menu” on page 2-56 for additional details.
Back: Returns to the “Coverage Mapping Menu” on page 6-15.

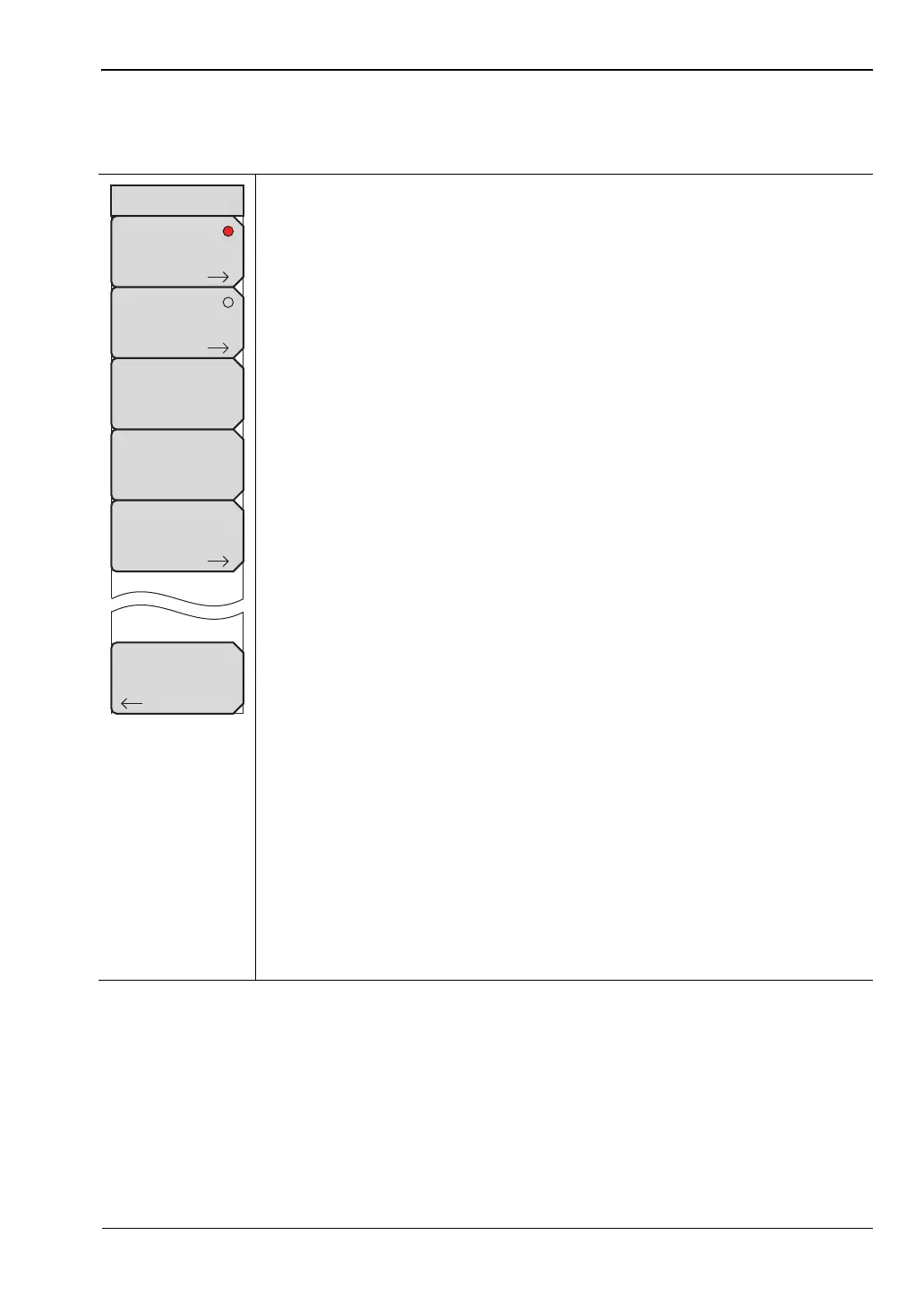

Figure 6-13. Measurement Setup Menu
Back
Measurement Setup
RSSI
ACPR
RBW
300 Hz
Center Freq
3.550 GHz
Detection
