CDMA Signal Analyzer 2-6 CDMA Over-The-Air Measurement Setup
3GPP2 MG PN: 10580-00235 Rev. D 2-11
Pilot Scan Setup
From the Over-The-Air menu, press the Pilot Scan submenu key to display the nine strongest
pilots, the PN codes, Ec/Io, Tau, Pilot Power, Channel Power, and Pilot Dominance
(Figure 2-8).

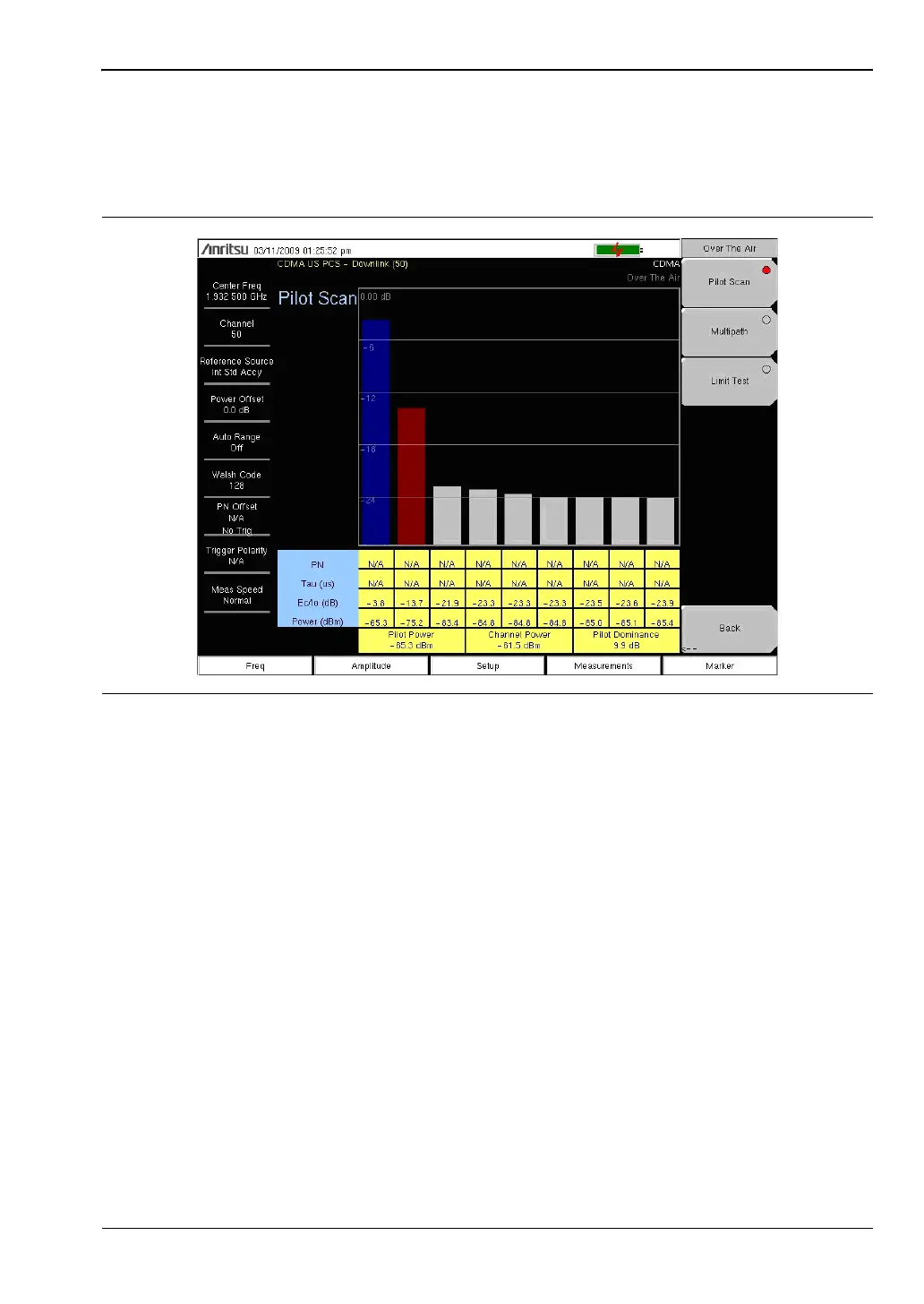

Figure 2-8. Over-The-Air Pilot Scan Measurement
