2-7 Pass Fail Setup CDMA Signal Analyzer
2-14 PN: 10580-00235 Rev. D 3GPP2 MG
2-7 Pass Fail Setup
The instrument stores user-defined Pass/Fail criteria for testing base station performance
and recalls these models for quick, easy measurements. After selection of a test file, the
instrument displays test results in tabular format with clear PASS or FAIL indications that
include minimum/maximum threshold.
A custom test list can be created and downloaded into the instrument using Master Software
Tools. All critical parameters can be selected for pass/fail testing.
From the Measurements main menu, use the following procedure for Pass/Fail setup:
1. Press the Pass/Fail Mode submenu key to display the pass/fail measurements.
2. Press the Pass/Fail Mode submenu key again to display the Pass/Fail Mode menu.
3. Press the Select Pass/Fail Test submenu key and select the applicable Test Model to
activate the measurement.
4. Press Reset to reset the pass fail function and begin a new pass/fail test.

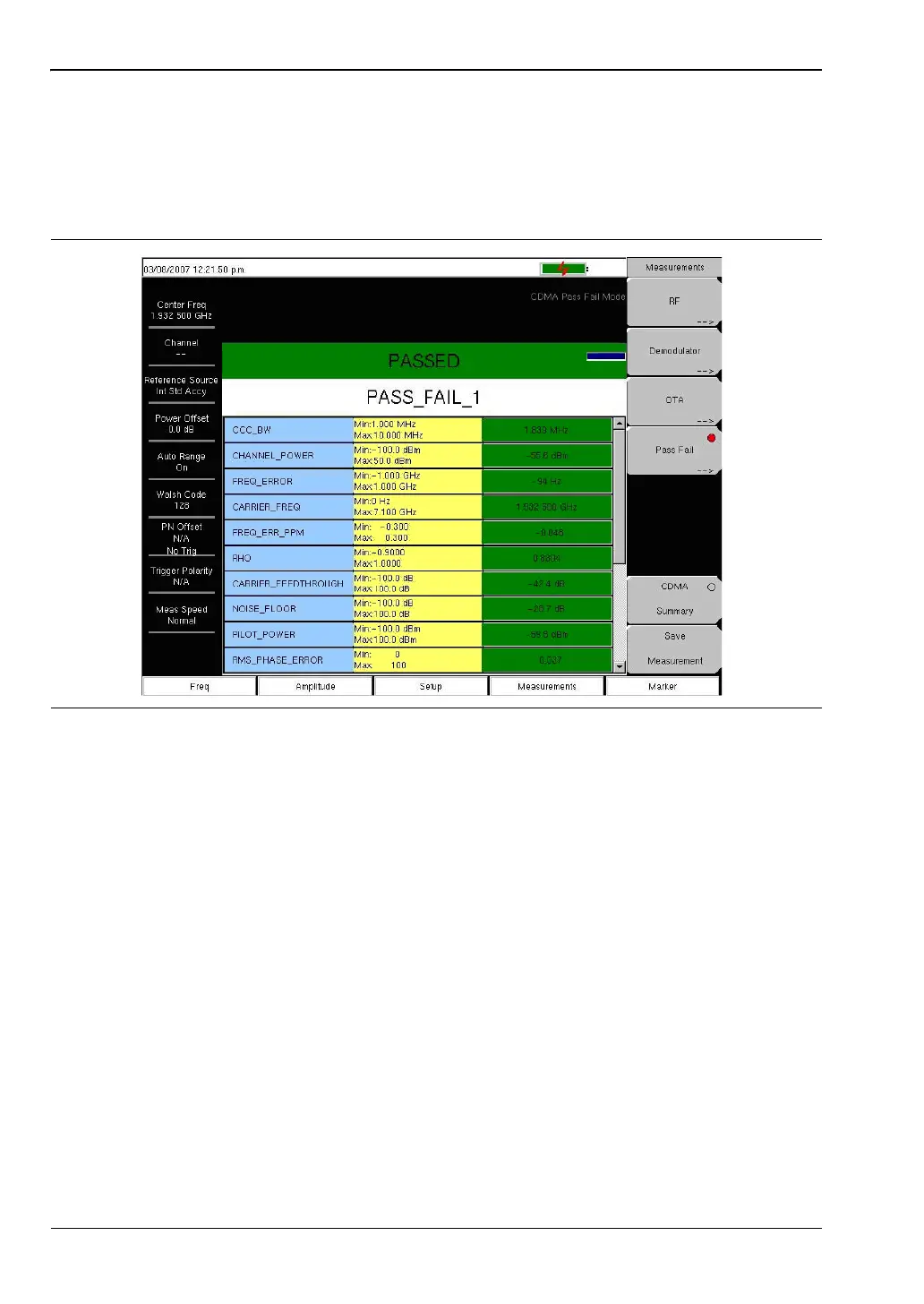

Figure 2-11. Pass Fail Measurement
