CDMA Signal Analyzer 2-6 CDMA Over-The-Air Measurement Setup
3GPP2 MG PN: 10580-00235 Rev. D 2-13
Limit Test Setup
1. Press the Limit Test submenu key to display the Limit Test measurement and list the
Limit Test window. Set the Rho Limit, Adj Rho Limit, Multipath Limit, Pilot Dom Limit, and
Pilot Pwr Limit by pressing their respective submenu key.
2. Start or restart the measurement by pressing the Start/Restart Measurement submenu
key. The test takes ten measurements and displays pass or fail status for each
measurement. After the ten measurements are taken, the average for the five
parameters is calculated and a pass or fail status is displayed.
3. To set new limits from the current limit average values, press the Set Avg Measured
Values as Limits submenu key.

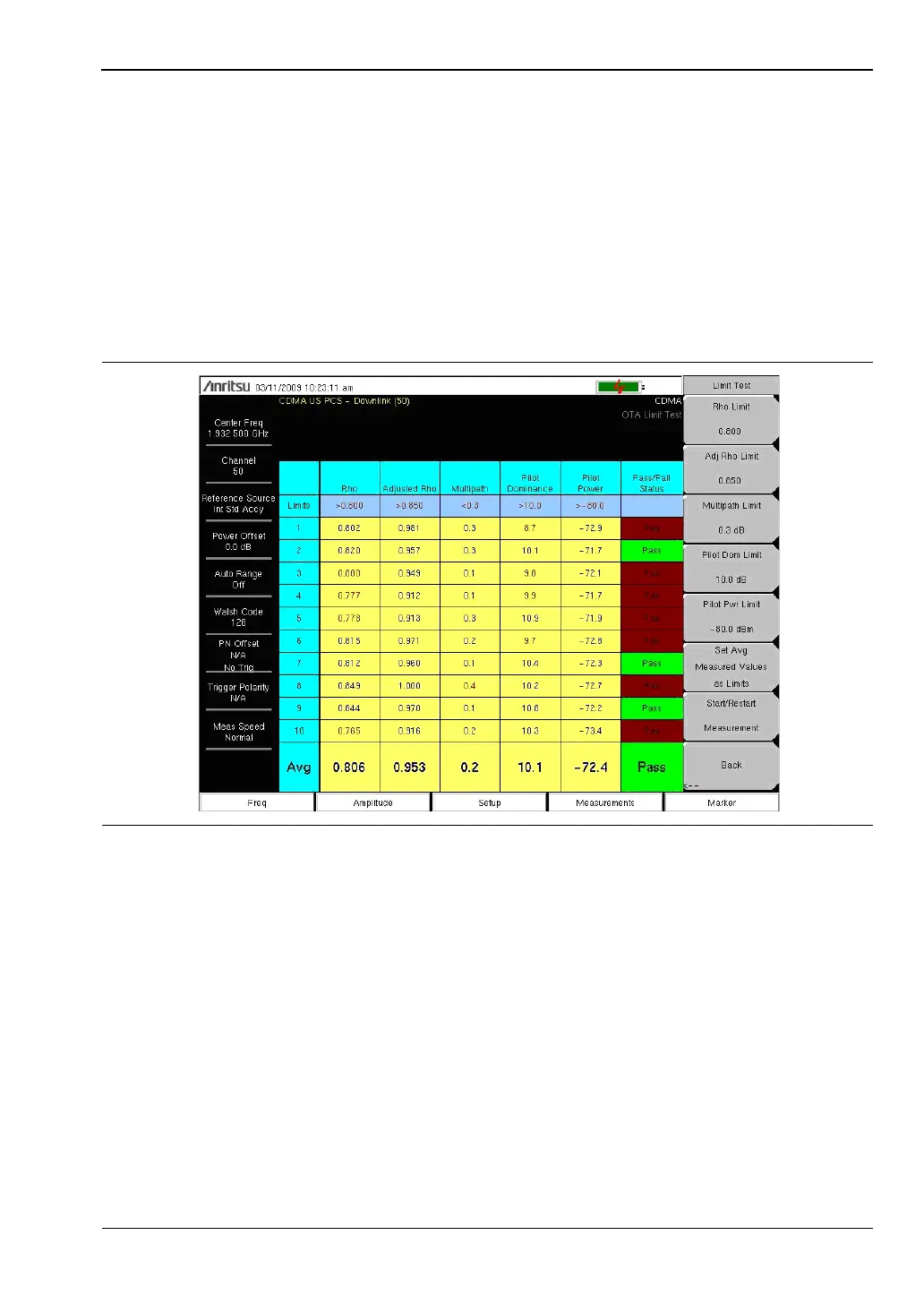

Figure 2-10. Over-The-Air Limit Test
