EVDO Signal Analyzer 3-4 EVDO RF Measurements Setup
3GPP2 MG PN: 10580-00235 Rev. D 3-5
ACPR Setup
ACPR (Adjacent Channel Power Ratio) is defined as the ratio of the amount of leakage power
in an adjacent channel to the total transmitted power in the main channel and is displayed in
table format under the bar graph.
From the RF Measurement menu, use the following procedure for ACPR:
1. Press the ACPR submenu key to activate the ACPR measurement (Figure 3-4). The red
dot on the submenu key indicates that it is selected.
2. Press the ACPR submenu key again to specify the Number of Carriers in a multi-carrier
configuration and to specify Carrier BW.

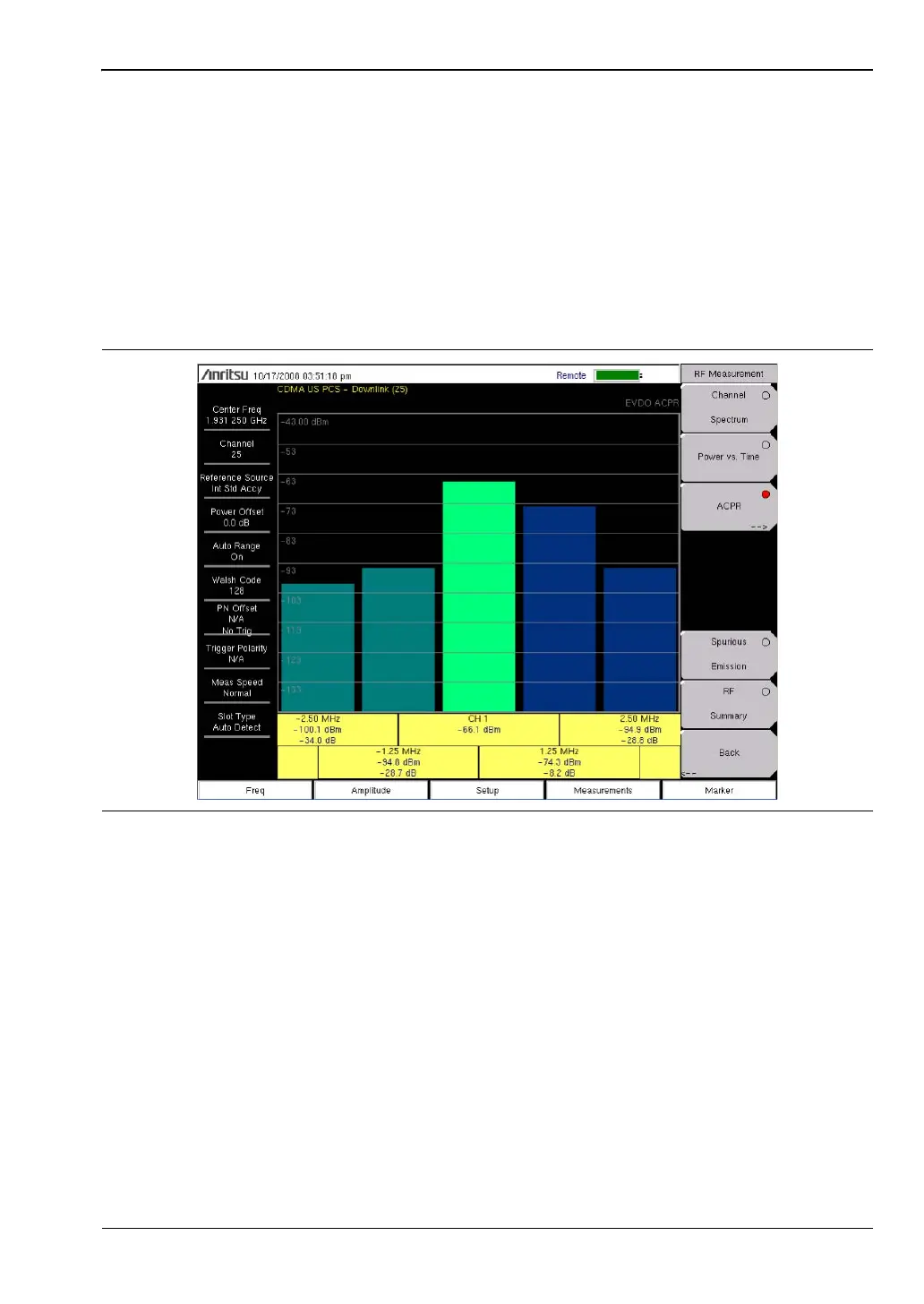

Figure 3-4. EVDO ACPR Measurement
