General Maintenance and Troubleshooting

3-10 SM 6495, Rev. 7, December 2008

LEAD 2

TERMINATES

HERE

TERMINAL 5B

TWO LEADS 6B

TERMINATE HER

MAINTENANCE

WIT

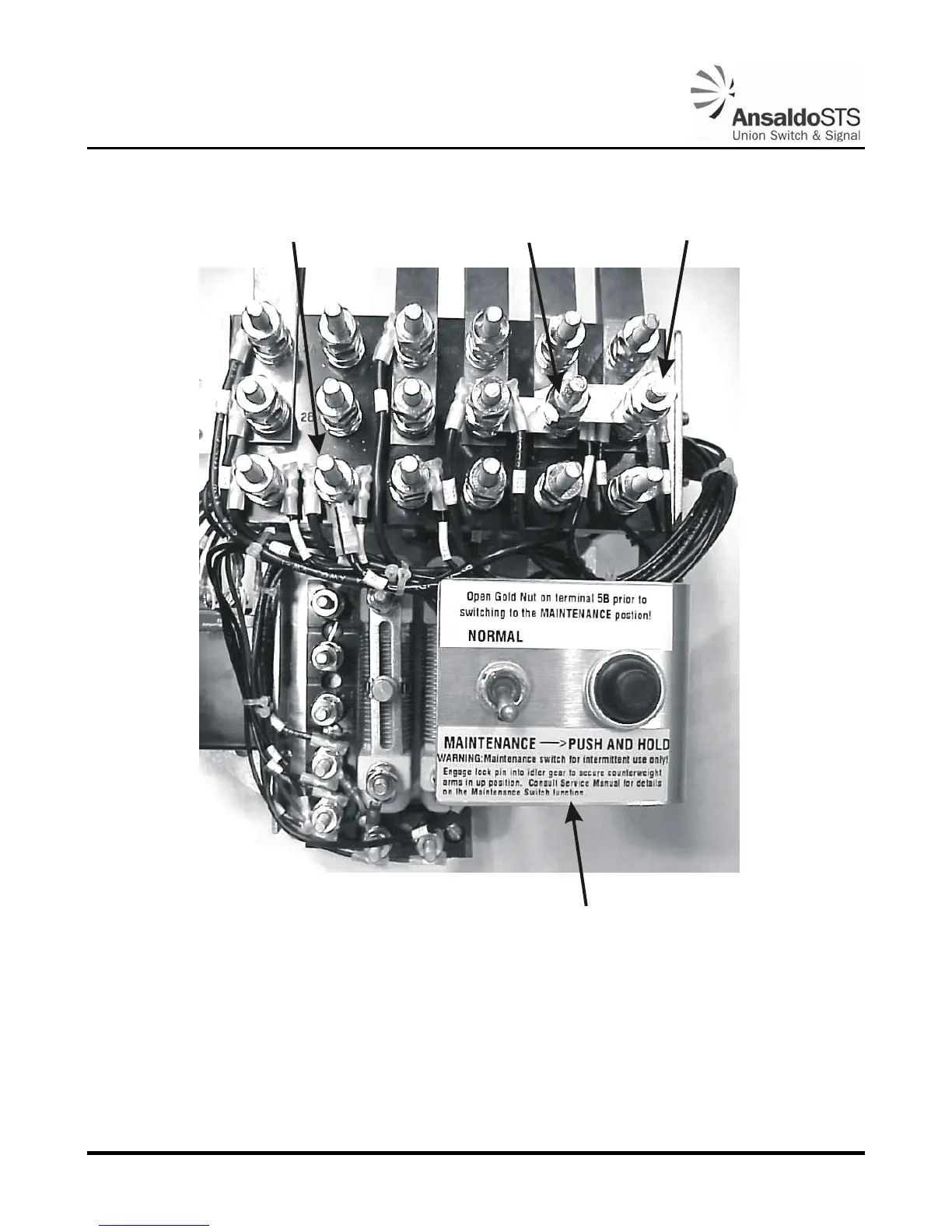

Figure 3-2 - Installation Close-up

3. After hold down pin in inserted into idler gear, release the push button switch.

4. Replace the gate arm.

5. Remove the hold down pin. If the pin is locked in place, momentarily press the push button switch

to jog the motor and free the pin.
