General Maintenance and Troubleshooting
SM 6495, Rev. 7, December 2008 3-13

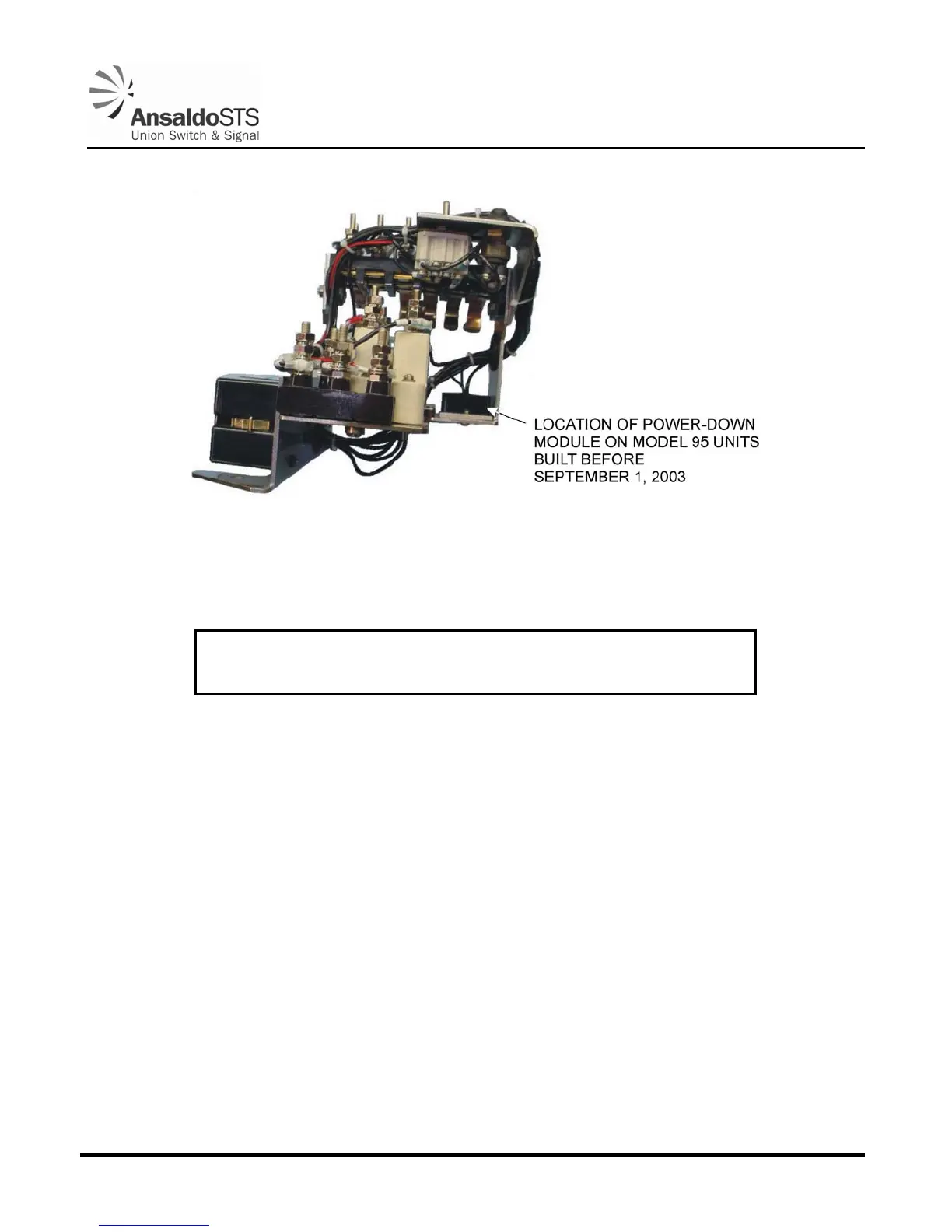

Figure 3-3 - Location of the Power Down Module
(Units Manufactured Before September 1, 2003)
NOTE
The wire harness must be positioned so that it is below the Power Down
Module after the module is mounted on the terminals.
9. Install the wires, new power down module, and hardware on terminal posts 1C, 2C, and 3C per
Figure 3-4. If the hardware is not installed properly the power down module will not sit level on
terminal posts 1C, 2C, and 3C. The redesigned Power Down Module is shown in its proper
location in
Figure 3-5.
10. Attach the single wire on the power down module to terminal post 5B and secure it in place using
the washer and nuts removed in Step 4.
11. Reattach the field wires on terminals 1C and 2C using the hardware removed in Step 3.
