AnsaldoSTS 95 - Figure 6-2 - Fifteen-Second Clearing Graph

100 pages

Save Page as PDF

To Next Page

To Previous Page

Gate Arm Clearing Graphs

6-2 SM 6495, Rev. 7, December 2008

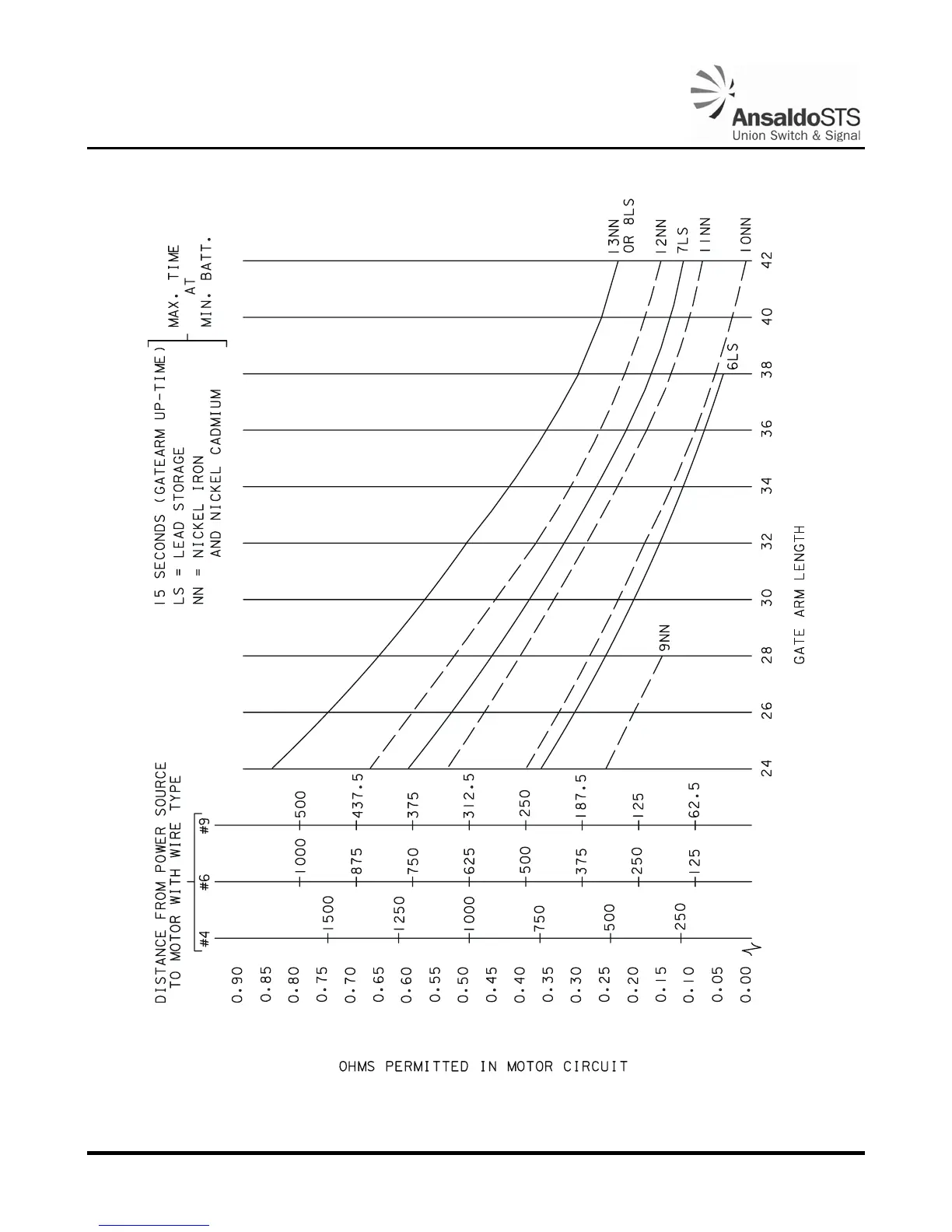

Figure 6-2 - Fifteen-Second Gate Arm Clearing Graph
