SM 6495, Rev. 7, December 2008 5-31
5.9. Model 95 Maintenance Switch
Table 5-10 presents the parts list for the Maintenance switch. Figure 5-15 and Figure 5-16 illustrate
the maintenance switch and its installation.
Table 5-10 - Model 95 Maintenance Switch Retrofit Assembly
(Refer to Figure 5-15 and Figure 5-16)
Item
Number
Part Number Description
1** M46708801 Maintenance Label
2** PN46709102 Toggle Switch Assemblyy, Retrofit
3** M46708901 Bracket, Maintenance
4** J7257070650 Switch-Momentary Pushbutton
5** J5000970114 Screw,1/4-20-X7/8 Ss Hex head
6 J4751200112 Washer, Sst Plate No1/4
7 J047521 Washer-High Collar Lock,1/4"
8 J4802110108 Nut,1/4-20 Sst Hex
9 J055643 Bag, Ziplock 5 X 7
10 M109154 Block, Terminal
11 J480300 Nut,14-24 Hex Brass Np
12 J480301 Nut,14-24 Hex Brass
13 J047818 Washer,17/64x9/16 Cop
14* J5072770010 Screw-1/4-20"X1" Fili Head
15* M46709001 Wiring Label
16* J703302 Cable Tie,3.62",Nylon,Natural
17* A043013 Wire-Seal #22 Awg, 2 Ply
18* J055639 Bag-Ziplock 8 X 10
20* J047709 Washer, Int. Lock, #8
21* J5072950106 Screw, Sst 8-32x3/8 Pan
* Part not shown in Figure 5-16
** These parts are pre-assembled.

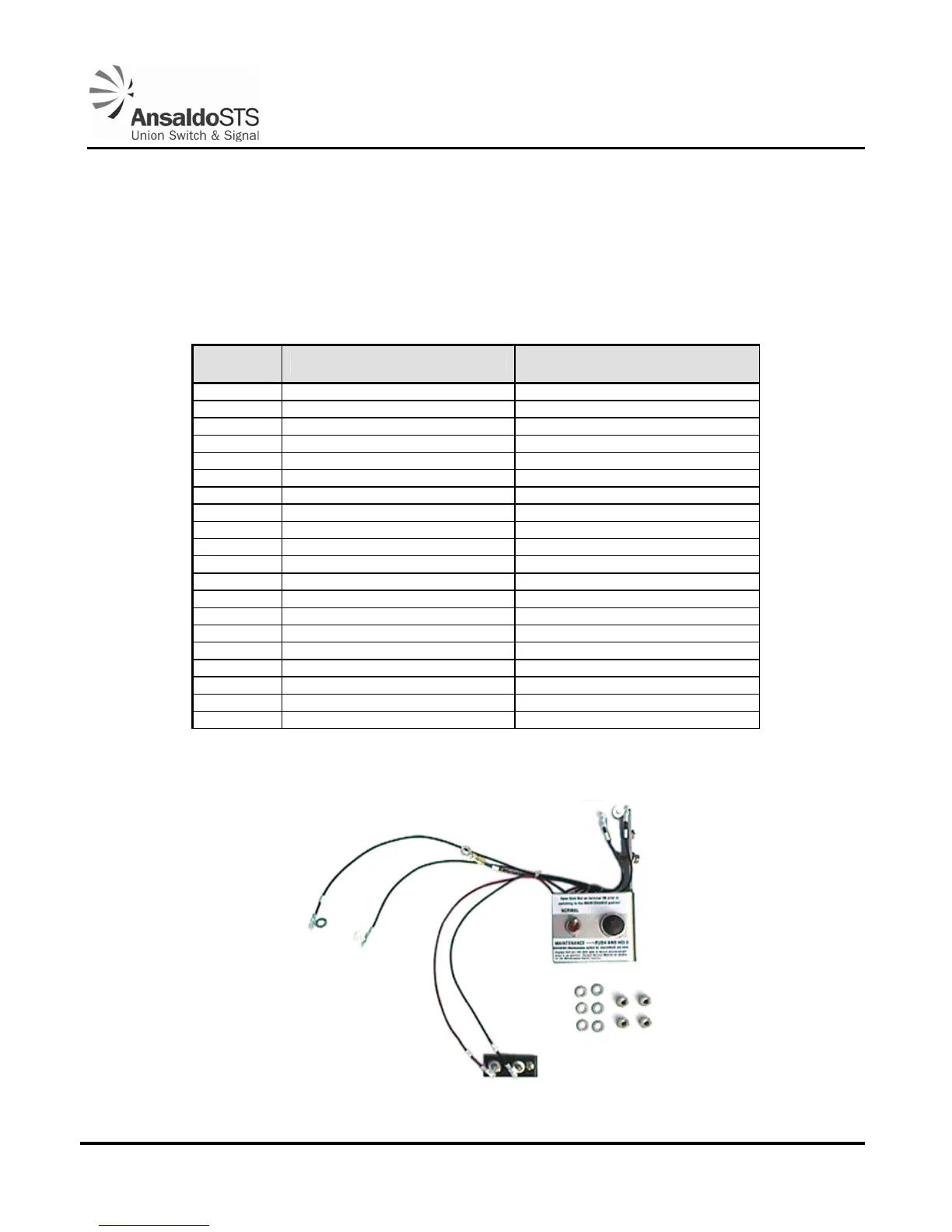

Figure 5-15 - Maintenance Switch Retrofit Assembly (N46709202)
