APC Smart-UPS VT Installation

ConnectBatteryPowerinInstallationswithBusbars
WARNING:Beforecarryingoutthestepsbelow,thesystemmustbeintotalpower
offandthebatteriesmustberemoved.

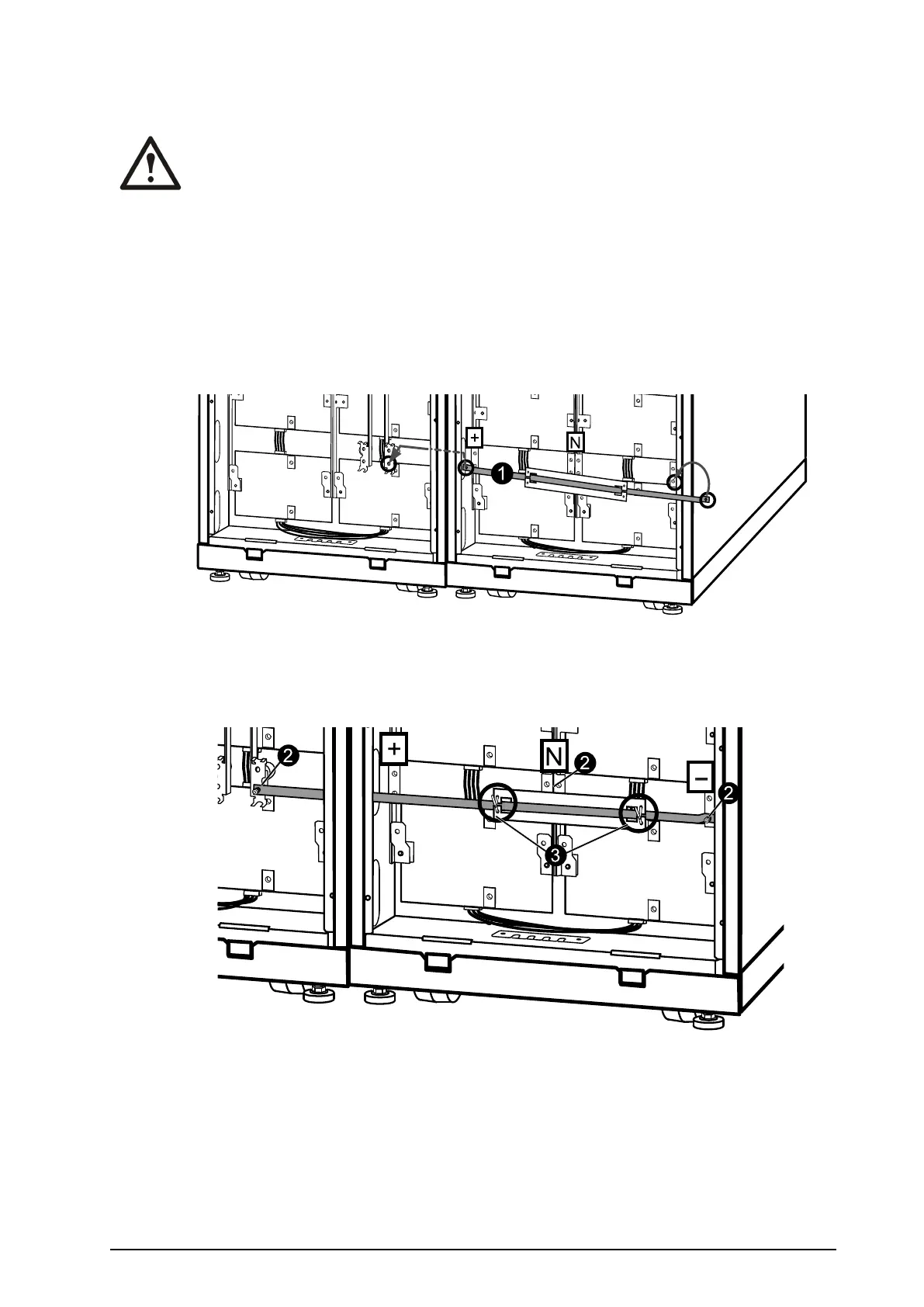

IsolatorInstallationPrinciple
TheisolatorsseparatethebayingkitbusbarfromthesixverticalbusbarsineachXRBatteryEnclosure,
andthe(+),N,and(-)busbarsintheUPS.
1.Guidethebusbarwithisolatorthroughtheadjacentsidepanels.
2.Positiontheisolatorsacrosstheverticalbusbars(Ninthisexample)andthenfastentheisolator
busbarbyusingtheprovidedM5Torxscrews.
3.Securetheisolatortoitsbusbarwithcableties.
3
2
2
2
990–1598E-001
Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation
17

APC Smart-UPS VT Specifications

General

Noise level	55 dB
Output power	24000 W
Input frequency	40/70 Hz
Maximum current	41 A
Output power capacity	30 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	559 x 813 x 1499 mm
Nominal input voltage	400 V
Certification	C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112
Product color	Black
Battery recharge time	5 h
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85078000

Weight and Dimensions

Weight	629090 g
Package weight	660000 g
