APC Smart-UPS VT Installation

EPOinSingleSystems

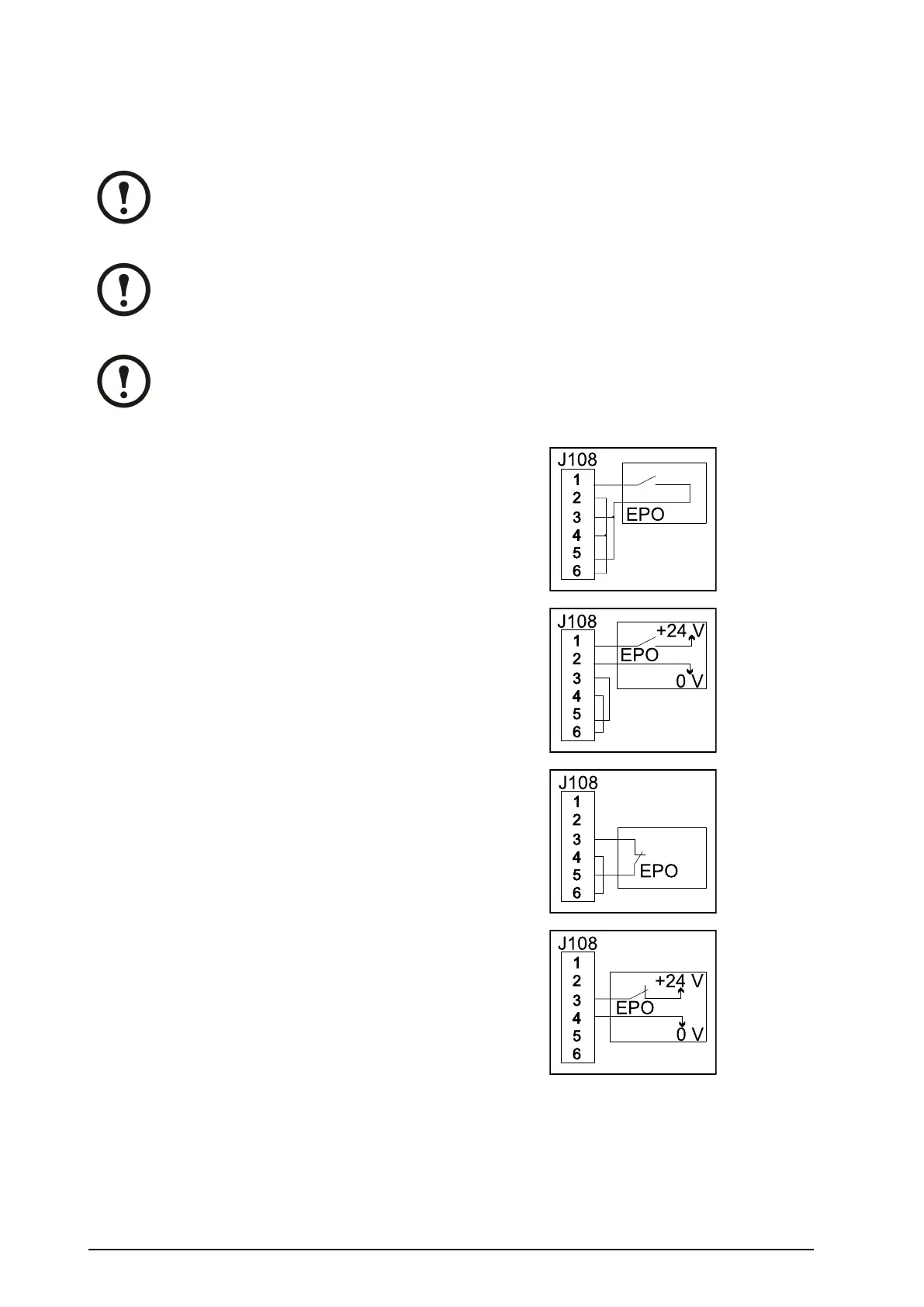

ConnecttheEPOcableusingoneofthefollowingfourwiringcongurations.
Note:Useonly1-1½mm²copperwirefortheconnectionoftheEmergencyPowerOff
(EPO)andotheroptionalequipment.
Note:TheUPSmustbeconnectedtoeitheradrycontactora24VDCEPO(Emergency
PowerOff)switch.
Note:TheexternalEPO+24VDC,1500mAcircuitcanbesuppliedthroughothervendors.
1.DryContactsNormallyOpen:EPOis
activatedwhenpin1isconnectedtopins3and
5.Connections:2-4-6,3-5,and1(Normally
Open).
2.+24VNormallyOpen:EPOisactivated
whenanisolatedSELV24VDCvoltageis
suppliedonpin1withreferencetopin2.
Connections:3-5and4-6.
3.DryContactsNormallyClosed:EPOis
activatedwhenaconnectionfrompin3to5is
opened.Connections:4-6.
4.+24VNormallyClosed:EPOisactivated
whenaSELV24VDCvoltageisremoved
frompin3withreferencetopin4.
34
Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation
990–1598E-001

APC Smart-UPS VT Specifications

General

Noise level	55 dB
Output power	24000 W
Input frequency	40/70 Hz
Maximum current	41 A
Output power capacity	30 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	559 x 813 x 1499 mm
Nominal input voltage	400 V
Certification	C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112
Product color	Black
Battery recharge time	5 h
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85078000

Weight and Dimensions

Weight	629090 g
Package weight	660000 g
