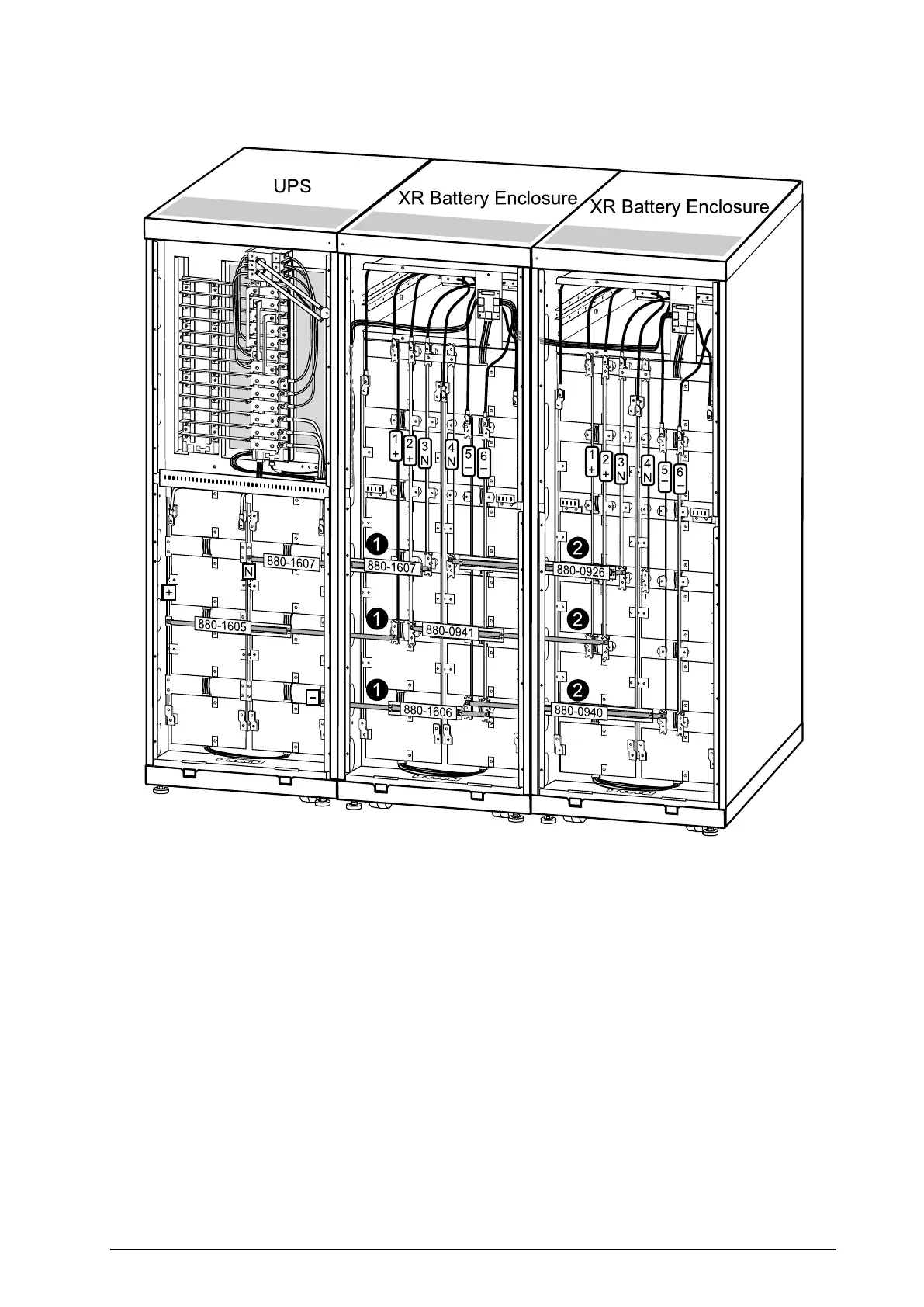

InstallBusbarsin523mm(20.59in)UPSSystemwiththeUPSPlaced

totheRight(seenfromthefront)

XR Battery Enclosure

UPS

1.InstallthefollowingbayingkitbusbarsbetweentheUPSandXR1:

880-1607betweenverticalbusbarNontheUPSandbusbar3onXR1

880-1605betweenverticalbusbar(+)ontheUPSandbusbar1onXR1

880-1606betweenverticalbusbar(-)ontheUPSandbusbar6onXR1

2.InstallthefollowingbayingkitbusbarsbetweenthetwoXRBatteryEnclosures:

880-0926betweenverticalbusbar4onXR1andverticalbusbar3onXR2

880-0941betweenverticalbusbar2onXR1andverticalbusbar2onXR2

880-0940betweenverticalbusbar5onXR1andverticalbusbar5onXR2

990–1598E-001

Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation

Other manuals for APC Smart-UPS VT

Questions and Answers:

Need help?

Do you have a question about the APC Smart-UPS VT and is the answer not in the manual?

General

Noise level	55 dB
Output power	24000 W
Input frequency	40/70 Hz
Maximum current	41 A
Output power capacity	30 kVA
Emergency Power Off (EPO)	Yes
Battery type	VRLA
Dimensions (WxDxH)	559 x 813 x 1499 mm
Nominal input voltage	400 V
Certification	C-tick, CE, EN 50091-2, EN/IEC 62040-3, IEC 61000-3-2, IEC 61000-3-3, ISO 14001, ISO 9001, VFI-SS-112
Product color	Black
Battery recharge time	5 h
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m
Storage temperature (T-T)	-15 - 45 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	85078000
