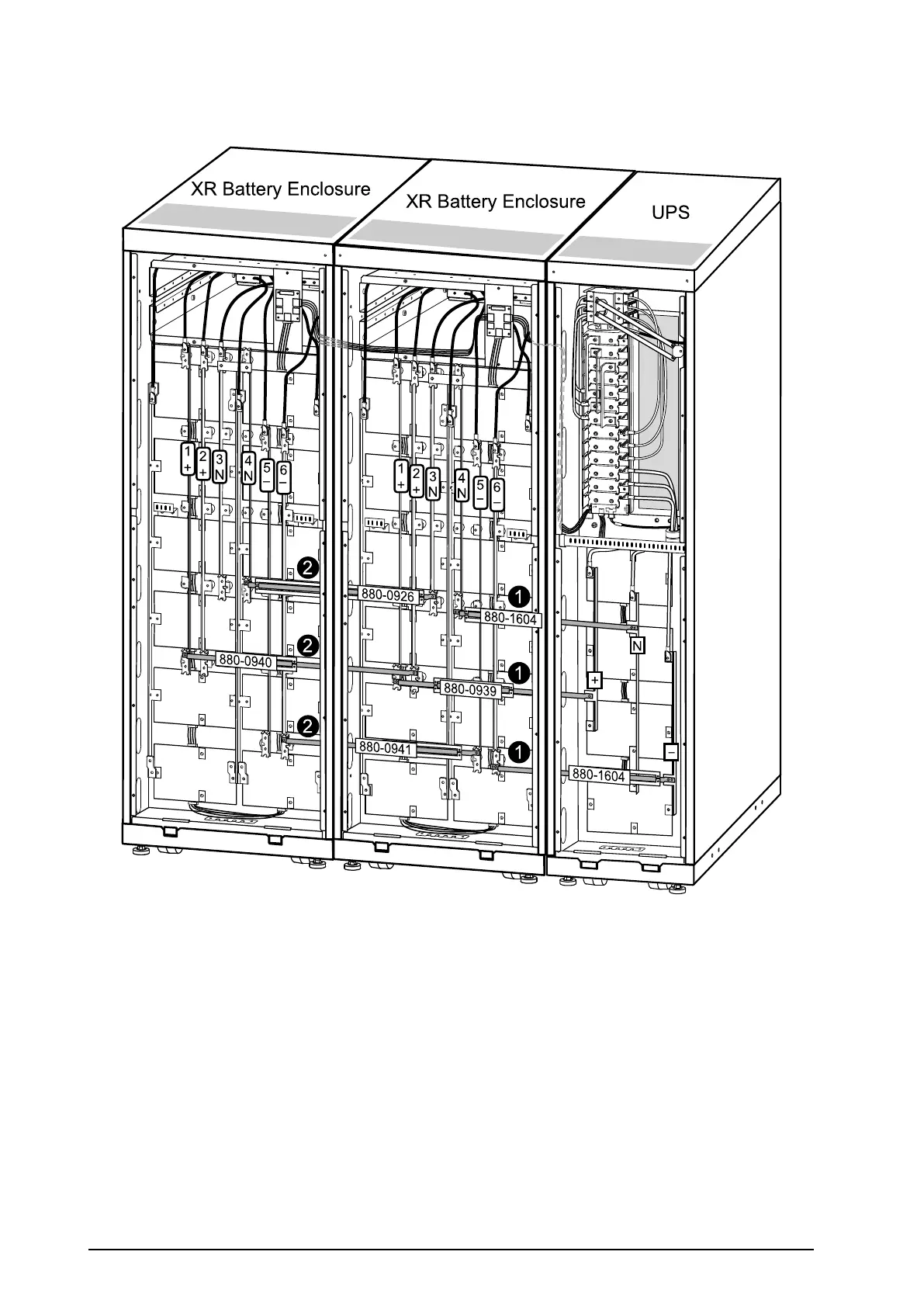

InstallBusbarsin352mm(13.85in)UPSSystemwiththeUPSPlaced

totheRight(seenfromthefront)

XR Battery Enclosure

UPS

1.InstallthefollowingbayingkitbusbarsbetweentheUPSandXR1:

880-1604betweenverticalbusbarNontheUPSandbusbar4onXR1

880-0939betweenverticalbusbar(+)ontheUPSandbusbar1onXR1

880-1604betweenverticalbusbar(-)ontheUPSandbusbar6onXR1

2.InstallthefollowingbayingkitbusbarsbetweentwoXRBatteryEnclosures:

880-0926betweenverticalbusbar3onXR1andbusbar4onXR2

880-0940betweenverticalbusbar2onXR1andbusbar1onXR2

880-0941betweenverticalbusbar5onXR1andbusbar6onXR2

Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation

990–1598E-001
