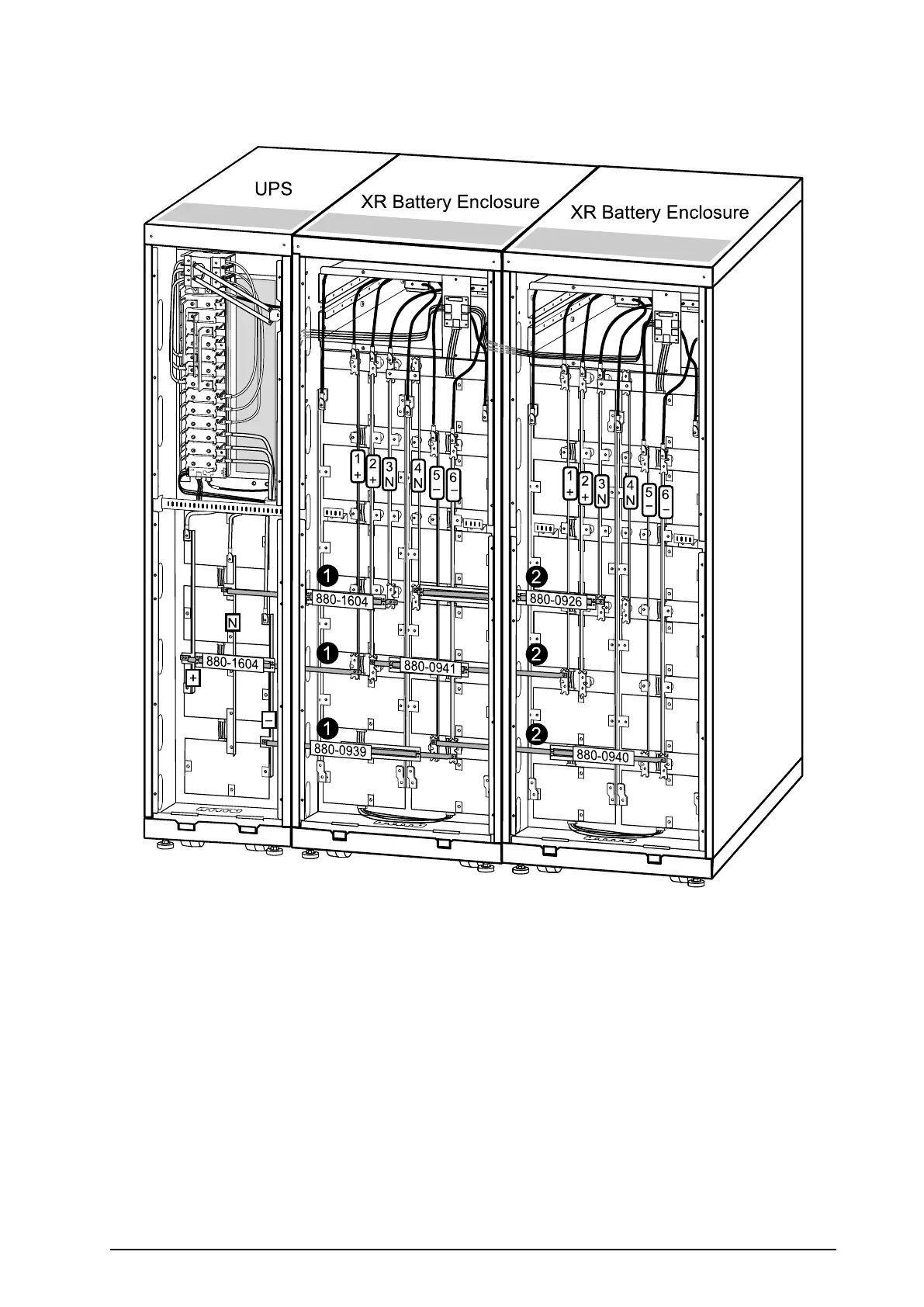

APC Smart-UPS VT - Install Busbars in 352 mm (13.85 in) UPS System with the UPS Pla

InstallBusbarsin352mm(13.85in)UPSSystemwiththeUPSPlaced
totheLeft(seenfromthefront)
1
1
1
2
2
2
XR Battery Enclosure
XR Battery Enclosure
UPS
1.InstallthefollowingbayingkitbusbarsbetweentheUPSandXR1:
880-1604betweenverticalbusbarNontheUPSandbusbar3onXR1
880-1604betweenverticalbusbar(+)ontheUPSandbusbar1onXR1
880-0939betweenverticalbusbar(-)ontheUPSandbusbar6onXR1
2.InstallthefollowingbayingkitbusbarsbetweentwoXRBatteryEnclosures:
880-0926betweenverticalbusbar4onXR1andverticalbusbar3onXR2
880-0941betweenverticalbusbar2onXR1andverticalbusbar1onXR2
880-0940betweenverticalbusbar5onXR1andverticalbusbar6onXR2
990–1598E-001
Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation
21
