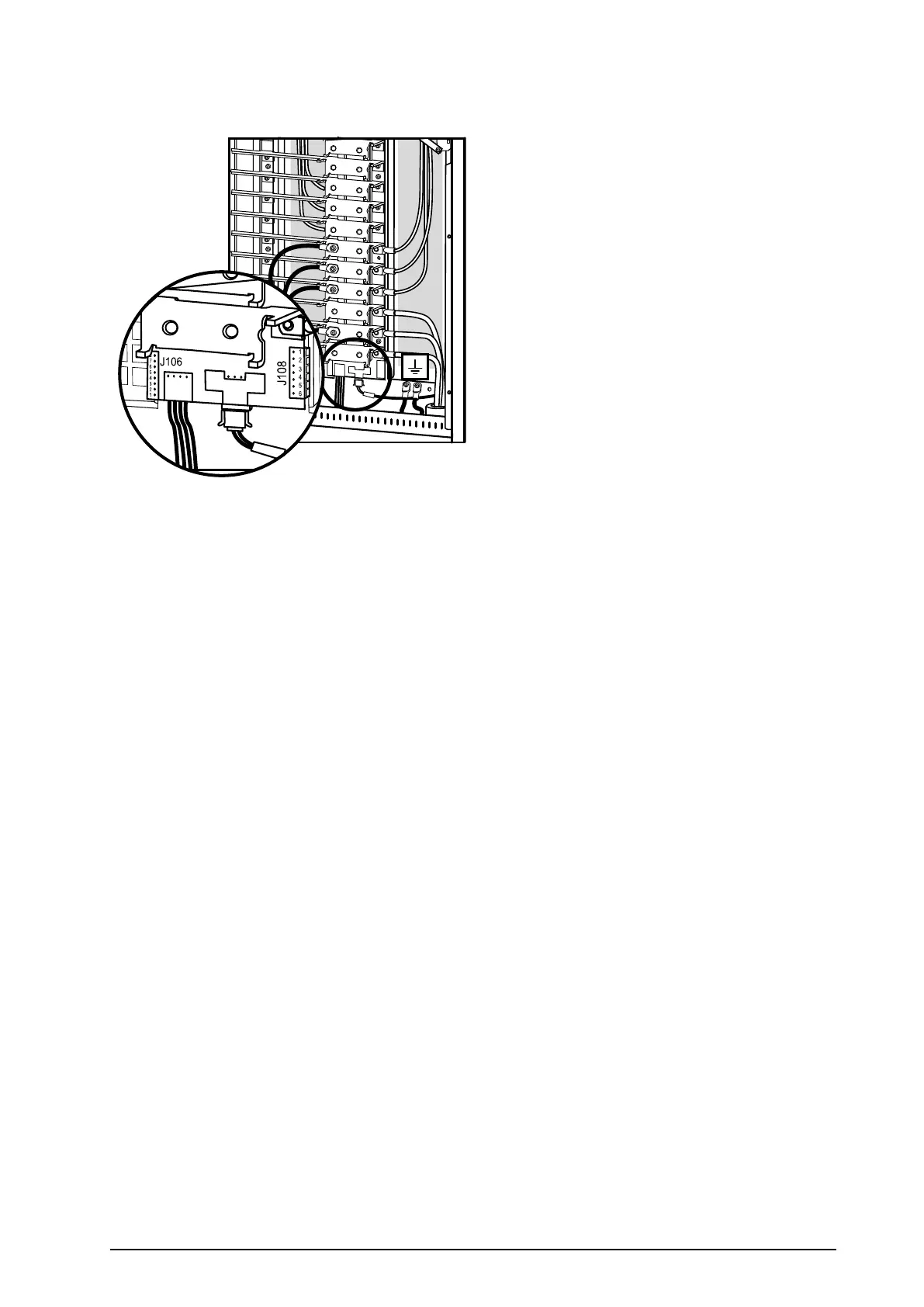

OverviewofPinConnections

J108pinconnections:

1:NormallyopenEPO

2:NormallyopenEPOreturn

3:NormallyclosedEPO

4:NormalyclosedEPOreturn

5:+24VSELVsupply

6:SELVground

J106pinconnections:

8:Ext.chargingcontrolreturn

7:Externalcontrolofcharging

6:Q3activereturn

5:Q3active

4:Batterymeasurementsupply*

3:Batteryunitquantity*

2:Max.batterytemperature*

1:Batterymeasurementreturn*

*ShouldbeusedwithAPCXRBatteryEnclosures

J106

Pins1to4areforbatterymeasurement(onlyapplicabletoMGEGalaxy3500XRBatteryEnclosures).

Pins5and6areforexternalmaintenancebypassQ3(auxiliaryswitchN/Ctype).WhenQ3isclosed,

signalsarefedbacktotheUPScontroller.

Pins7and8areforexternalchargecontrol.When7and8areclosed,theUPSchargesbatterieswitha

pre-denedpercentage(0–25–50–75–100%)ofthemaximumchargingpower.Tobeusedingenerator

applications,orifspecialcodesrequirecontrolofcharging.WhenQ3isclosed,signalsarefedback

totheUPScontroller.

990–1598E-001

Smart-UPS™VT10–30kV A208/220VSingleandParallelInstallation
