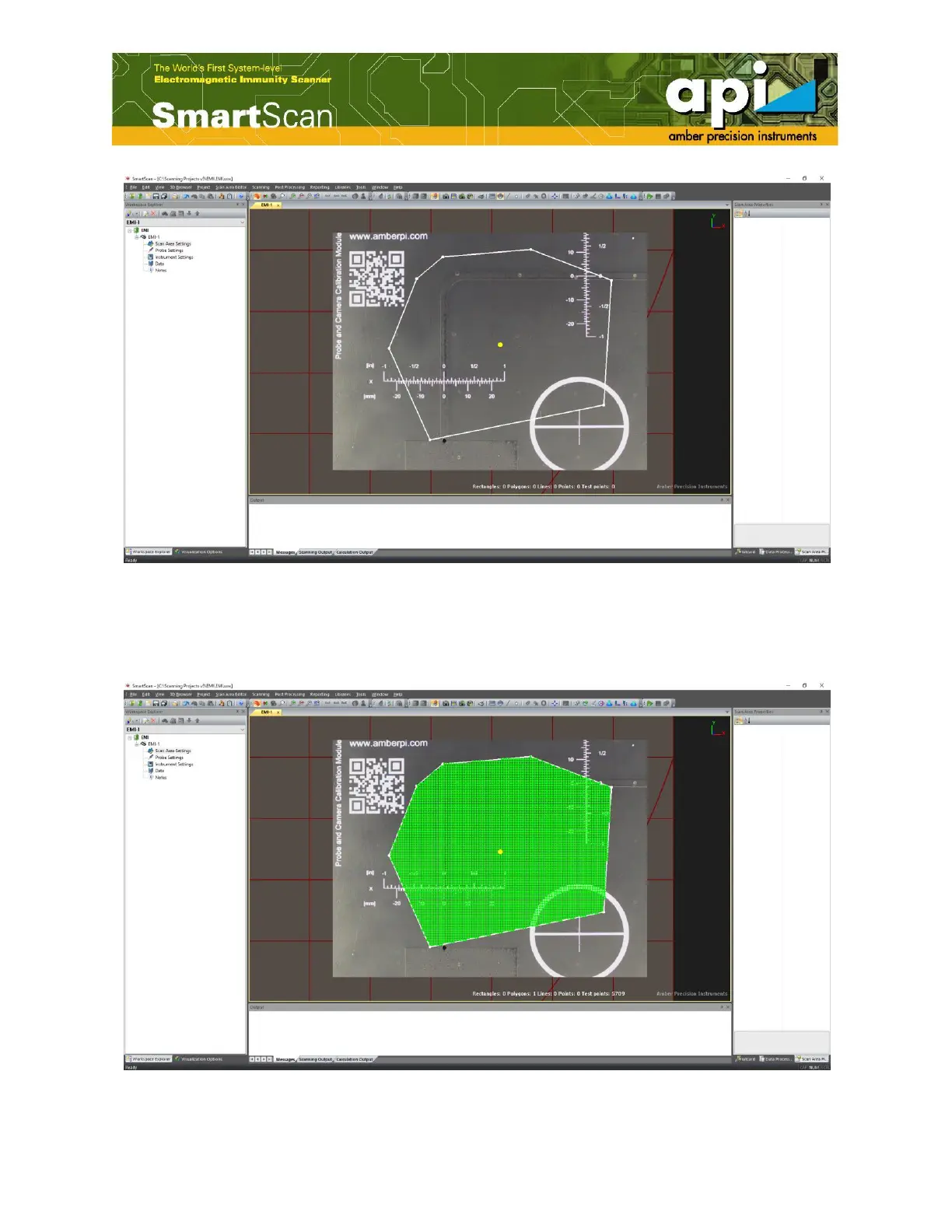

Figure 15: Click left mouse button to define polygon scan area.

c. Click right mouse button when last point (the 7th point in this case) is defined to quit the

polygon mode. The polygon is filled by scan points that are spaced by 1 mm x 1 mm.

Figure 16: Polygon scan area as defined.
