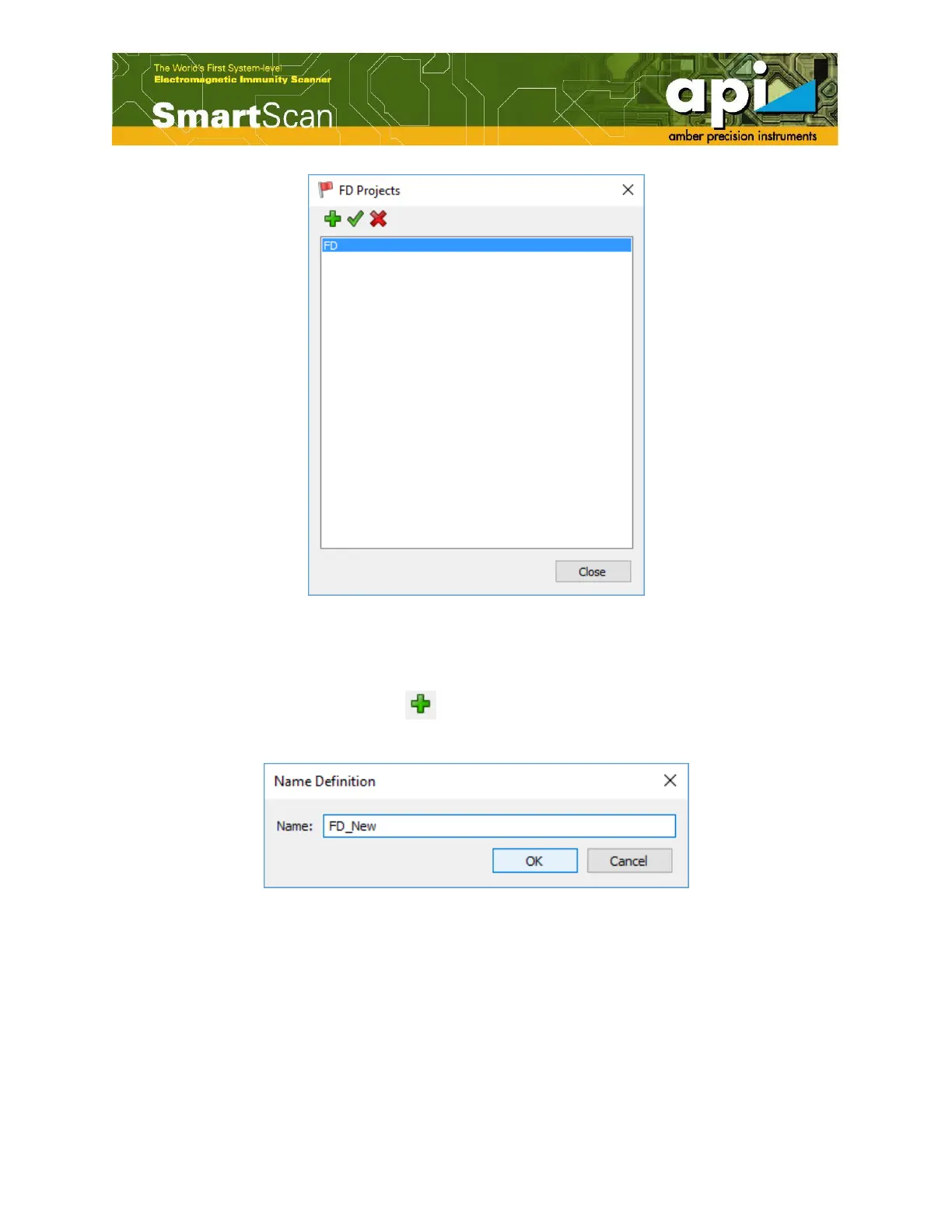

Figure 39: “FD Project” window.

b. Click on “New FD Project” icon ( ), assign a name for the project, and click on “OK”.

The new FD project will be shown in the project window.

Figure 40: Define the name of FD project.
