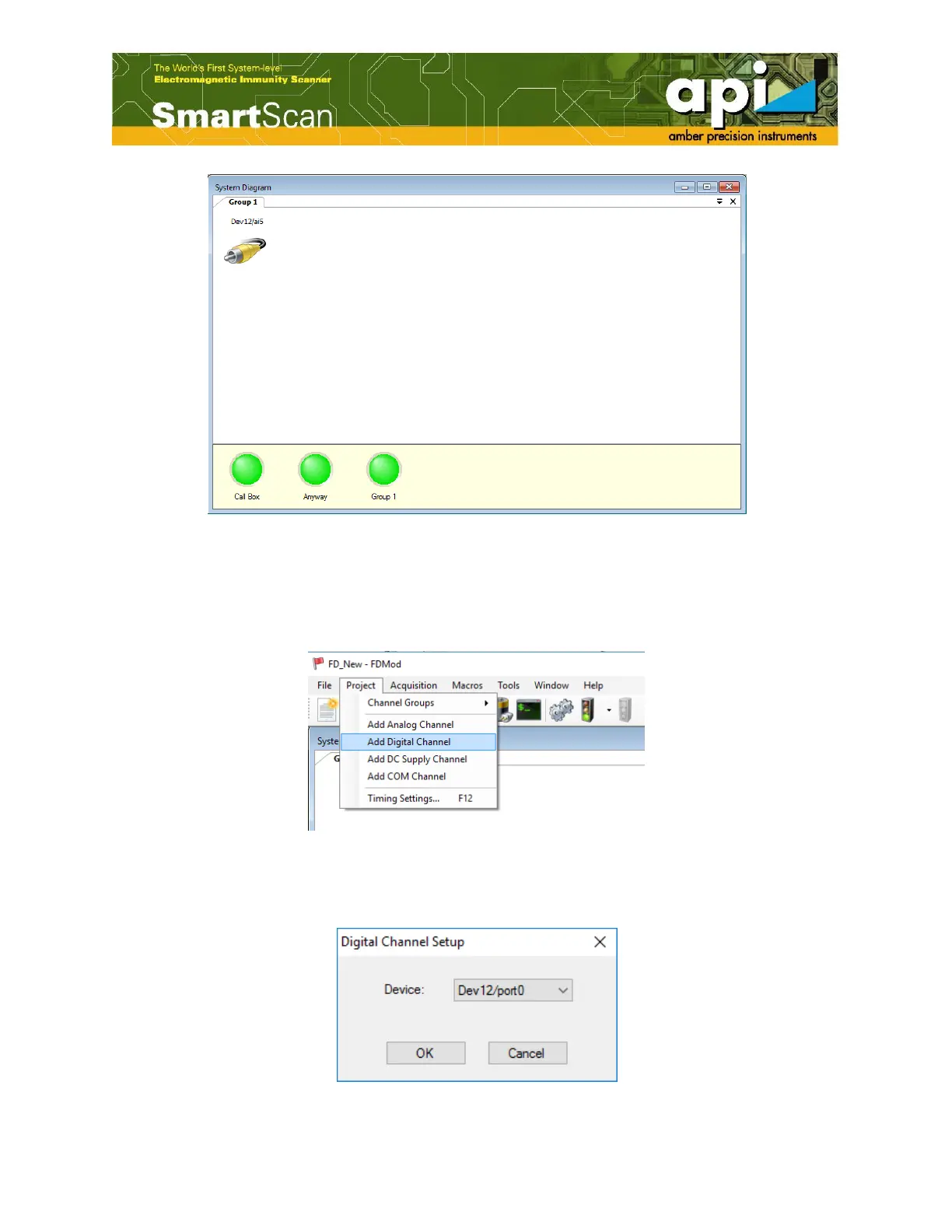

Figure 53: Analog channel is added to the group.

Set up Digital Channel

a. Go to “Project” and click on “Add Digital Channel”.

Figure 54: Add digital channel.

b. Select the device port.

Figure 55: Select the device port.
