API SmartScan 350

To Next Page

To Previous Page

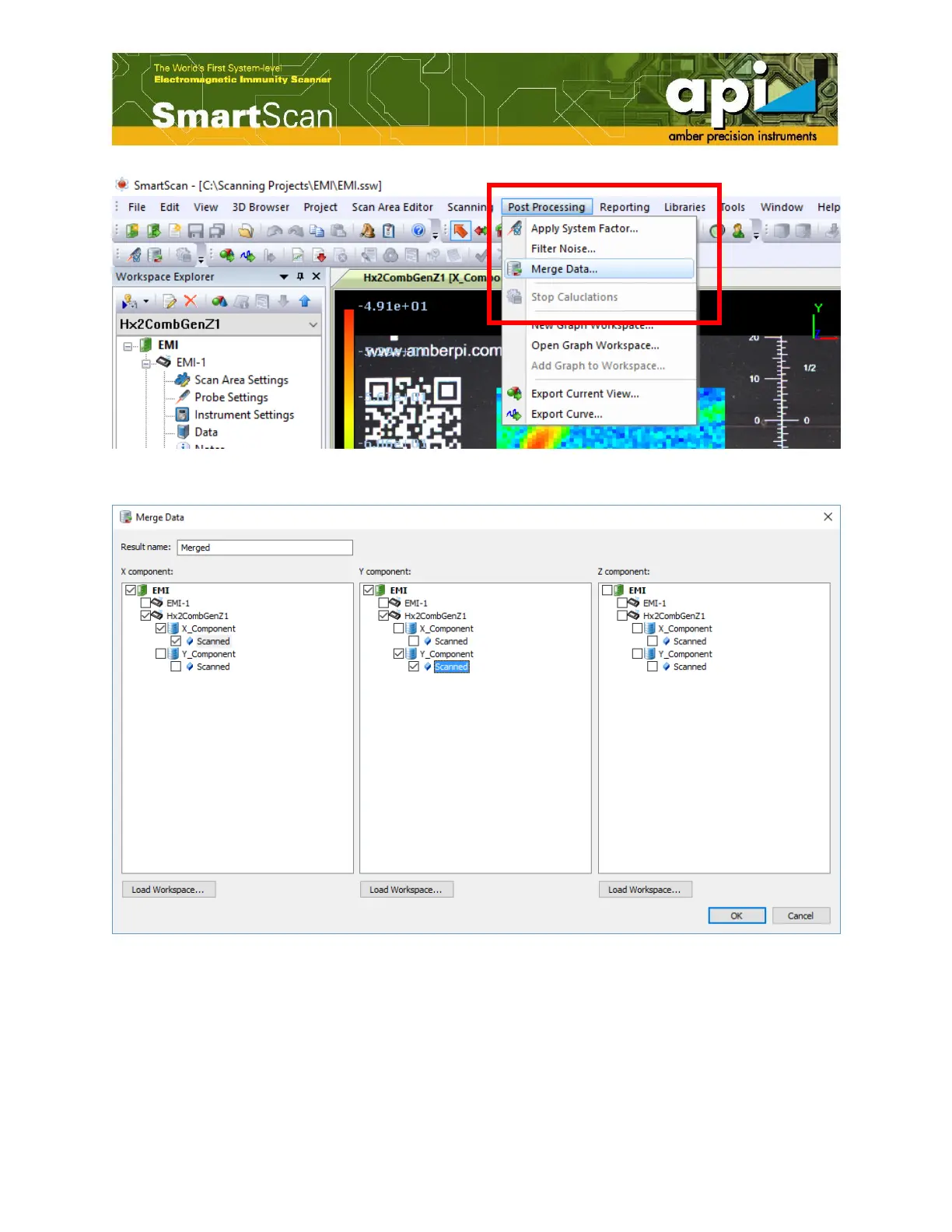

Figure 102: Merge data.

Figure 103: Merge data window.

By selecting the scanned X-component and Y-component, and naming the data set, the user will

find a new data set which contains the magnitude of the scanned field.
