Apogee ensemble User Manual

Front Panel Controls
Many Ensemble settings can be controlled from the front panel. For full control over all settings, use the Maestro
software (page 39).

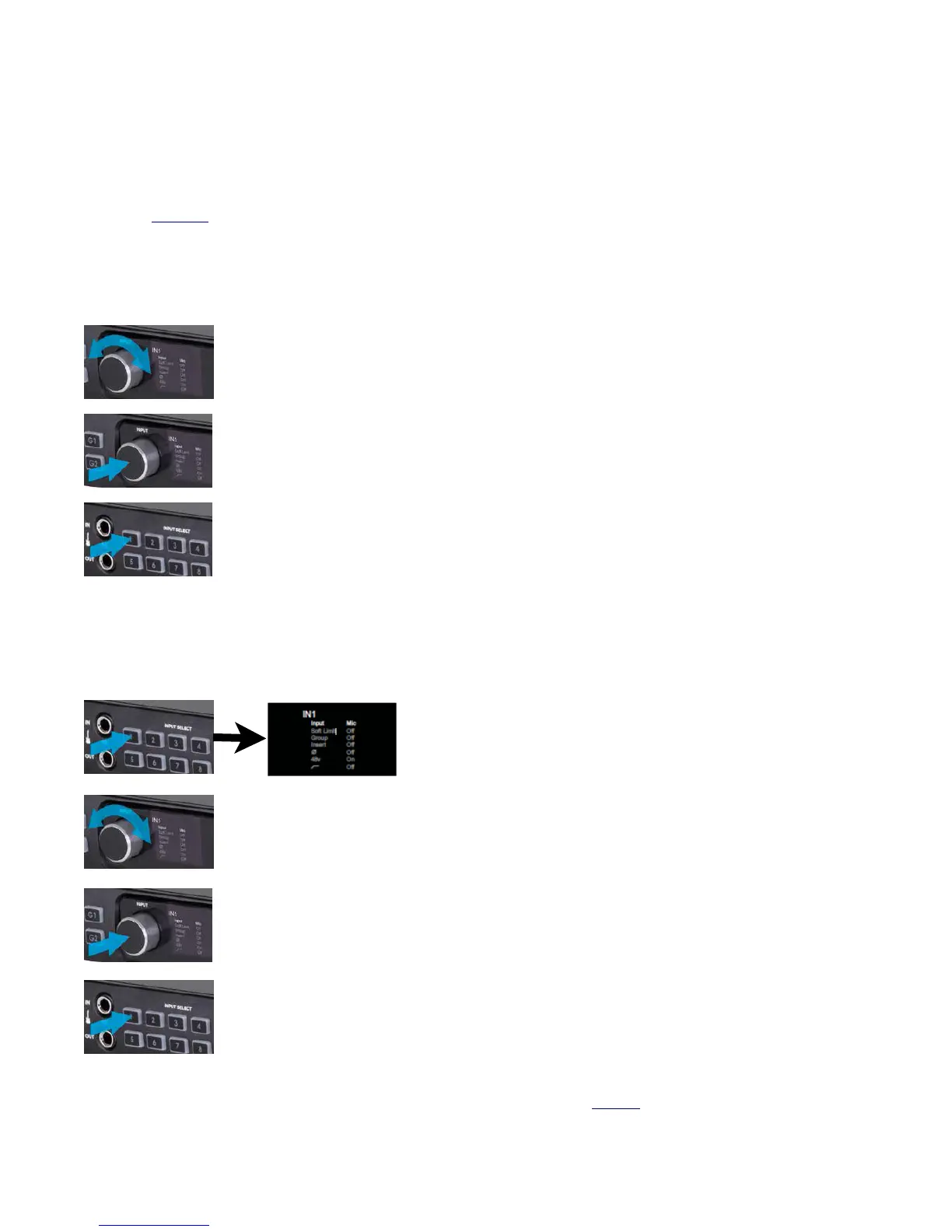

Adjust the Input Gain
1. Turn the Input Controller knob to adjust the input gain for the selected channel.
2. Select a different channel by pressing the Input Controller knob repeatedly until the
desired input is highlighted.
3. Alternatively, press one of the Input Select buttons to jump directly to that input.
Accessing other Input Settings:
1. Hold an Input Select button for at least 1 second to access
the Input Settings screen.
2. Turn the Input Controller knob to navigate up and down and highlight the different
parameters
3. Press the Input Controller knob to change a parameter to a different setting.
4. To exit the Input Settings screen, hold the Input Select button for at least 1 second.
Ensemble will automatically exit after idling for 15 seconds.
For more information on the parameters of the Input Settings screen, see page 9.
14

Apogee ensemble Specifications

General

Type	Audio Interface
Simultaneous Channels	36
Phantom Power	Yes
Word Clock	Yes
Bit Depth	24-bit
Digital Inputs	ADAT, S/PDIF
Digital Outputs	ADAT, S/PDIF
Connectivity	FireWire
Inputs	8 analog
Outputs	8 analog
