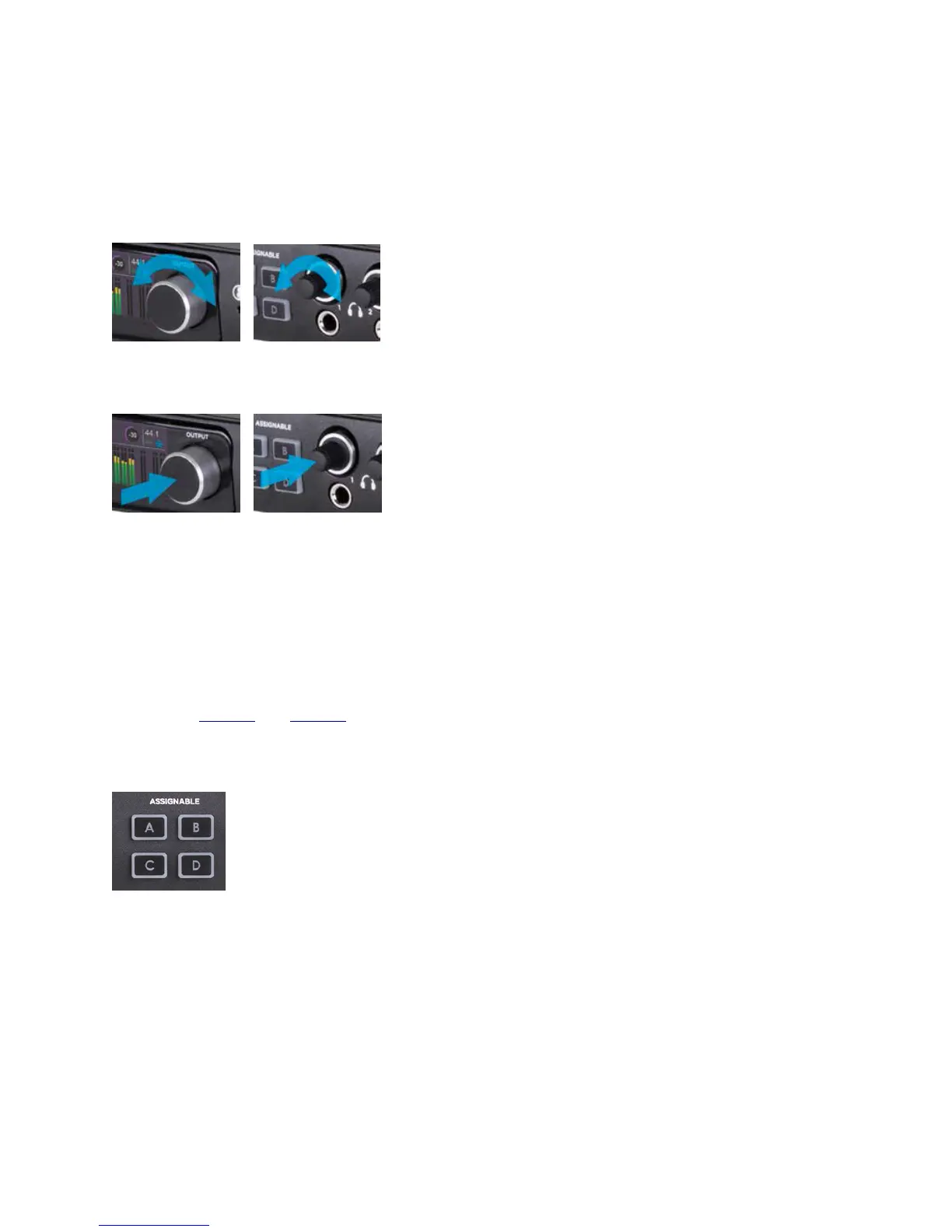

Adjust Output Volume
1. Turn the Output Controller, Headphone 1, or Headphone 2 knob to adjust the respective output level.
2. Press the Output Controller, Headphone 1, or Headphone 2 knob to toggle mute on/off.
Assignable Buttons
Assignable buttons A, B, C, & D can be programmed to perform different functions. Press an Assignable button
to perform it’s programmed function.
•
Programming of the Assignable Buttons can only be done in the Maestro application’s Device Settings tab
window. See page 43 and page 32 for more detailed information.
The factory default settings are:
A - Talkback - must hold button down
B - Clear Meters
C - Toggle G1/G2 output source between “Thru” and “From Software”.
D - Toggle Mute function between Monitor Out and Headphones outputs.
15
