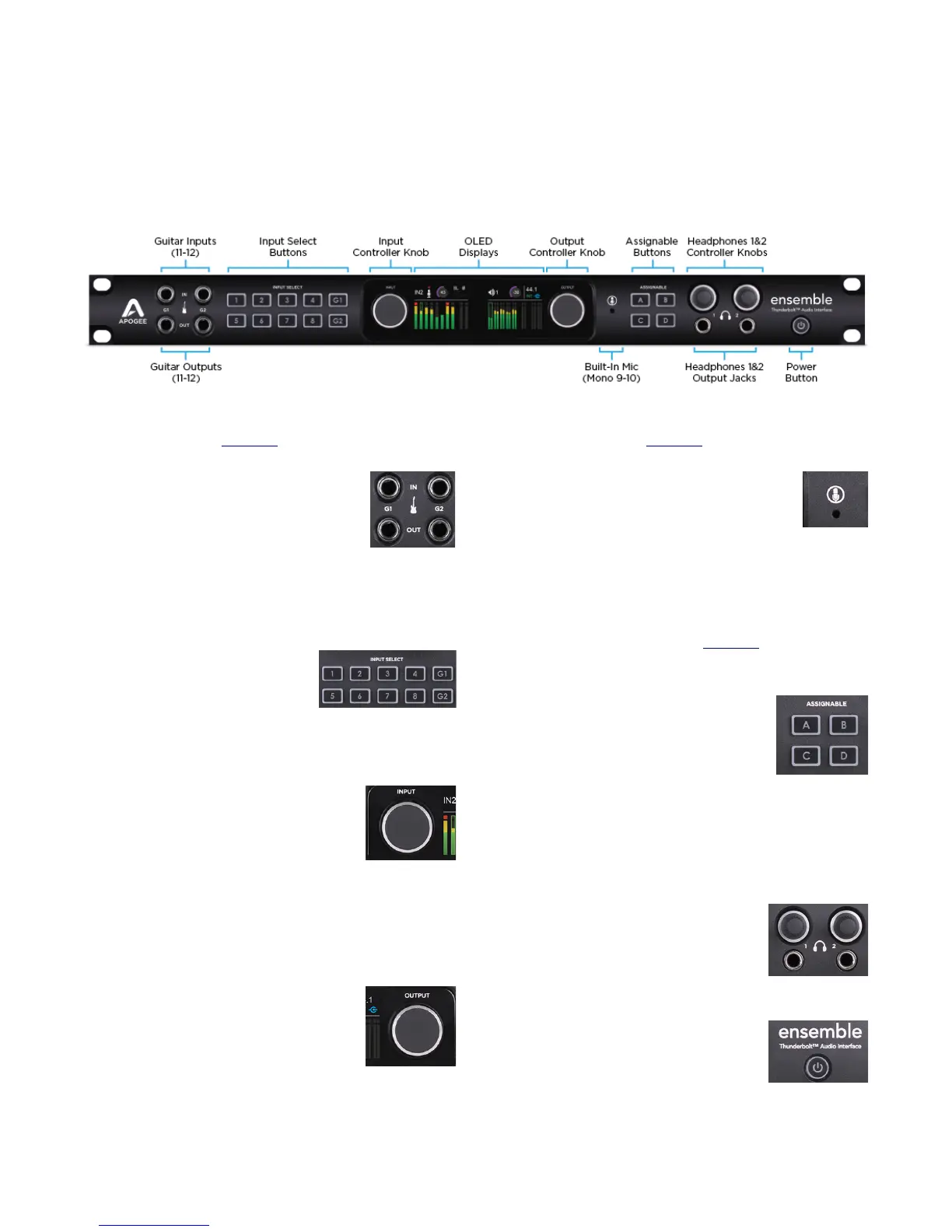

Ensemble Thunderbolt Panel Tour
Front Panel
1. Guitar I/O (see page 22):
a. Inputs ch 11/12: Connect high
impedance (Hi-Z) instruments
such as guitar or bass.
b. Outputs ch 11/12: Instrument
level outputs for connecting
directly to a guitar amplifier or
Hi-Z pedal effects/processor.
2. Input Select Buttons:
a. Push to select an input
b. Hold to view the Input
Settings screen
3. Input Controller Knob:
a. Turn to adjust gain. When
viewing input settings, turn to
move to the next parameter.
b. Push to select the next input.
When viewing input settings,
push to change a parameter’s
setting.
4. Output Controller Knob:
a. Turn to adjust the volume of
your monitor speakers.
b. Push to toggle your monitor
speakers mute On/Off
5. Built-In Mic (see page 29):
a. The built-in mic can be recorded,
or used for the talkback function.
b. Is a mono source. The same
signal is duplicated on channels
9 and 10.
6. Assignable Buttons:
Programmed from Maestro software’s Device
Settings tab window (see page 43). Factory
default settings are:
a. Talkback - must hold button
down to use (momentary)
b. Clear Meters
c. Toggle G1/G2 output source
between “Thru” and “From
Software”.
d. Toggle Mute function between Monitor Out
and Headphones outputs.
7. Headphones 1&2 Controller Knobs:
a. Turn to adjust headphone
output volume
b. Push to toggle mute on/off
8. Power Button:
7
