Apogee ensemble User Manual

Guitar Outputs
See the Guitar I/O section on page 22.

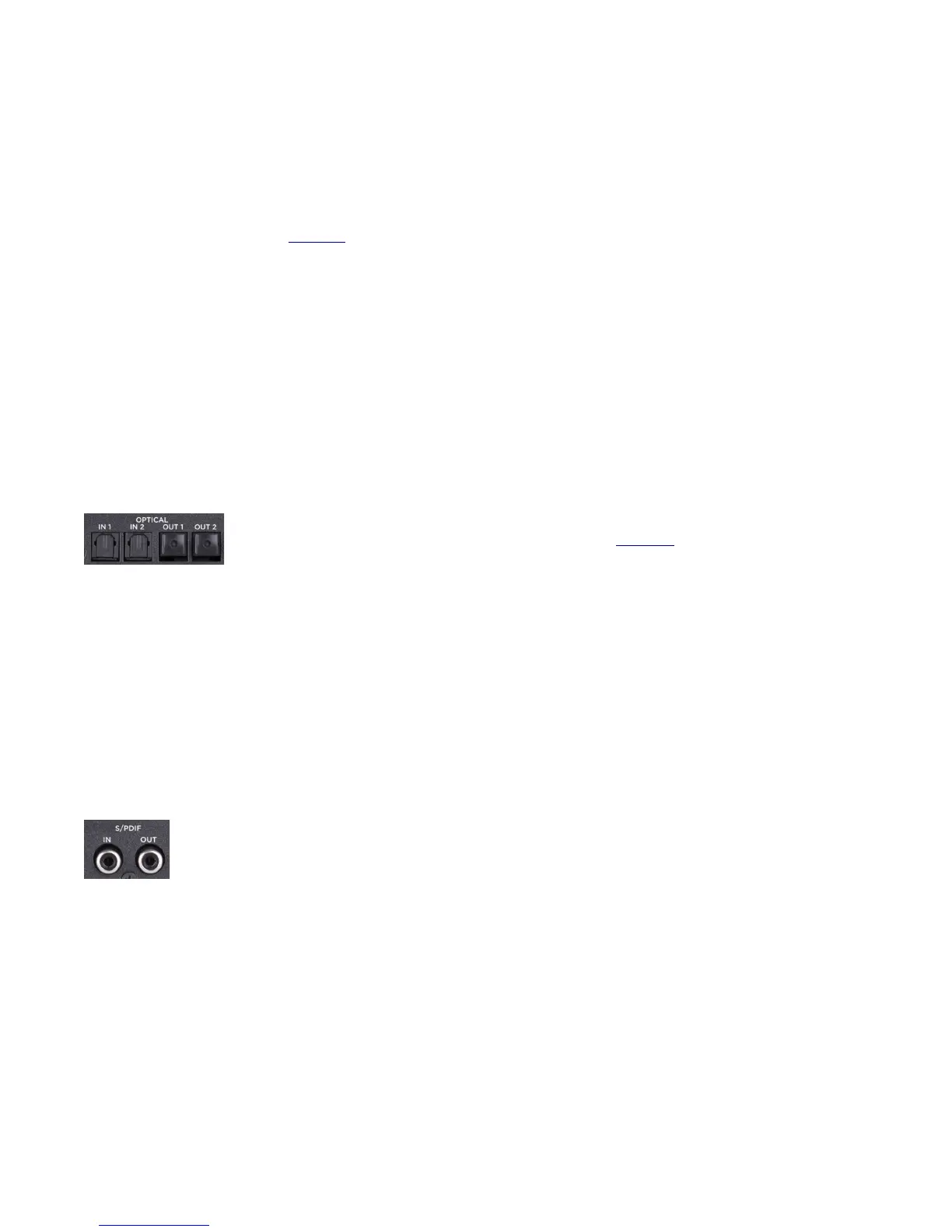

Digital I/O
Ensemble provides multiple ports of digital inputs and outputs, providing up to 18 channels of digital I/O for
connectivity to your digital gear.
Optical
Two pairs of optical (Toslink) in and out ports are provided. These ports can be
configured independently via the Maestro software (page 47) to use ADAT/SMUX or S/
PDIF protocols, and are capable of sample rates between 44.1 - 96k.
ADAT
44.1 - 48k Sample Rates
- 8 channels of audio provided per port
- 16 channels total when using both ports
SMUX
88.2 - 96k Sample Rates
- 4 channels of audio provided per port
- 8 channels total when using both ports
S/PDIF
44.1 - 96k Sample Rates
- 2 channels of audio provided per port
- 4 channels total when using both ports
Coaxial
A coaxial digital in and out port are provided and are capable of sample rates between 44.1 - 192k.
S/PDIF
44.1 - 192k Sample Rates
- 2 channels of audio provided
30

Apogee ensemble Specifications

General

Type	Audio Interface
Simultaneous Channels	36
Phantom Power	Yes
Word Clock	Yes
Bit Depth	24-bit
Digital Inputs	ADAT, S/PDIF
Digital Outputs	ADAT, S/PDIF
Connectivity	FireWire
Inputs	8 analog
Outputs	8 analog
