13. Attach the overhead hoist to the engine. There are lift hooks provided on each engine.
14. Slowly and gently raise the engine through the hood area with the overhead hoist.
Watch for any wiring they may have been overlooked in disconnecting which may in-
clude some optional accessory kit wiring. Some manoeuvring is required as the engine
does not necessarily come straight up and out. Avoid damage to any other components
as well as the upper body.
15. Place the engine on a clean work bench for service required.
16. Remove the engine from the engine mounting plate.
Installing The Briggs 650/700 Engine

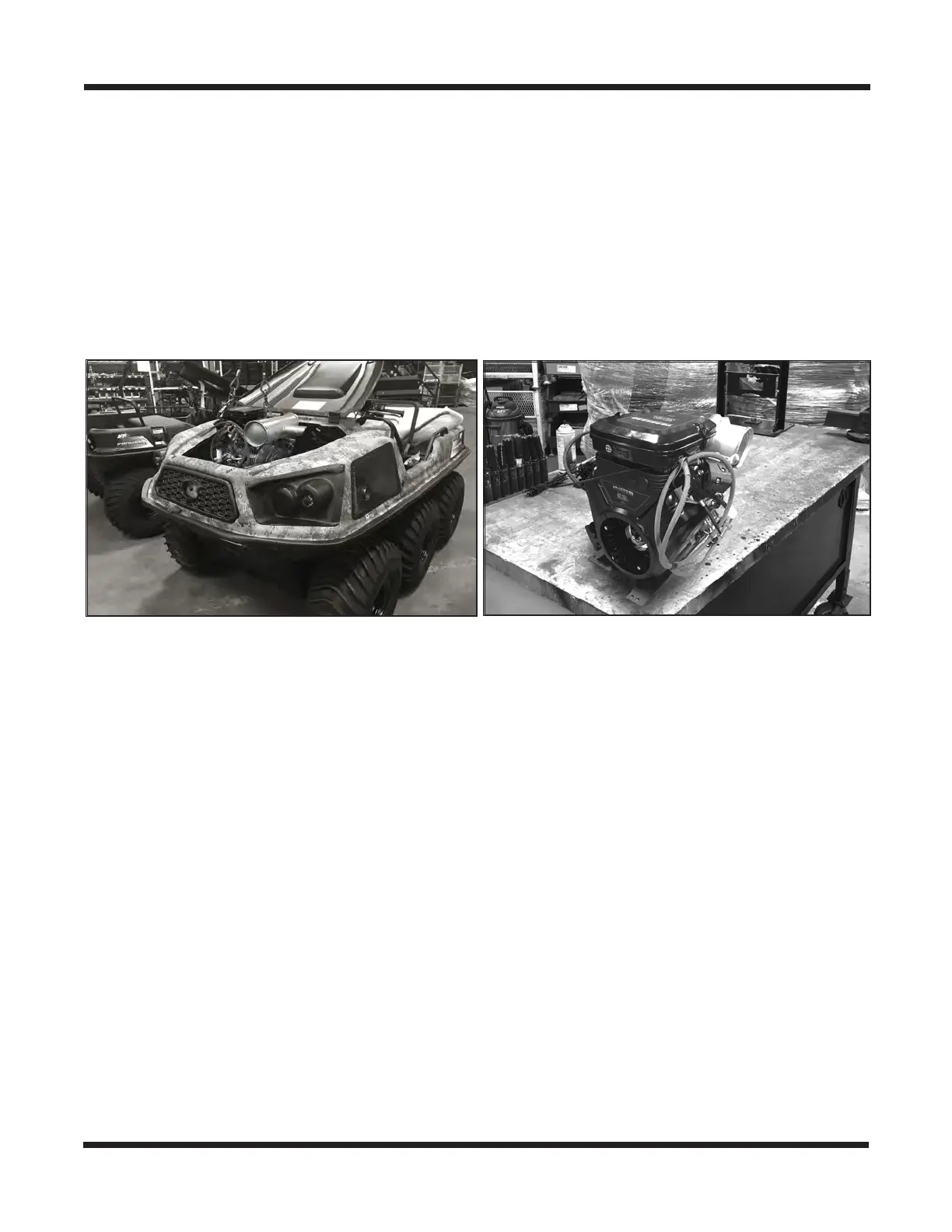

1. Install the engine mount plate to the engine block securing with four (4) HWHCS 5/16-
18x2.00 GR8 YZ and four (4) HXFNN, 5/16-18 GR8 YZN. Torque to 295 in-lbs (dry,
non-lubricated condition).
2. Slowly and gently lower the engine through the hood area. Some maneuvering is re-
quired as the engine does not necessarily drop straight in. Avoid damage to any vehicle
components as well as the upper body.
3. Align the engine mounted frame holes with the holes in the lower main frame and rein-
stall each of the four (4) HHCS 3/8-16x2.0 GR5 BNZ & 108-06 Lock washers. Secure
and torque each fastener to 31 FT-LBS (Dry, Non-Lubricated Condition)
4. Reconnect all engine sensor wiring between engine and main vehicle wire harness
(700 models only).
5. Reconnect engine connector plugs in the main wire harness located at the front of the
engine.
6. Reconnect fuel vent from fitting on engine.
7. Reconnect the intake hose from the air filter cannister.
