38 CS175-275-575-875 Installation Guide
9 WIRING THE OUTPUTS
9.1 Wiring the outputs

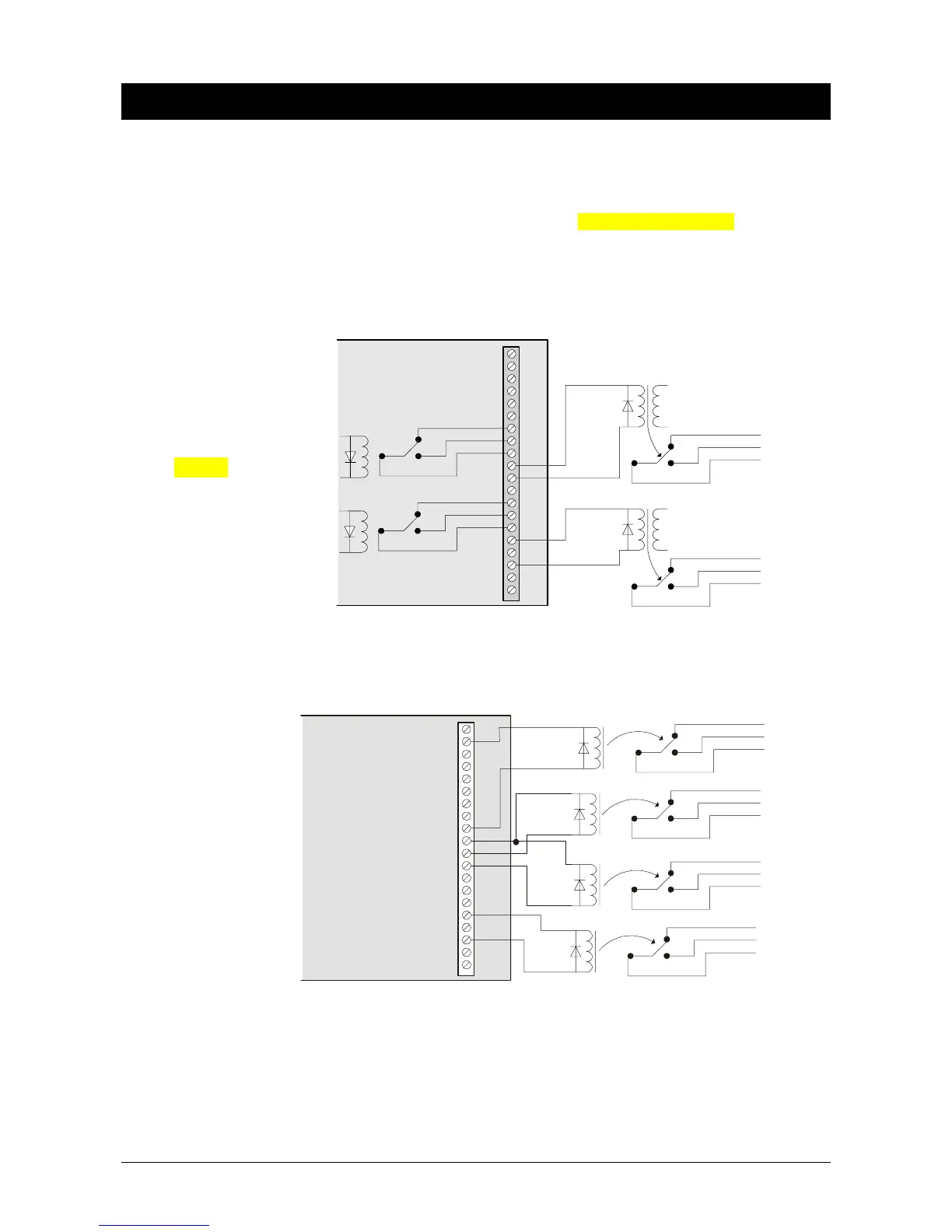

The amount and type of available outputs is different per panel type. See
Introducing the
CSx75 system
on page 7 for more information.The CS875 and CS575 have two open
collector outputs and two relay outputs. The CS275 has four open collector outputs and
the CS175 has only two open collector outputs.
The open collector outputs control additional relays and are limited to 40 mA maximum.
CS875
CS575
c d
c d
CS275
d
d
d
d
DATA
AUX+
COM
I
N
T
COM
EXT
R1NC
R1NO
R
1
C
AUX+
OUT2
COM
R
3
N
C
R3NO
R3C
AUX+
COM
OUT4
TAMPER
TAMPER
DATA
AUX+
COM
I
N
T
COM
EXT
O
U
T
1
AUX+
OUT2
OUT3
AUX+
COM
OUT4
TAM PER
TAMP ER
