CS175-275-575-875 Installation Guide 91
16 SETTING UP RF ZONES – RX8I4-16I4
The RX-Series receiver modules add wireless capabilities to a CSx75 controller. There
are eight zones for an RX8i4 and 16 zones for an RX16i4. Adding a receiver module
makes a CSx75 control panel compatible with the RX wireless transmitters and keychain
touchpads or keyfobs.

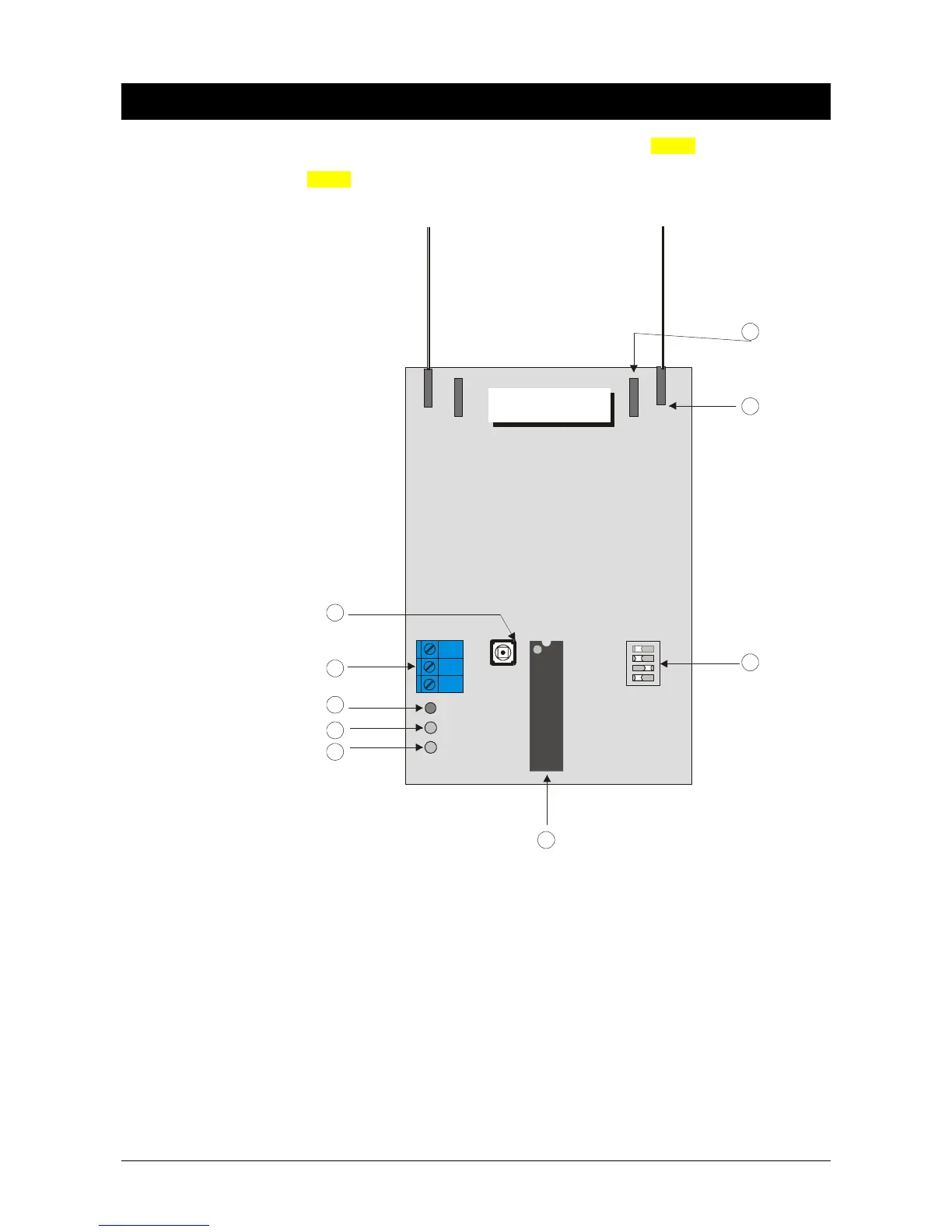

1
Processor
4
Bus supervision LED
7
Not used
2
No function
5
Keypad bus connection
8
Antenna
3
Wireless communication
LED
6
Lid tamper
9
Dip switches
16.1 Setting the DIP switches
The position of all switches is only updated when the RX8i4-16i4 is powered up. Before
you change the position of these switches you must power down the expander.
RX8i4-16i4
ANT 1
ANT 2
ON
1234
9
8
7
POS
COM
DATA
6
5
4
3
2
1
