118 CS175-275-575-875 Installation Guide
20 CS507 OUPUT EXPANDER BOARD
The CS507 is an auxiliary module used to expand the capabilities of the CSx75 control
panel with the following features:
•
A microprocessor controlled 2-relay, five open collector expander.
•
Two separate normally open and normally closed relay contacts for a variety of
applications, including access control, home control/automation, wireless interfaces
and security functions.
• Five low current trigger output (outputs 1, 2, 3, 4, 5).
•
Up to eight modules can be connected to the CSx75 control panel.
•
It can be programmed to activate for an event in any or all partitions, depending on
whether the control panel supports partitions.
• Each relay can be programmed to follow up to eight different schedules to activate the
relay during the on time, or to be used in conjunction with another programming option
to create time zones.
•
An optional tamper switch and auxiliary power terminal making it ideal for use in a
remote location.

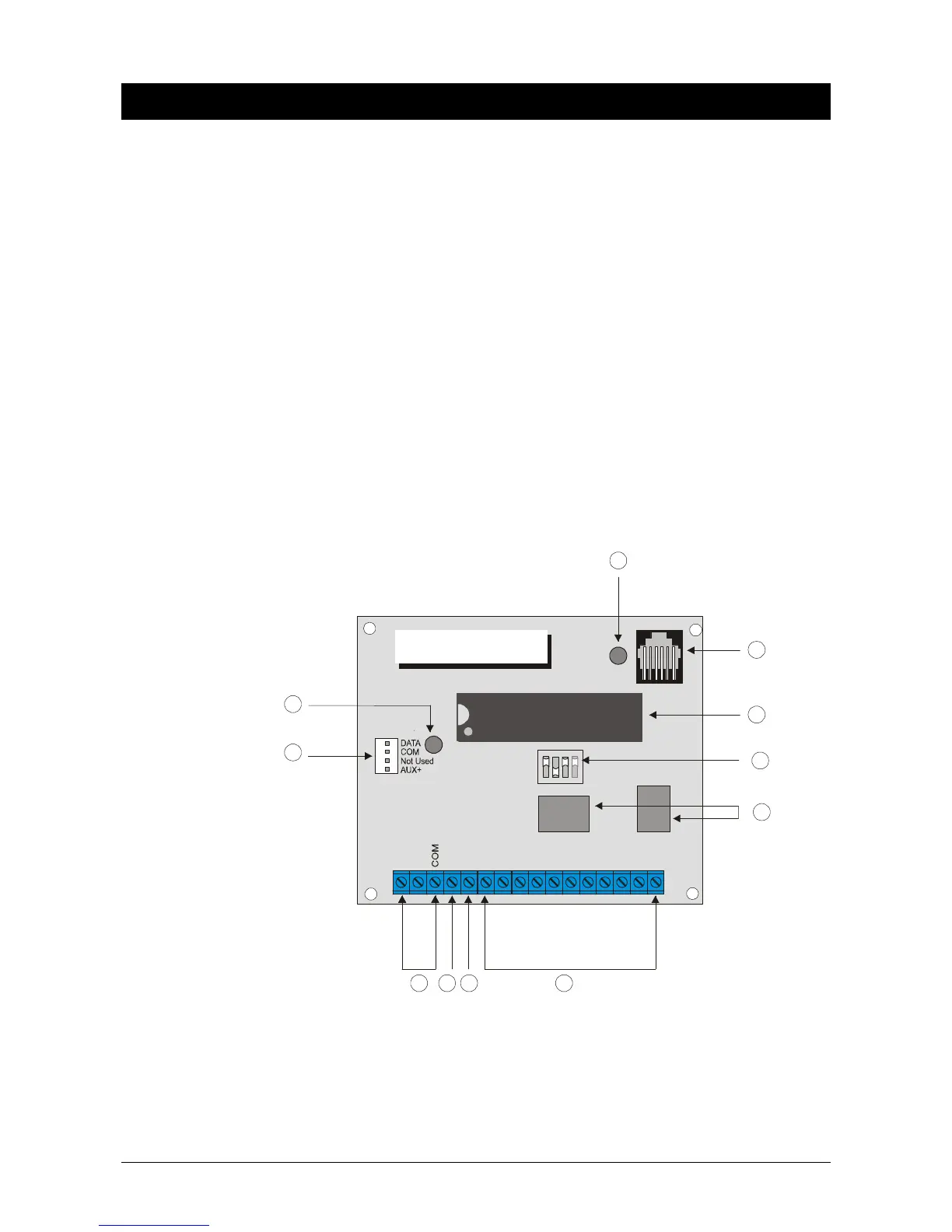

1
Form C (SPDT) relay
connections (2 sets ) +
five Open Collectors
5
Additional keypad bus
connection
9
Processor
2
Tamper connection
6
Supervision LED
10
DIP switches (four
positions)
U1
J8
CS507
AUX+
VOUT TAM
OUT3
ON
1234
J1
Rl1
Rl2
OUT1
OUT4 OUT2 OUT5
R6C R6NC R7NC DATA R7C R6NO R7NO
8
1
5
6
234
7
9
10
11
DS2
DS 1
