System Control
ARM DDI 0363G Copyright © 2006-2011 ARM Limited. All rights reserved. 4-73
ID073015 Non-Confidential

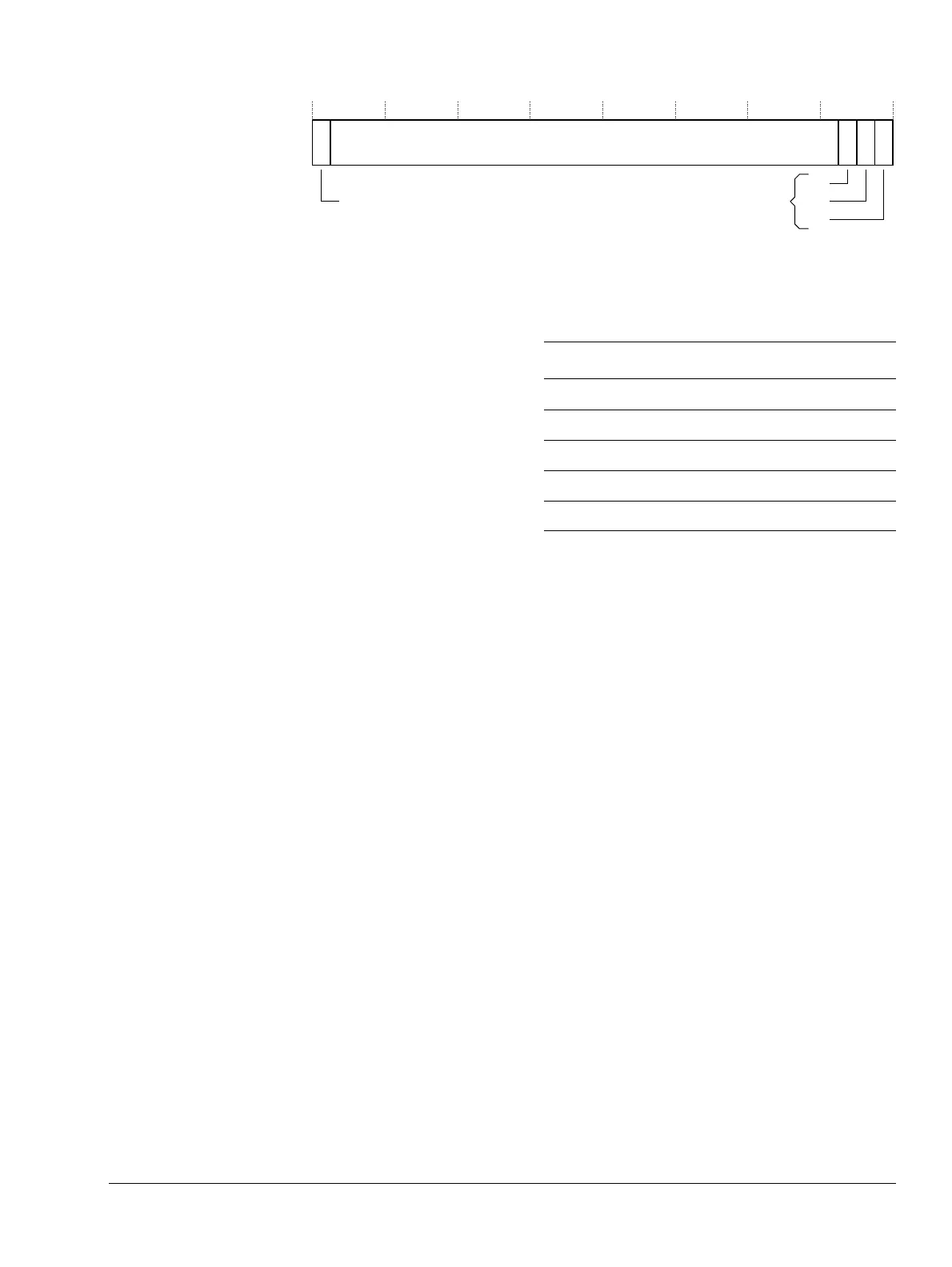

Figure 4-49 nVAL Reset Enable Clear Register bit assignments
Table 4-50 shows the nVAL Reset Enable Clear Register bit assignments.
To access the nVAL Reset Enable Clear Register, read or write CP15 with:
MRC p15, 0, <Rd>, c15, c1, 6 ; Read nVAL Reset Enable Clear Register
MCR p15, 0, <Rd>, c15, c1, 6 ; Write nVAL Reset Enable Clear Register
On reads, this register returns the current setting. On writes, overflow reset requests that are
enabled can be disabled by writing a 1 to the appropriate bits.
For more information of how to enable reset requests on counter overflows, and how the
requests are signaled, see c15, nVAL Reset Enable Set Register on page 4-68.
c15, VAL Debug Request Enable Clear Register
The VAL Debug Request Enable Clear Register characteristics are:
Purpose Disables overflow debug requests from any of the PMXEVCNTR
Registers, PMXEVCNTR0-PMXEVCNTR2, and PMCCNTR, that are
enabled.
Usage constraints The VAL Debug Request Enable Clear Register is:
• A read/write register.
• Always accessible in Privileged mode. The PMUSERENR Register
determines access in User mode, see c9, User Enable Register on
page 6-15.
Configurations Available in all processor configurations.
Attributes See Table 4-51 on page 4-74.
Figure 4-50 on page 4-74 shows the VAL Debug Request Enable Clear Register bit
assignments.
C
31 3210
Reserved
P2
P1
P0
Performance monitor counter overflow
reset request disables
Cycle count overflow
reset request disable
Table 4-50 nVAL Reset Enable Clear Register bit assignments
Bits Name Function
[31] C PMCCNTR overflow reset request
[30:3] - UNP or SBZP
[2] P2 PMC2 overflow reset request
[1] P1 PMC1 overflow reset request
[0] P0 PMC0 overflow reset request
